Ultrasonic Thickness Gauge MT200/Corrosion Gauge/Precision Gauge Measure Wide Range Of Material
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
MT200
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100% Original Authentic SM8237 Hand-held Digital Gasoline Engine Tachometer Speed RPM Tester ThermometerUS$ 125 - 155MOQ: 1 Piece -
AT-136PC Digital Hand Held Tachometer For Rotative Velocity , Photo Tach / Contact TachUS$ 138 - 182MOQ: 1 Piece
-
AT-135A Rechargeable Digital Stroboscope For Rotative Velocity , Non ContactUS$ 198 - 248MOQ: 1 Piece
-
Vibration Meter VICTOR VC63US$ 400 - 430MOQ: 1 Piece
-
100% Authentic Victor VC63A 3 1/2 Vibrometer,Auto Range Pocket Vibration MeterUS$ 365 - 390MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Graigar
Model Number
MT200

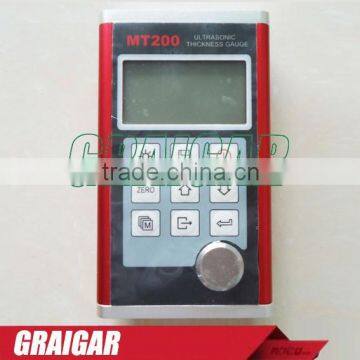

Ultrasonic Thickness Gauge MT200/Corrosion Gauge/Precision Gauge Measure Wide Range Of Material
FEATURES
Four transducer models.
Probe-Zero function, Sound-Velocity-Calibration function.
Two-Point Calibration function.
Two work modes: Single point mode and Scan mode.
Coupling status indicator showing the coupling status.
Auto sleep and auto power off function to conserve battery life.
Optional software to process the memory data on the PC.
Optional thermal mini-printer to print the measured data via RS232 port.
SPECIFICATION
Measuring Range:0.75~300mm (in Steel).
SoundVelocity Range: 1000~9999 m/s.
Resolution:0.1/0.01mm(selectable).
Accuracy: ±(0.5%Thickness+0.04)mm
Units: Metric/English unit selectable.
Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
Memory for 20 files (up to 99 values for each file) of stored values.
Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
Power Supply:Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).
Communication:RS232 serial port.
Case:Extruded aluminum body suitable for use under poor working conditions.
CONFIGURATION
|
No
|
Item
|
Quantity
|
Note
|
|
|
Standard Configuration
|
1
|
Main body
|
1
|
|
|
2
|
Transducer
|
1
|
Model: N05/90°
|
|
|
3
|
Couplant Bottle
|
1
|
|
|
|
4
|
Instrument Case
|
1
|
|
|
|
5
|
Screwdriver
|
1
|
|
|
|
6
|
Alkaline battery
|
2 |
AA size
|
|
|
7
|
Operating Manual
|
1
|
||
|
8
|
Warranty Card
|
1
|
|
|
|
Optional Configuration
|
9
|
Transducer: N02
|
|
|
|
10
|
Transducer: N07
|
|
||
|
11
|
Transducer: HT5
|
|
||
|
12
|
Mini thermal printer
|
1
|
|
|
|
13
|
Print cable
|
1
|
|
|
|
14
|
DataPro for Thickness Gauge
|
1
|
For use on the PC
|
|
|
15
|
Communication Cable
|
1
|
|
APPENDIX A: TRANSDUCER SELECTION
| Model |
Freq
MHZ
|
Diam
mm
|
Measuring Range | Lower limit | Description |
| N02 | 2.5 | 14 |
3.0mm~300.0mm(In Steel)
40mm (in Gray Cast Iron HT200)
|
20 | for thick, highly attenuating, or highly scattering materials |
| N05 | 5 | 10 | 1.2mm~230.0mm(In Steel) | Φ20mm×3.0mm | Normal Measurement |
N05/90° |
5 | 10 | 1.2mm~230.0mm(In Steel) | Φ20mm×3.0mm | Normal Measurement |
| N07 | 7 | 6 |
0.75mm~80.0mm
(In Steel)
|
Φ15mm×2.0mm | For thin pipe wall or small curvature pipe wall measurement |
| HT5 | 5 | 12 | 3~200mm (In Steel) | 30 | For high temperature (lower than 300°C) measurement. |
APPENDIX B: SOUND VELOCITY IN DIFFERENT MATERIALS
| Material | Sound Velocity |
|
In/us |
m/s |
|
Aluminum |
0.250 |
6340-6400 |
Steel, common |
0.233 |
5920 |
Steel, stainless |
0.226 |
5740 |
Brass |
0.173 |
4399 |
Copper |
0.186 |
4720 |
| Iron | 0.233 |
5930 |
Cast Iron |
0.173-0.229 |
4400-5820 |
Lead |
0.094 |
2400 |
Nylon |
0.105 |
2680 |
Silver |
0.142 |
3607 |
Gold |
0.128 |
3251 |
Zinc |
0.164 |
4170 |
Titanium |
0.236 |
5990 |
Tin |
0.117 |
2960 |
Epoxy resin |
0.100 |
2540 |
Ice |
0.157 |
3988 |
Nickel |
0.222 |
5639 |
Plexiglass |
0.106 |
2692 |
Polystyrene |
0.092 |
2337 |
Porcelain |
0.230 |
5842 |
PVC |
0.094 |
2388 |
Quartz glass |
0.222 |
5639 |
Rubber, vulcanized |
0.091 |
2311 |
Teflon |
0.056 |
1422 |
Water |
0.058 |
|
(Julie Zhou)
