Home > Electrical & Electronics > Sensor > Pressure Sensor > CS-2 TYPE LOAD CELL Sensors Load Sensor Used for Transforming the Hoist Into Pendent Weigher.

CS-2 TYPE LOAD CELL Sensors Load Sensor Used for Transforming the Hoist Into Pendent Weigher.

US$ 100 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Model Number:

cs-2

Usage:

Level Sensor

Contact Supplier Request Quote Chat Now

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Model Number cs-2

Usage Level Sensor

Theory Resistance Sensor

Output Digital Sensor

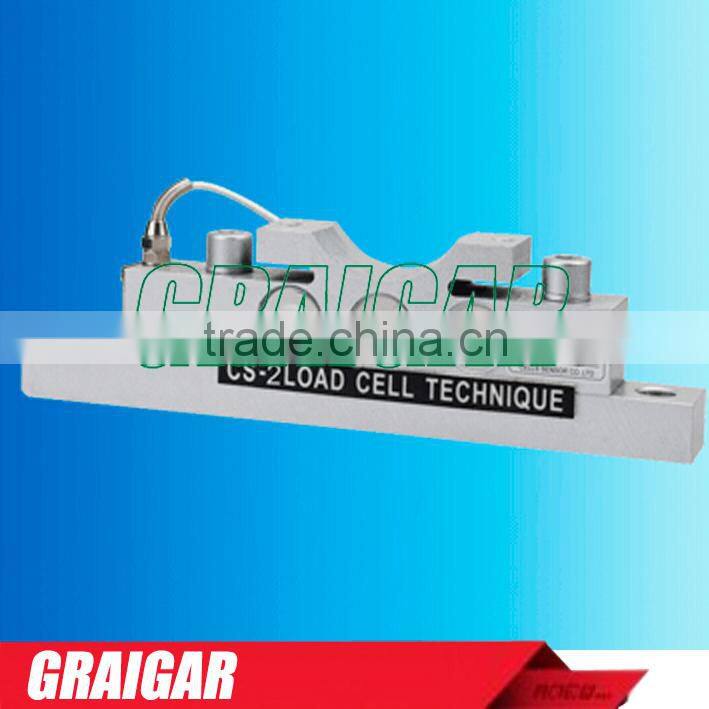

CS-2 TYPE LOAD CELL Sensors load sensor used for transforming the hoist into pendent weigher.

Materials: Alloy steel

FUNCTION CHARACTERISTICS

>Special sensors used for transforming the hoist into pendent weigher.
>Fish back load-bearing surface to ensure weighing accuracy in case the axle bends at load or the weigher isn't well levelled.
>Supported at the two ends of the fixing-sliding axle, the pendent electronic weigher fitted with this sensor can achieve an actual accuracy up to 0.1-0.3% Strictly sealed. Stable performance.

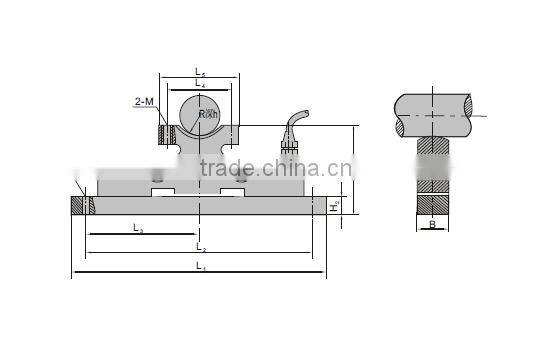

configuration:

Rated loadsize(mm)	L1	L2	L3	L4	L5	B	H1	H2	RLH	2-Φ	2-M
2,3t	344	304	133	110	130	40	83	25	29L17	17.5	10
5,6,8t	344	304	133	110	130	40	95	30	41L20	17.5	10
10t	344	304	133	110	130	40	110	30	41L24	17.5	10
15,20t	442	402	184	145	165	46	149	35	56L30	21	10
25,30,40t	442	402	189	145	165	46	165	35	59L30	21	12

R is to be decided to user's requirement

Techincal Parameter

Sensitivity	1.5~2.0mv/v
Non linearity	0.05%FS
Hysteresis	0.05%FS
Repeatability	±0.03%FS
Creep	±0.05%FS/30min
Creep recovery	±0.05%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.03~0.05%FS/10℃
Rated output temperature coefficient	0.03~0.05%FS10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5~15V
Safe temperature range	-30~+60℃
Safe overload	130%FS
Defend grade	IP66
Method of connecting wire	input:Red(+)Yellow(-) output:Blue(+)White(-)
