Home > Electrical & Electronics > Sensor > Pressure Sensor > CS-13 TYPE LOAD CELL Especially Good for Electronic Belt Scale.hopper Scale. Platform Scale and Ground Weigher.
CS-13 TYPE LOAD CELL Especially Good for Electronic Belt Scale.hopper Scale. Platform Scale and Ground Weigher.
US$ 50 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
cs-13
Usage:
Pressure Sensor
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CS-12 TYPE LOAD CELL Extensively Applied in the Meterage Measurement Such as Mine , Iron and Steel.US$ 90 - 500MOQ: 1 Piece -
CS-11 TYPE LOAD CELL Can be Directly Fitted at Coincidence to the Tracks to Weigh the Materials.US$ 50 - 500MOQ: 1 Piece
-
CS-14 TYPE LOAD CELL Apply to Various Force Measurement by Platform Balance, Belt Balance, Hopper ScaleUS$ 50 - 500MOQ: 1 Piece
-
CS-3 TYPE LOAD CELL Sensors Can be Used in Various Electronic Weighers for Vehicles. Material Hopper WeighersUS$ 50 - 200MOQ: 1 Piece
-
CS-2 TYPE LOAD CELL Sensors Load Sensor Used for Transforming the Hoist Into Pendent Weigher.US$ 100 - 200MOQ: 1 Piece
Place of Origin
Guangdong, China
Model Number
cs-13
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Digital Sensor
CS-13 TYPE LOAD CELL especially good for electronic belt scale.hopper scale. platform scale and ground weigher.
FUNCTION CHARACTERISTICS
>Cantilever beam structure. multi-kind loading forms for choice.
>Low elevation. robust structure. good resistivity to fatigue and load laterality.
>Especially good for electronic belt scale.hopper scale. platform scale and ground
weigher.

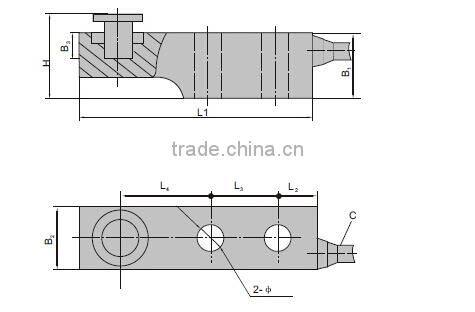

configuration:
| Rated Load | L1 | L2 | L3 | L4 | B1 | B2 | B3 | H | Φ | P(load) | |
| 1.2t | D | 170 | 26 | 50 | 77 | 42 | 36 | - | 2-Φ16.5 | M-12 | |
| D | 203 | 19 | 64 | 98 | 43 | 37 | 30 | 57.9 | 2-Φ13 | Φ16-Φ32 | |
| 3t | D | 202 | 28 | 57 | 100 | 55 | 40 | - | 2-Φ16.5 | M-16 | |
| D | 203 | 19 | 64 | 98 | 43 | 37 | 30 | 57.9 | 2-Φ13 | Φ16-Φ32 | |
| 5t | D | 235 | 23 | 66 | 124 | 52 | 48 | 30 | 78.7 | 2-Φ21 | Φ22-Φ38 |
| 10t | D | 279 | 25 | 82 | 140 | 67 | 60 | 20 | 127.7 | 2-Φ28 | Φ32-Φ48 |
| 20t | D | 318 | 32 | 89 | 159 | 82.5 | 70 | 24 | 143.7 | 2-Φ34 | Φ32-Φ54 |
Techincal Parameter
| Sensitivity | 1.5~2.0mv/v |
| Non linearity | 0.02~±0.05%FS |
| Hysteresis | 0.02~±0.05%FS |
| Repeatability | 0.02~0.03%FS |
| Creep | ±0.02~±0.05%FS/30min |
| Creep recovery | ±0.02~±0.05%FS/30min |
| Zero balance | 2%FS |
| Zero temperature coefficient | 0.03~0.05%FS10℃ |
| Rated output temperature coefficient | 0.03~0.05%FS10℃ |
| Output resistance | 350Ω |
| Insulation resistance | ≥3000MΩ |
| Supply Voltage | 5~15V |
| Safe temperature range | -30~+60℃ |
| Safe overload | 130%FS |
| Defend grade | IP67 |
| Method of connecting wire | input:Red(+)Yellow(-) output:Blue(+)White(-) |
