Specifications
Brinell Hardness Tester Rockwell Hardness Tester Vickers Hardness Tester Leeb Hardness Tester hardness gauge durometer XHRD-150

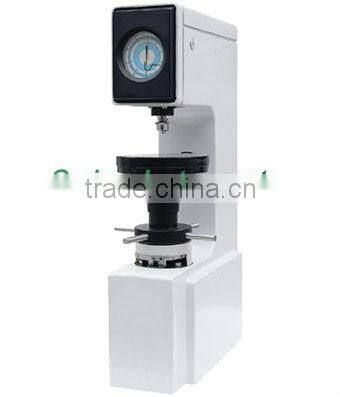

XHRD-150 Motor-Driven Plastic Rockwell Hardness Tester
XHRD-150 Motor-Driven Plastic Rockwell Hardness Tester is suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials.
Feature & Use:
Frictionless loading shaft, high precision testing force
Automatic testing process, no human operating error
Precision conforms to the Standards of JB/T 7409
It's suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials.
Specifications
Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 150mm
Depth of throat: 135mm
Min. scale value: 0.5HR
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 505 x 250 x 700mm (20x9.9x27.6 inch)
Weight: approx. 70kg / 154lb
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Steel ball penetrator: 1/8", 1/4", 1/2", 1 pc. each
Plastic Rockwell standardized block: 4 pcs.
Send Inquiry to This Supplier
