KH200 Leeb Hardness Tester Metal Hardness Gauge

Name: KH200 Leeb Hardness Tester Metal Hardness Gauge
Brand: Graigar
Price: USD $440 - 480 / Piece

FOB Price

USD $440 - $480 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Graigar

Model Number:

KH200

Product Description

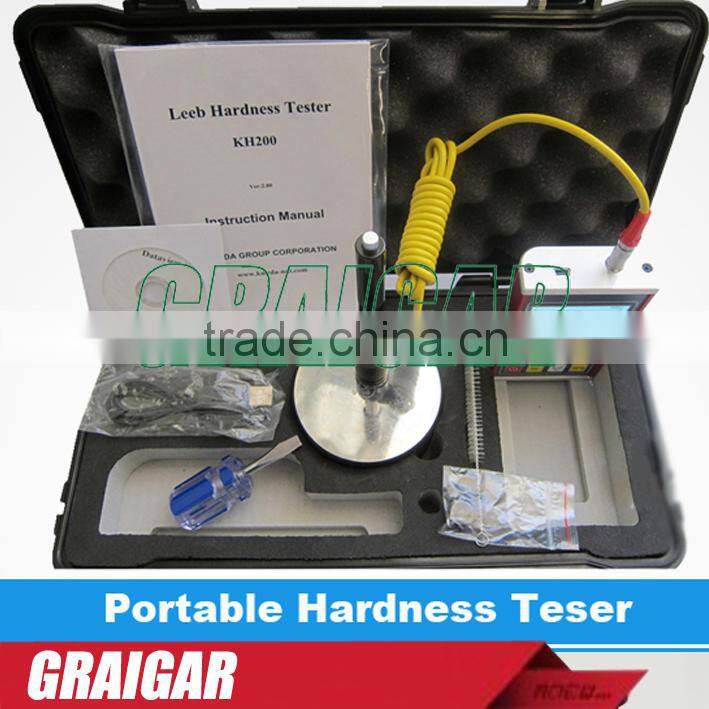

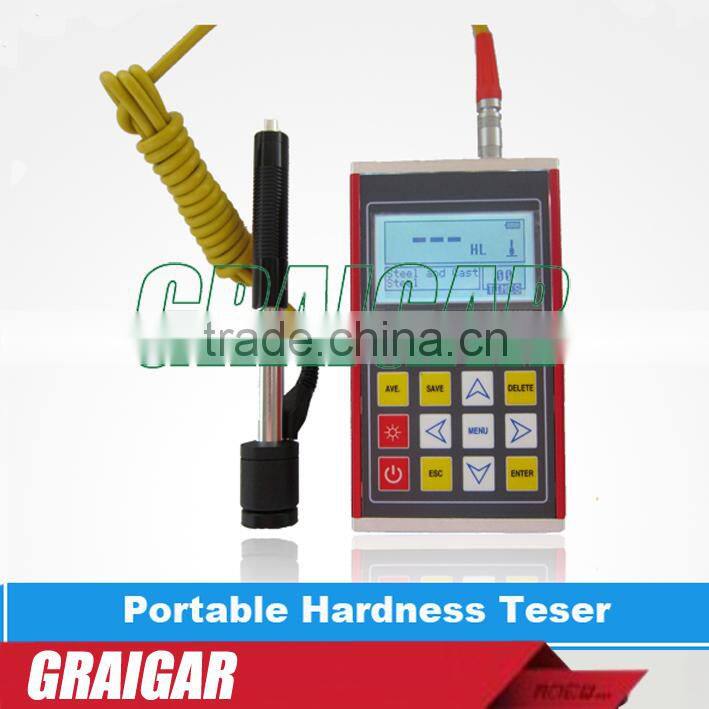

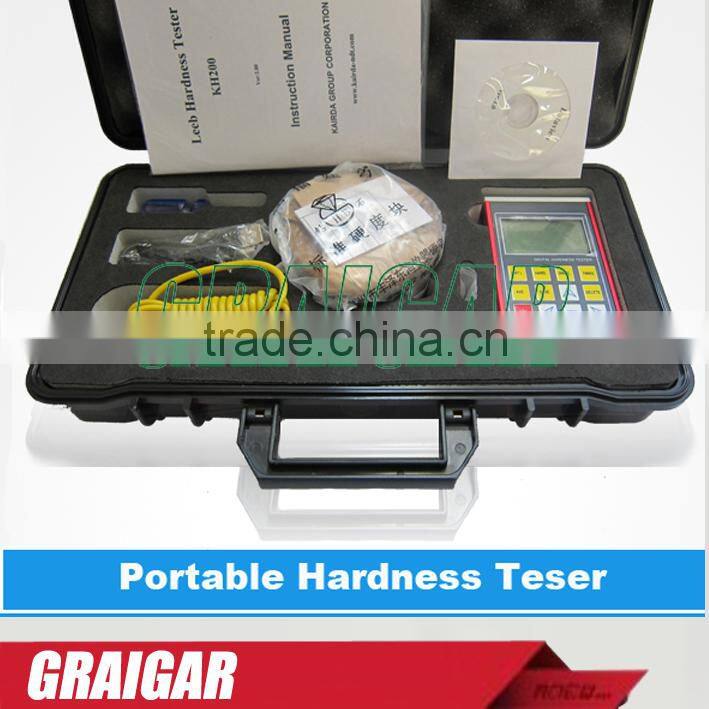

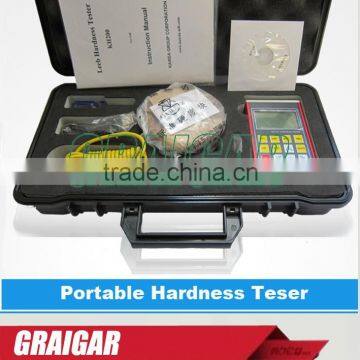

KH200 Leeb Hardness Tester Metal Hardness Gauge

1.LCD display of 128×64 matrix is used.

2.Using the D high precision impact device

3.Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).

4.English displaying and menu operating, the operation is easy and

convenient.

5.Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability.

6.With USB2.0 interface, multiple communication modes are adopted to

meet customized requirements of various users.

7.Equipped with a data processing software, through the USB interface, can exchange data with computer printing and parameter setting

8.Equipped with 7 types of impact devices which need not to be

recalibrated when changing them, the system can identify the type of

impact device automatically.

9.Max 600 groups(impact times:32~1)of data can be stored at internal

non volatile data storage.

10.Upper and lower limit of hardness can be preset; When the tested value

exceeds the limits, alarm will send out automatically to make convenient

for the requirements of batch measurements.

11.Back light display has been used to make convenient for the use in poor

light.

12.Test values software calibration function.

13.Material of “cast steel” is added; HB values can be read out directly

when D/DC impact device is used to measure “cast steel” work piece.

14.Printer be separated from main unit and copies of testing results can be

printed as required.

15.Power is two of AA battery. Continuous working period: approx. 200 h

(no back light on).

16.Software of PC can be installed according to the requirements of user,

the function will be more powerful to satisfy the more strict demands of

quality control and management.

17.Failure analysis of pressure vessel, steam turbo-generator set and other

equipment.

18.Narrow testing space where work piece installed.

Specifications:

Measuring Range	HLD(170-960) (170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV,(30~110)HS
Impact Directions	Up,down,horizontal,slanting up,slanting down
Measuring materials	Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Hardness scales	HL, HB, HRB, HRC, HRA, HV,HS.
Display	128*64 digital matrix LCD
Memory	600group(32 every group)
Work voltage	3V( 2 AA alkaline batteries)
Interface port	RS232
Dimensions	125mm71mm27mm
Weight	0.3KG
Continuous working period	200 hours (with backlight off)

Applicable materials:

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
