Specifications
1.Polarization Beamsplitter Material: BK7, H-K9L ,UV fused silica,Corning7980, etc
2.Dimension Tolerance: +0.0/-0.1mm
3.Surface Quality: 40-20
4.Beam Deviation: <3 arc
| Material | Grade A Optical glass |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Clear Aperture | >90% |
| Parallelism | <1 arc minute |
| Surface Quality | 60/40 scratch and dig |
| Flatness | <λ/4 @ 632.8nm per 25mm |
| Chamfer | Protected <0.5mmx45deg |
| T/R |
50/50±5%, for natural light T=(Ts+Tp)/2, R=(Rs+Rp)/2
|
| Coating(AOI=45deg) | S1: Partial reflectance coating |
| S2: AR coating | |
| Damage Threshold | >1J/cm2, 20ns, 20Hz, 1064nm |
| Beam Deviation | <20 arc seconds |

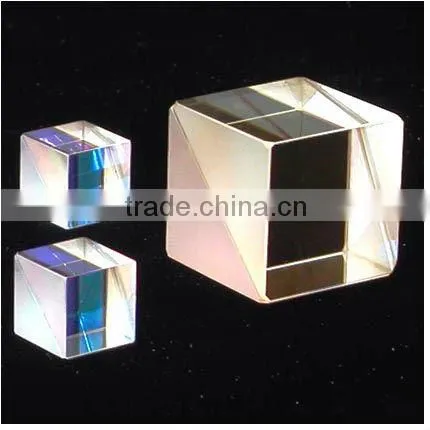

Polarization Cube Beamsplitter
Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal, linearly, polarized components.S-polarized light is reflected at a 90deg, Angle while P-polarized light is transmitted.Each beamsplitter consists of a pair of prrecision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms
1. Overview
Beamsplitter is also a kind of filter,it is used to split or combine laser beam. However Polarization BeamSplitters are used to split or combine two perpendicular polarization laser beam. The performance of beam splitter depends on the coating specifications. For the coating curves of each types of beamsplitters, please refer to Coating section for more information.
To select a suitable beamsplitter, you need to consider the type, coating, transmission range and damage threshold.
2.Types
Plate Beamsplitters
Cube Beamsplitters
Panta Beamsplitters Cubes
3.Application
Laser Systems
Flrorescence Application
Imaging System
Life Science etc
Related products :
about Shandong Yanggu Constant Crystal Optics Inc.
We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
Welcome to China and visit our factory. Hope that our cooperation ever lasting!
our production engineering :
packing :
Overseas exhibition :
Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 10 years
Q2: Where is your factory located ? How can i visit there ?
A:It is located in North-South 1st Road ,xiangguang Economic Development Zone,Yanggu county,Shandong Province,China
Welcome to visit our factory anytime
Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Q4: What's your MOQ?
A:
<![if !supportLists]>(1) <![endif]> For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 10pcs-20pcs.
Q5: Can i get the sample to test before the mass production ?
Sure ,we would like to offer the sample for you to test our quality before large order
Q6: How to pay?
A: T/T, Paypal, Western Union, Secure payment, Credit card and Assurance payment on Alibaba and etc..
Q7: What's the delivery time?
A:
For inventory: the delivery is 3 workdays after you place the order.
For customized products: the delivery is 2 or 4 workweeks after you place the order.
Q8: How to ensure the safety of payment?
A: Hengjing is the gold supplier of aibaba for more than 4 years and supports Alibaba Trade Assurance. We value our reputation in this field
