Home > Products > Disc Suspension Insulators for High Voltage Line > Disc Suspension Normal Type ( GB Class LXY-70) Glass Insulator

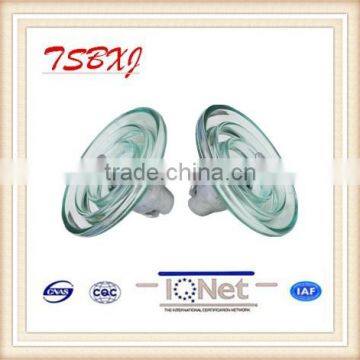

Disc Suspension Normal Type ( GB Class LXY-70) Glass Insulator
- 150000 Piece / Pieces per Month
- Shanghai shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | Best | |
| Model Number | LXY-70 | Type | Insulating Ceramics | |
| Material | Glass Ceramic |
Product Description
Type: LXP-70
Minimum mechanicatl failing load: 70kN
Unit Spacing(H): 146mm
Nominal Diameter (D): 255mm
Creepage Distance (L) 320mm
Power frequency withstand voltage for unit :150kV/40kV
Lighting impulse withstand voltage for unit: 420kV/100kV
Power frequency puncture voltage: 130kV
Radio influence voltage :50uV
net weight per unit :3.6Kg
Q1: What's the payment term ?
A. We accept TT,30% deposit and 70% balance agaisnt copy of B/L .
Q2:Could you do our design and quote?
A: Yes, please provide drawing with parameters or detailed specification, then we can help to find a better solution and communicate with you.
Q3: Can I get sample ?
A: Yes, sample could be sent off within 2-3day after confirm. Normally it will reach to you in one week.
Q4: OEM/ODM is acceptable?
A: Yes, both are acceptable.
Q5: How about the shippment?
A:Generally within 45days. It depends on the order quantity.
