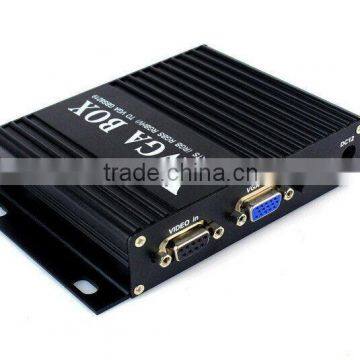

Factory direct supply! CGA/EGA/RGB/RGBS/RGBHV to VGA Industrial Monitor Converter.
Description:
The manufactory is in the industrial equipment under long-term maintenance and reconstruction of the monitors& display systems on the lessons learned to gather requirements and feedback of many customers, after many years of development and testing, based on the strength in GBS 8218 launch of innovative industrial monitor converter - GBS 8219, it achieved Industrial video signal(RGB/CGA/VGA to VGA) conversion fully automated operation, will give you the maintenance and replacement of industrial display to bring about affordable price and convenient.
Industrial equipment video converter,Replace bad and old industrial monitor,Use LCD monitor,Industrial equipment video image.
Details:

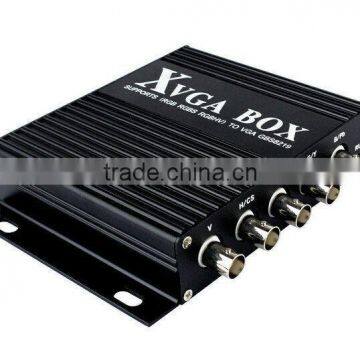

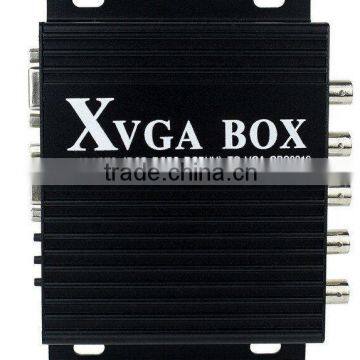

Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display, Specialized Display of imported PSP, Bowling and other recreational facilities, etc.
Input |
Signals |
MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
Interface |
5BNC, 9pin,3pin,6pin,14pin,20pin,25pin |
|
Horizontal Frequency Rate(H) |
12kHz to 40kHz automatically recognized |
|
Output |
Supports |
D-15pin standard VGA/SVGA,Resolution:800*600/60HZ, 640*480/60hz |
Interface |
D-Sub 15 PIN standard VGA port |
|
Power |
DC 12V 1.0A |
|
Note: 1.YPbPr = YUV 2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized. 3.Support RGB and YPbPr 4.Support Interlaced Scanning and Line by Line Scanning. 5.Support Vertical Resolution from line200 to line 600 automatically recognized. 6.Support variable Horizontal Resolution automatically recognized. 7.Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized 8.Output resolution: 800*600/60Hz standard VGA or custom-resolution.
Features

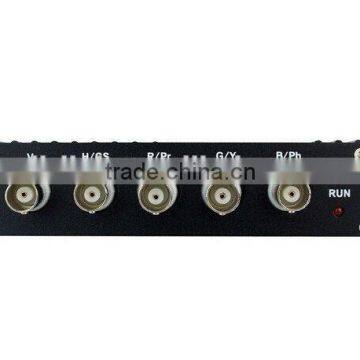

BNC |
Input Signal |
Connection image |
Pb,Y,Pr |
YPbPr input signal (right image) Interface: three BNC slot, connected to the corresponding Pb, Y, Pr interface, then Y monochrome port. |
Figure 4.2 Analog 3BNC (YPBPR) Input. |
R,G,B |
RGB Sog input signal (right image) Interface: three BNC slot, connected to the corresponding R, G, B slot, then G monochrome port. |
Figure 4.3 Analog 3BNC (RGB Sog) Input. |
R,G,B,S |
RGBS CS Composite Sync (right image) Interfaces: 4 BNC slot, connected to the corresponding R, G, B, S I, monochrome then G, S I |
Figure 4.4 Analog 4BNC (RGBS CS) Input. |
R,G,B,H,V |
RGBHV separate sync (right image) Interface: 5 BNC port, connected to the corresponding R, G, B, H, V I, monochrome then G, H, V I |
Figure 4.5 Analog 5BNC (RGBHV) Input. |
