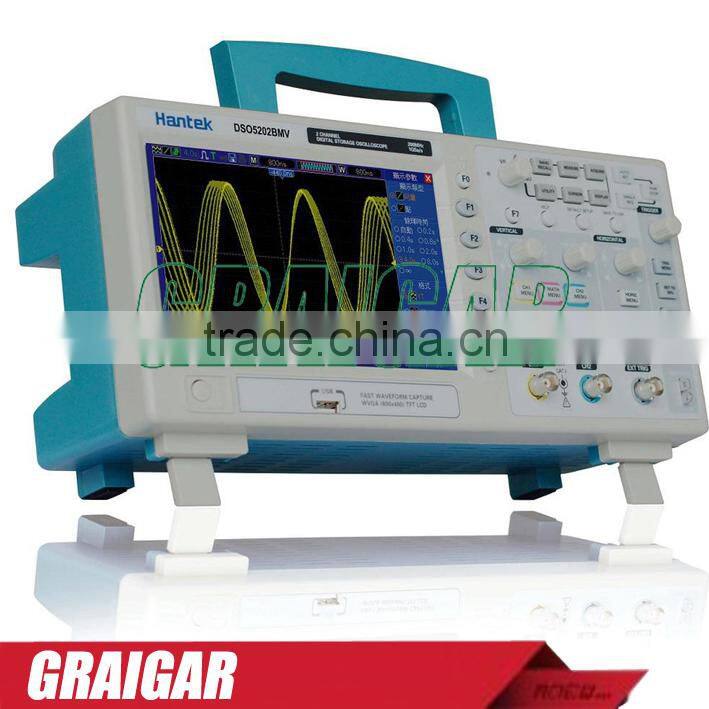

DSO5202BMV Hantek Digital Storage Oscilloscope,2channels 200MHz 1GSa/s, Built-in Video Help, Built-in 2GB flash memory card
USD $510 - $600
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hantek | Model Number: | DSO5202bmv |
Product Description
DSO5202BMV Hantek Digital Storage Oscilloscope,2channels 200MHz 1GSa/s, Built-in Video Help, Built-in 2GB flash memory card
PRODUCT DESCRIPTION
Features:
• 200/100/60MHz bandwidths
•1GSa/s Real Time sample rate
• Large (7.0-inch) color display,WVGA(800x480)
• Record length up to 2M
• Built-in Video Help
• Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
• USB host and device connectivity, standard
• Multiple automatic measurements
• Four math functions, including FFTs standard
• Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
• USB host and device connectivity, standard
• Multiple automatic measurements
• Four math functions, including FFTs standard
• Provides software for PC real-time analysis
Specifications:
Model | DSO5202BMV | DSO5102BMV | DSO5062BMV |
Bandwidth | 200MHz | 100MHz | 60MHz |
Real-time Sample Rate | 1GSa/s | ||
Equivalent Sample Rate | 25GSa/s | ||
Record Length(Sample Points) | Single-channel: Maximum 2M; Dual-channel:Maximum 1M (4K,16K,40K optional) | ||
SEC/DIV Range | 4nS/div-40S/div (in a 2, 4, 8 sequence) | ||
Delay Time Accuracy | 500ps | ||
Vertical | |||
A/D Converter | 8-bit resolution, each channel sampled simultaneously | ||
VOLTS/DIV Range | 2mV/div~5V/div at input BNC | ||
Position Range | ±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div) | ||
Rise Time at BNC | ≤1.7ns | ≤3.5ns | ≤5.8ns |
DC Gain Accuracy | ±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div | ||
Trigger | |||
Trigger Sensitivity (Edge Trigger Type) | DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full EXT(Typical) 200mV from DC to 40MHz EXT/5(Typical) 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity | ||
Trigger Level Range | CH1,CH2: ±8 divisions from center of screen EXT: ±1.2V EXT/5: ±6V | ||
Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns) | CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen) EXT: ±(6% of setting + 40mV) EXT/5: ±(6% of setting + 200mV) | ||
Holdoff Range | 100ns-10s | ||
Trigger Type | |||
Edge | Trigger on the rising or falling edge | ||
Pulse Width | Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s | ||
Video | Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) | ||
Slope | Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s | ||
Overtime | from the rising or falling edge Set Time: 20-10s | ||
Alternate | Internal trigger on edge, pulse width, video or slope | ||
Measurement | |||
Cursors | Manual: The difference between voltage cursors ΔV; the difference between time cursors ΔT; 1/ΔT calculated by Hz. Tracing: The voltage and time at a waveform point | ||
Automatic | Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width | ||
Display | |||
Type | Right angle 7"TFT 16-digit color LCD | ||
Resolution | 800*480 dots | ||
Contrast | 16 gears, with the progress bar to show adjustment | ||
Interface | USB host and USB slave | ||
Power Supply | |||
Voltage | 100-120VACRMS(±10%),45Hz to 440Hz,CAT II 120-240VACRMS(±10%),45Hz to 66Hz,CAT II | ||
Power | <30W | ||
Fuse | 2A, T rating, 250V | ||
Mechanical | |||
Size | Length: 313mm Width: 108mm Height: 142mm | ||
Weight | 2.08KG (exclusive of packing and accessories) |
Software:
Operating system: Windows 7, Windows NT, Windows 2000, Windows XP ,VISTA
