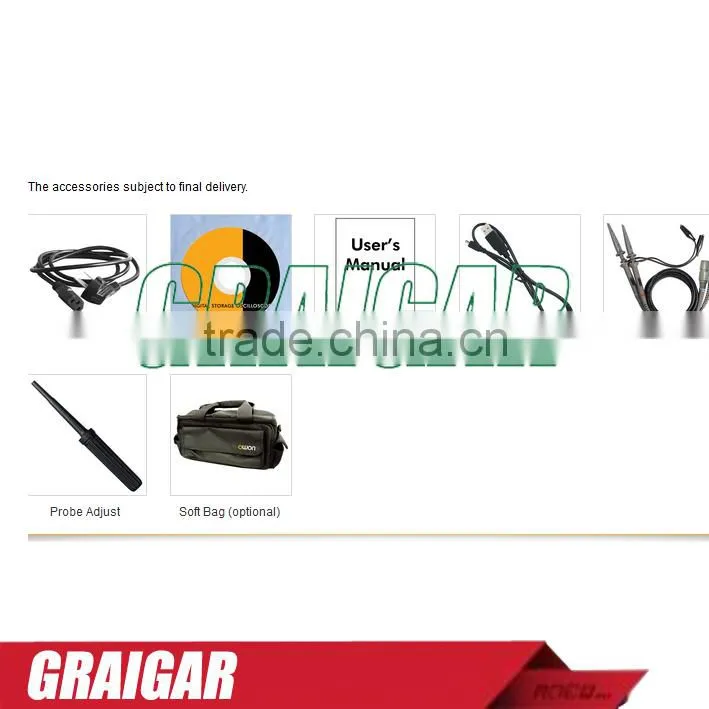

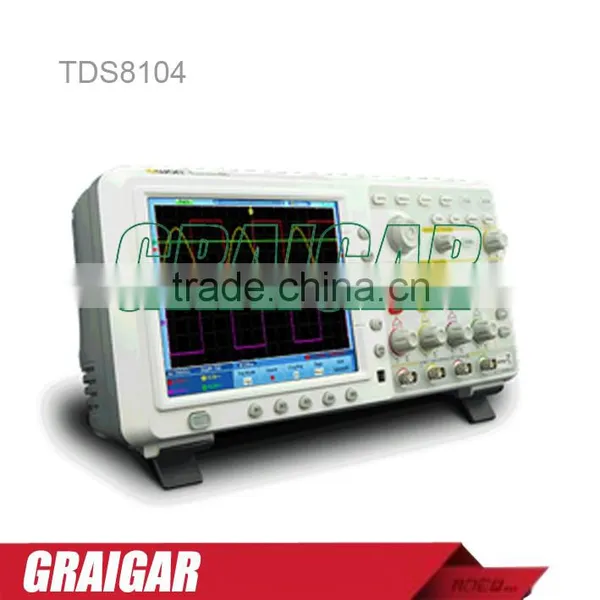

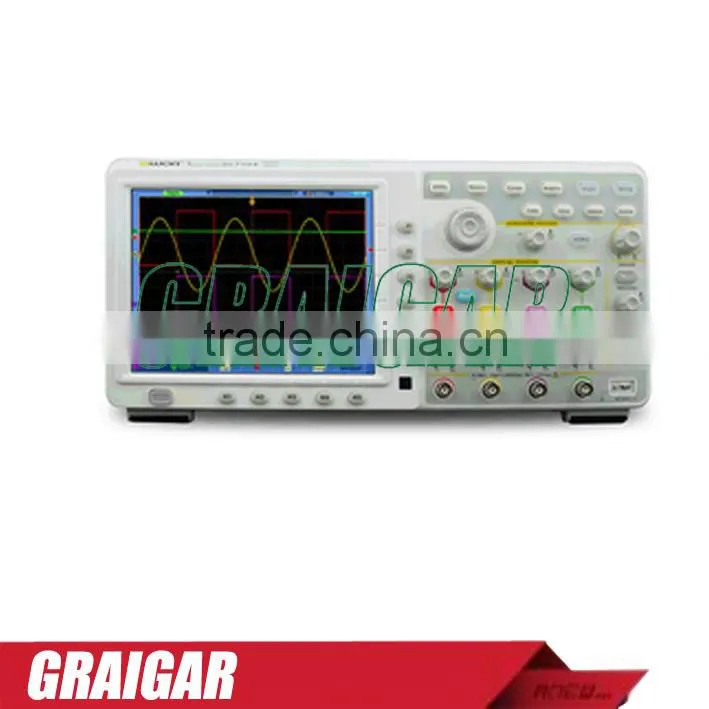

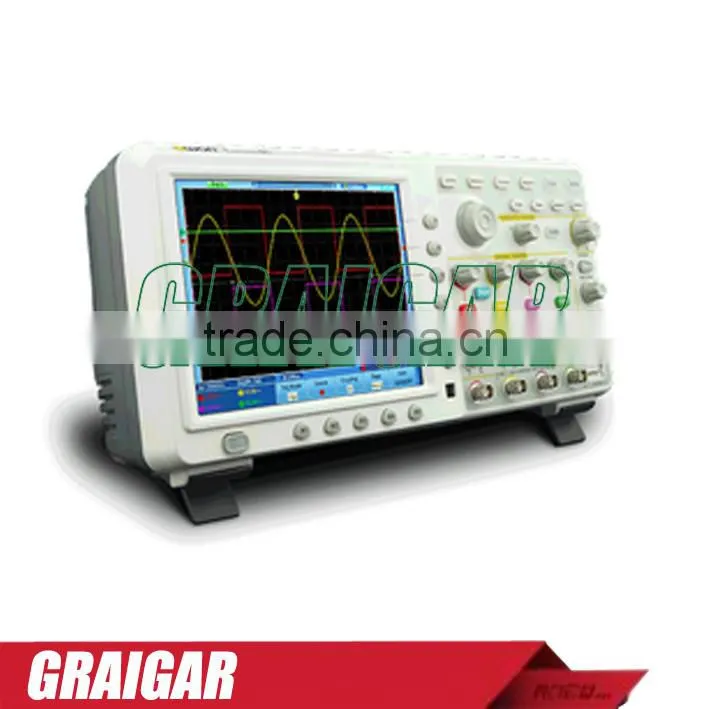

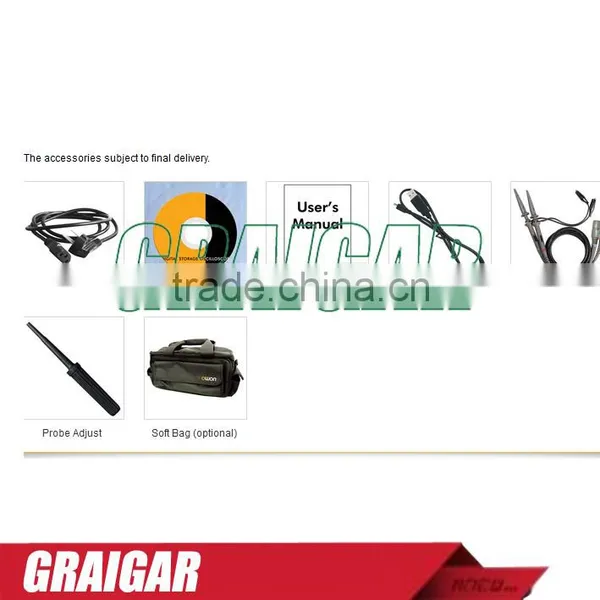

TDS8104 OWON TDS Series digital oscilloscope,100MHz and 2GS/s Sample Rate ,Touch-screen DSO,4 Channel,7.6M Record Length
OWON TDS Series digital oscilloscope
Product Series : Touch-screen DSO
Main Features
- Max 200MHz bandwidth, up to 2GS/s realtime sample rate
- 7.6M record length
- 50,000 wfms/s waveform capture rate
- waveform zooming (horizontal / vertical), and saving
- FFT points (length, and resolution variable)
- multi-window extension
- user-friendly voice warning
- 8 inch 800 x 600 pixels high def LCD
- multi- communication interface : USB, VGA, LAN
Application
electronic circuit debugging circuit testing
design and manufacture education and training
automobile maintenance and testing
Overview
Model No. |
Bandwidth |
Sample Rate |
Record Length |
Channel |
TDS7074 |
70MHz |
1GS/s |
7.6M |
4 |
TDS7104 |
100MHz |
1GS/s |
||
TDS8104 |
100MHz |
2GS/s |
||
TDS8204 |
200MHz |
2GS/s |
Specifications
Model |
TDS7074 |
TDS7104 |
TDS8104 |
TDS8204 |
|
Bandwidth |
70MHz |
100MHz |
200MHz |
||
Channel |
4 |
||||
Sample Rate |
1GS/s |
2GS/s |
|||
Waveform Capture Rate |
50,000 wfms/s |
||||
Display |
8" touch screen color LCD |
||||
Input Coupling |
DC, AC, and GND |
||||
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% |
||||
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
||||
Max Input Voltage |
1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) ; 50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK) |
||||
Channel Isolation |
50Hz 100:1 ; 10MHz:40:1 |
||||
Interpolation |
sin(x)/x |
||||
Record Length |
7.6M |
||||
Horizontal Scale (s/div) |
2ns/div - 100s/div, step by 1 - 2 - 5 |
||||
Interval (T) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
||||
Vertical Resolution (A/D) |
8 bits resolution (4 channels simultaneously) |
||||
Vertical Sensitivity |
2mV/div - 10V/div (at input) |
||||
Analog Bandwidth |
70MHz |
100MHz |
200MHz |
||
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
||||
Rise Time |
≤5ns |
≤3.5ns |
≤1.7n |
||
DC Accuracy |
±3% |
||||
Trigger Type |
Edge, Pulse, Video, Slope |
||||
Trigger Mode |
Auto, Normal, Single |
||||
Trigger Level Range |
±6 div from the screen center |
||||
Trigger level Accuracy (typical) |
±0.3 div |
||||
Line / Field Frequency (video) |
NTSC, PAL, and SECAM standard |
||||
Automatic Measurement |
Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, |
||||
Waveform Math |
, ×, ÷, FFT |
||||
Waveform Storage |
4 reference waveforms |
||||
Lissajous Figure |
Bandwidth |
full Bandwidth |
|||
Phase Difference |
±3 degrees |
||||
Cursor Measurement |
V, and T between cursors |
||||
Communication Port |

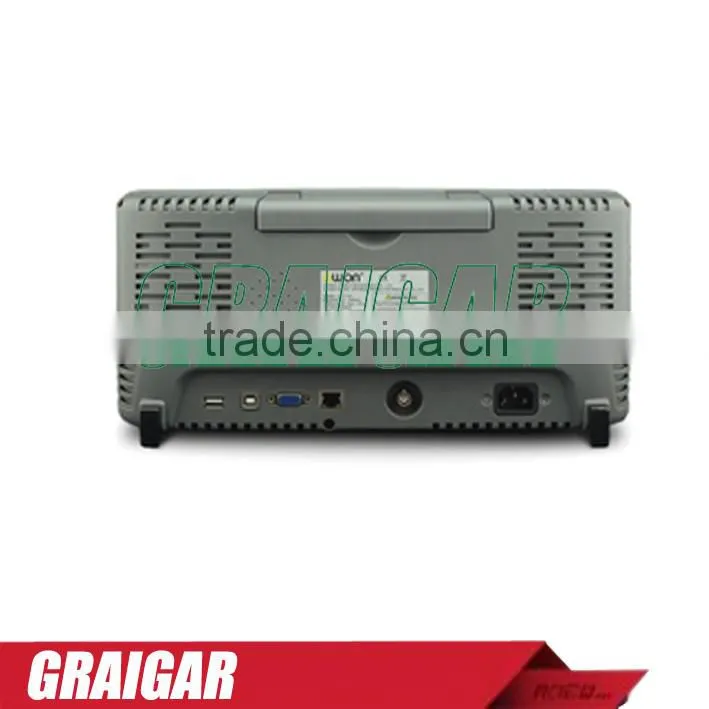

USB host, USB device, VGA, LAN,AUX |
||||
Power Supply |
100 - 240 V AC, 50/60Hz, CAT II |
||||
Dimension (W×H×D) |
380 × 180 × 115 (mm) |
||||
Weight (without package) |
1.5 kg |
||||
