Home > Consumer Electronics > Entertainment Electronics > Other Entertainment Electronics > Factory Direct Supply!CGA/EGA/YUV to VGA Game Converter Board Supports VGA Output 640*480,800*600,1024*768,1360*768

Factory Direct Supply!CGA/EGA/YUV to VGA Game Converter Board Supports VGA Output 640480,800600,1024768,1360768

Name: Factory Direct Supply!CGA/EGA/YUV to VGA Game Converter Board Supports VGA Output 640*480,800*600,1024*768,1360*768
Brand: DL-LINK
SKU: 130770407
Availability: InStock

Factory Direct Supply!CGA/EGA/YUV to VGA Game Converter Board Supports VGA Output 640*480,800*600,1024*768,1360*768 thumbnail-1

Factory Direct Supply!CGA/EGA/YUV to VGA Game Converter Board Supports VGA Output 640*480,800*600,1024*768,1360*768 photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

DL-LINK

Model Number:

HD9800, HD9800

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Dier Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name DL-LINK

Model Number HD9800, HD9800

Place of Origin Guangdong, China

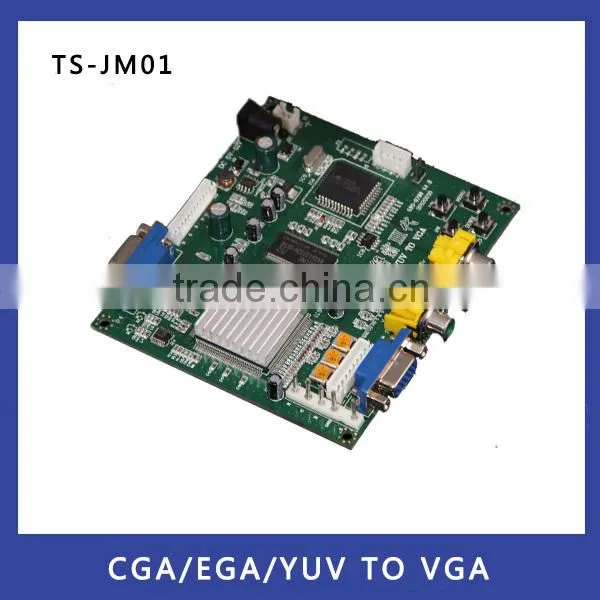

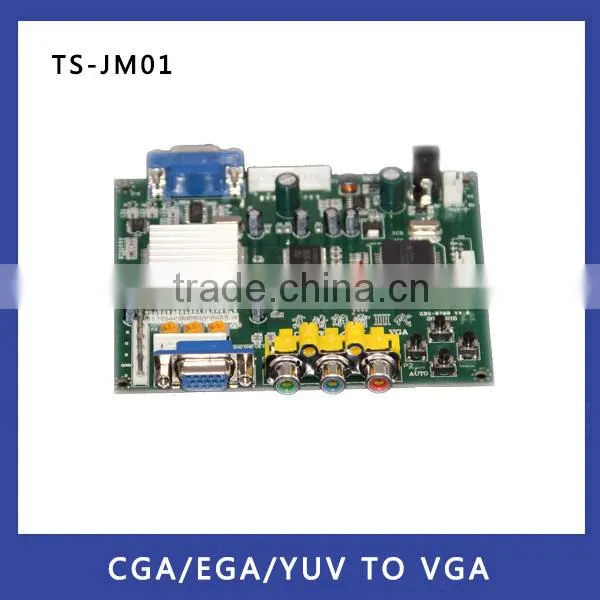

HD9800 CGA/EGA/YUV to VGA Game Converter Board

Description:

The game video high definition converter HD9800, it's professional of game convert. Support all games (Arcade game,Amusement, Play station,X box,wii...)convert to LCD monitor, PDP monitor... Auto scan CGA EGA YUV signal, VGA outputs, output high resolution signal.

- Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)

- CGA/EGA signal auto scan (15KHz, 24KHz, 31KHz)

- YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)

- On Screen Display (English and Chinese)

- Supports image position control & image zoom control

- True digital 24-bit A/D converter for true 16.7-million color conversion.

- Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)

Details:

Power	DC5V 2A +/- 0.5v			P7 or P9
Input signal	CGA/EGA	14.5-16.5K 23.5-25.5K 30.5-32.5K	Auto scan	P3 or P11 or P10
	RGBHV	30.5-32.5K	Auto scan	P10 or P11
	VGA	30.5-32.5K	Auto scan	P10 or P11
	Ypbpr	480p,576p,720p,1080p	Auto scan	P2
	Ycbcr	480i,576i,720i,1080i	Auto scan	P2
Output signal	VGA	640480,800600 1024768,1360768		P4 and P13
User control	Input Switch, Image Zoom, Image Position, Output Resolution ,RGB gain adjust.			Menu Key RGB VR
Dimensions	11510520mm

Features

- Supports CGA/EGA/YUV signal input.

- Supports VGA output 640*480,800*600,1024*768,1360*768

- CGA/EGA signal auto scan(15K,24K,31K)

- YUV signal auto scan(480i,576i,720i,1080i,480p,576p,720p,1080p)

- Chinese and English OSD.

- Supports position control & zoom control.

- True digital 24-bit A/D converter for true 16.7-million color conversion.

- Supports all VGA monitor (CRT,LCD,PDP,PROJECT......)

China Sourcing Fair:

FAQ

A.How to order

B. Our Sample policy:

For the sample, we will charge your sample fee as we can, even sometimes free sample available. However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...

C. Which shipment available

Normally, we ship goods by sea,air and express. Special requirement also acceptable

. By sea to your nearest sea port

. By air to your nearest air port

. By express(UPS,DHL.FEDEX,TNT...) to your door

D. Which Payment way workable

Normally, we would like T/T(30% deposit,70% before shipment after presentation of ready goods),Western Union and Paypal. Besides, L/C and other payment term can be considering based on difference order.
