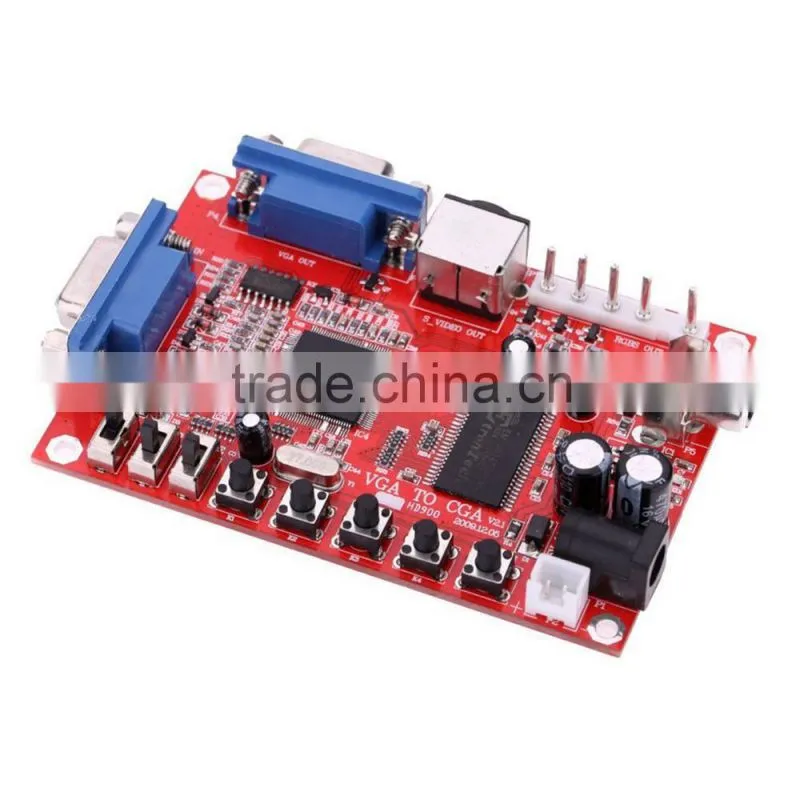

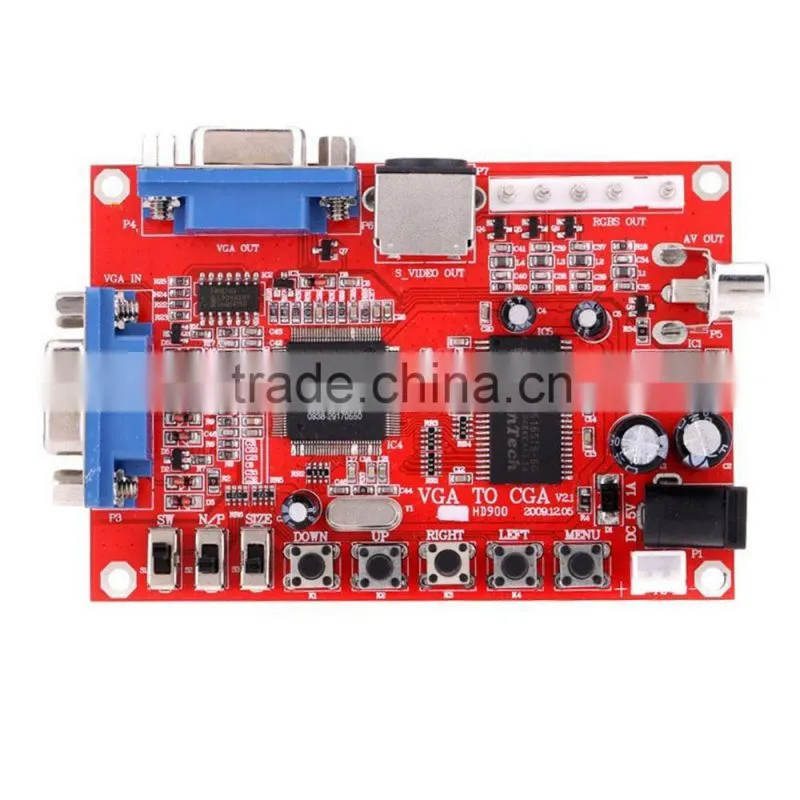

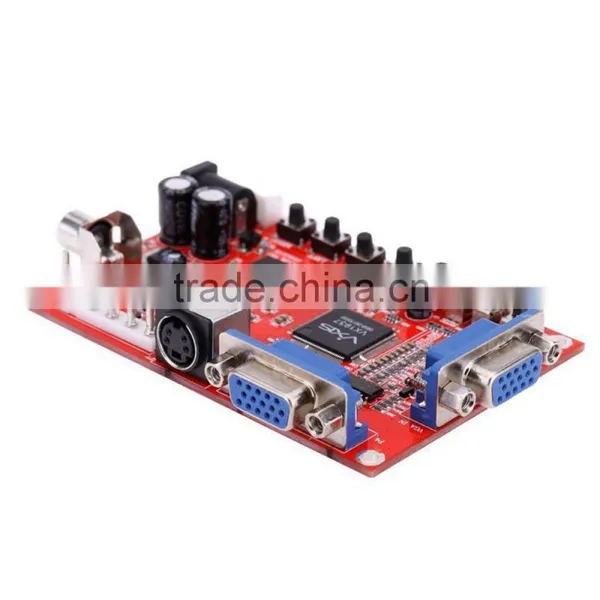

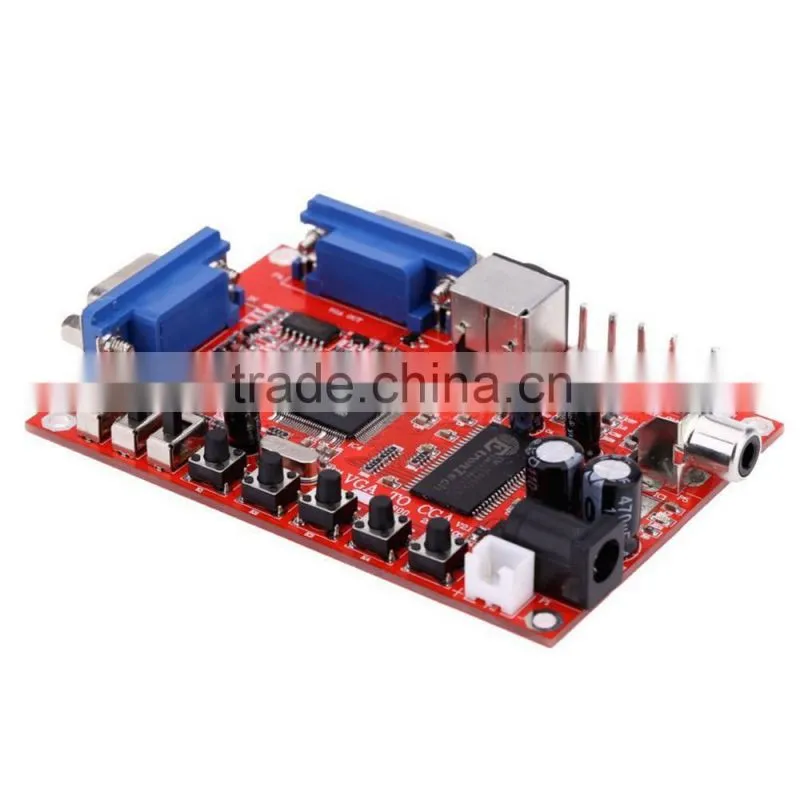

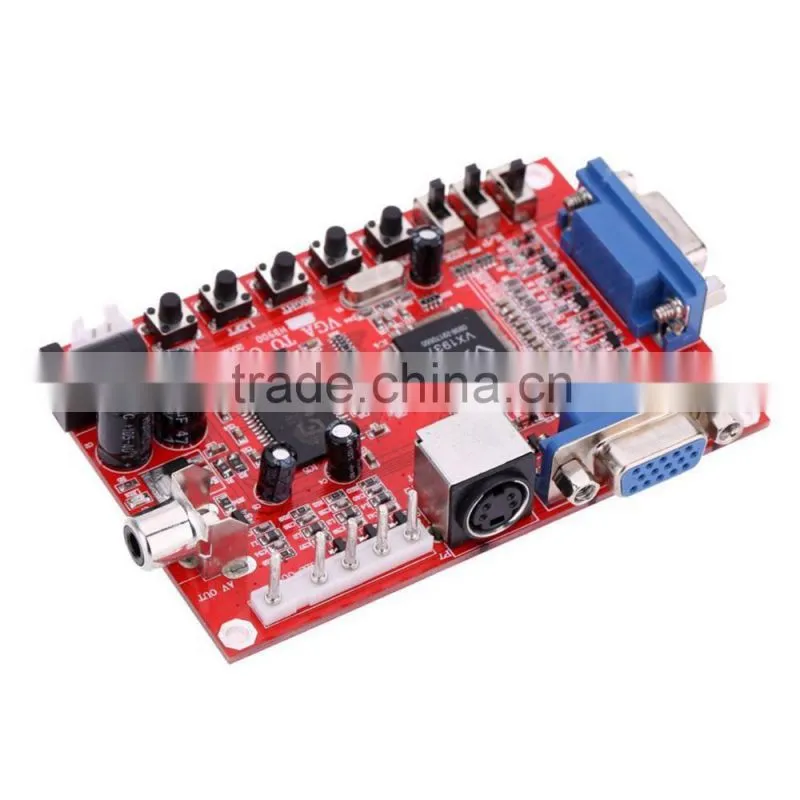

VGA TO CGA CVBS S-VIDEO CONVERTER PC to VGA video game converter

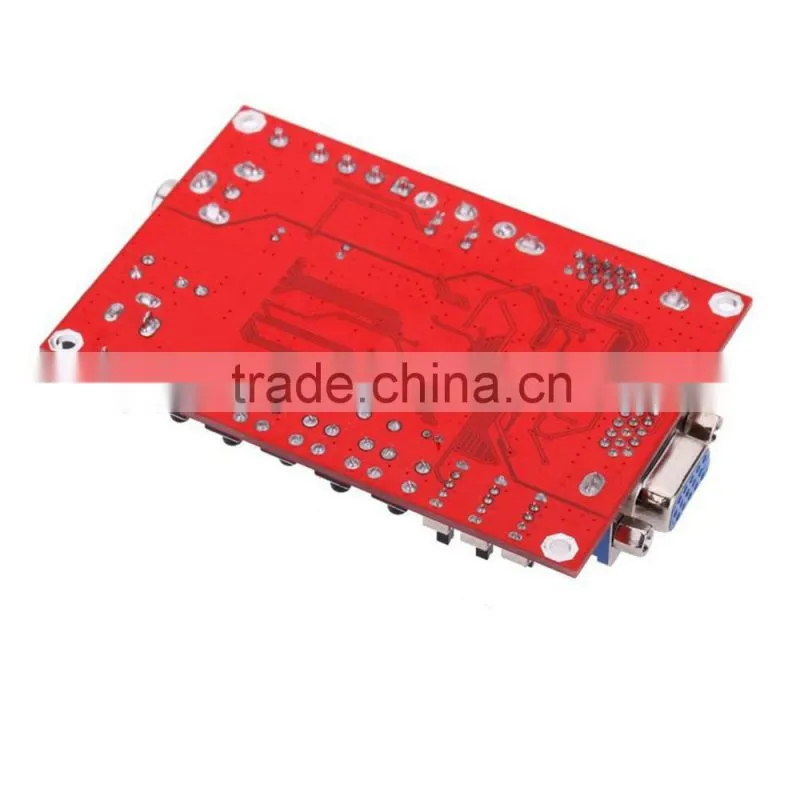

The high definition GBS-8100 Video Converter Board is a professional game converter, which is specially designed for game industry. And, it can convert VGA input signal to CGA / / CVBS / S-VIDEO component signal. After connected, it will play the VGA games (High resolution Arcade Game or PC games) on big-screen HD Monitors (CGA CRT Monitor, LCD Monitor PDP Monitor) It will bring you much fun and convenience.
Features:
Supports VGA / SVGA / XGA / SXGA (640 * 480, 800 * 600, 1024 * 768, 1280 * 1024) Component Signal Input.
Supports VGA output by pass.
CGA signal output (15K).
Video / S-video output.
Supports NTSC & PAL (you can freely change the mode between NTSC & PAL by press N / P button).
Supports image position control & image zoom control.
On Screen Display (English).
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:

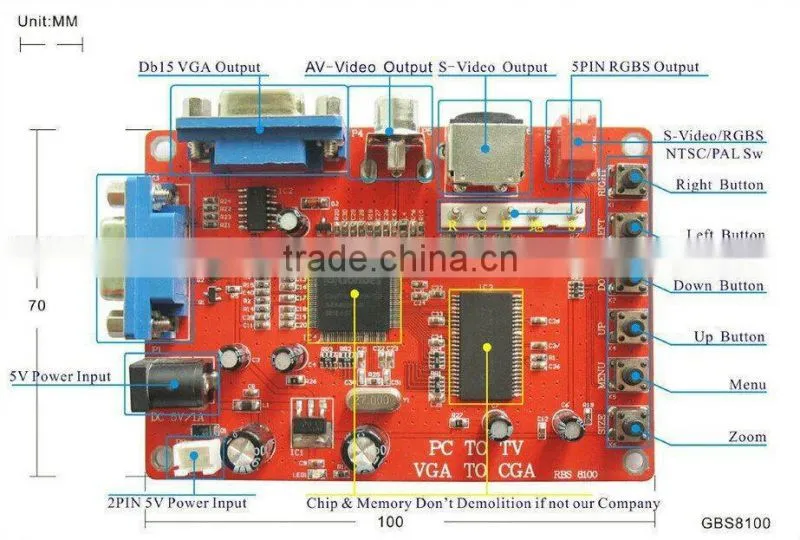

Model Number: GBS-8100
Input Power: DC 5V ±0.5V (2A) P1 or P2
Input signal: 640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80 / 85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3
Output Signal: CGA: 640 * 480 P7
VGA: By Pass P4
Video: 480p NTSC & PAL P5
S-Video: 480p NTSC & PAL P6
User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust.
Color: Red
Main item size: 10.0 * 6.5 * 1.6 cm / 3.94 * 2.56 * 0.63in
Package Weight: 51g / 1.8oz
Package size: 20.0 * 10.0 * 3.0 cm / 7.87 * 3.94 * 1.18in
Package weight: 63g / 2.22oz
MENU CONTROL:
“MENU” open / close OSD menu.
“UP” up move.
“DOWN/AUTO” down move.
“LEFT” add.
“RIGHT” less
For more functions control, please refer to OSD to operate.
S2 to switch NTSC & PAL, output, S1 to switch S-Video / CGA output.
●Package size:12x10x5cm 0.13kg
●Package includes:1 x GBS-8100 VGA to CGA High Definition Converter
●For wholesaler order:Item will be shipped within 3~5 days after payment.
●For OEM order:Item will be shipped within 15 days after initial payment is received.
