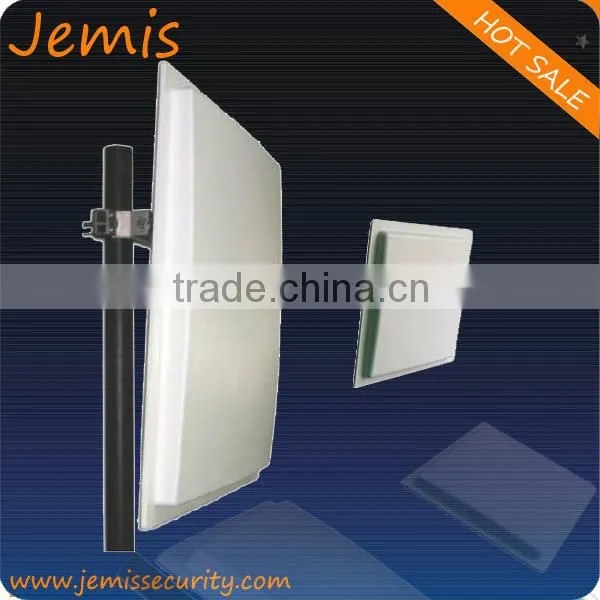

Parking Lot 6B/6C Protocol 15m distance UHF Wiegand interface RFID Long Range Reader
General Description:
JM0703 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated
12dBi linear polarized UHF Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,
the reader is capable of up to 15m Read Range and 6m Write Range.
The reader operates in frequency range of 902MHz~928MHz design to read ISO18000 6C and ISO18000 6B
protocol ID Tag.
The reader will not cause interference to WiFi network, making it the best choice for deployment in WiFi coverage
zone and can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit
and industrial production process control system.
Features:
l Self-intellectual property
l Max reader range 15m
l Durable and cost effectives
l All frequency band in the world available Compatible with EPC G2(ISO 18000-6C) or ISO18000-6B
l Water and dust proof, anti-interference, can work under thunder and light,IP55 Splash Proof
l Easy to install with enclosure up-and-down adjustable bracket
Functions | |
Operating Frequency | International(920~925MHz) |
USA(902~928MHz) | |
Others(Customized Tag) | |
Protocol | ISO18000 6C(EPCGEN2) |
ISO18000 6B | |
Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
Antenna | 12dBi linearly polarize antenna (Integrated) |
Output Power | 0dBm~18dBm(Adjustable) |
Read/Write Range | Max Read Range:15m, Max Write Range:6m Distance depends on Reader&Antenna output Power |
Operating Mode | Master Slave Mode(Online Mode) |
Time Scheduled Modes | |
Trigger Mode | |
Connecting Ports | |
Power | 12V |
Communication Port | RS232 |
Wiegand Interface:Wiegand26&Wiegand34Supported | |
RS485 | |
10/100M Ethernet,GPRS.WIFI(for Customized Model only) | |
Trigger | 1xTriggerLevelInput |
General Purpose | 2xGPIO |
Operating Environment | |
Operation | -20℃~+60℃ |
Storage | -45℃~+85℃ |
Physical Parameter | |
Dimension | 450mm×450mm×120mm |
Weight | 5Kg |
Accessories | |
Power Supply | AC110~220V/DC+12V |
Cables | Power Cable |
RS232SerialCable | |
Brackets | Pole Mount Adapter |
Software Pack(Optional) | API Software Development Kits complete with VB,C#Sample Program |
