Low Cost Production Line China Supplier Dry Mortar Small Manufacturing Plant

What is dry mortar?

Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives.

Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

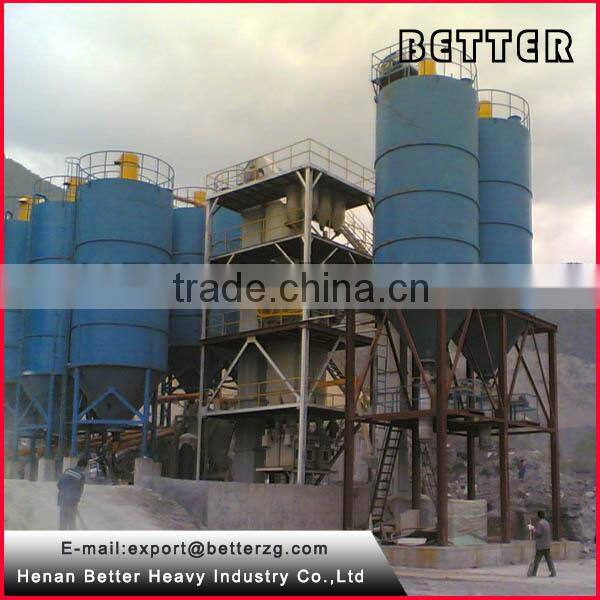

      Dry mortar production line

Main configuration for dry mortar production line:

1.raw materials storage silos

2.sand drying system

3.bulk elevator

4.screw conveyor

5.weighing system

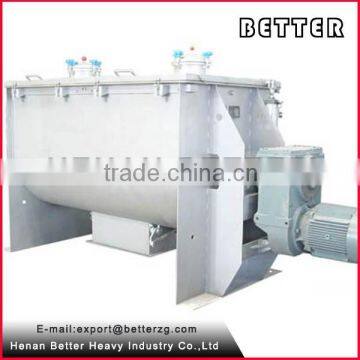

6.mixer

7.finished product hopper

8.packing system

9.de-dusting system

puter control system

11.air compressor

12.air-phase balance system

13.steel structure

14.finished product storage silo

Production line

Dry mortar production line can be divided into simple,semi-auto and full automatic dry mortar production line three types based on its working style.

Simple dry mortar production line:it is mainly composed of agravic dry mortar mixer, dry powder silos, screw and other packaging machine.

Semi-auto dry mortar production line:it is mainly by agravic dry mortar mixer (with knife), product-finished silos, packaging machines, bucket elevator, to be mixed with the warehouse, deduster, compressed air system, control system etc..

Full-auto dry mortar production line:full-automatic type mainly by efficient mixing system, material storage systems, conveying systems, lifting systems, weighing systems, to be mixed systems, packaging systems, dust removal system, level control systems, alarm systems, air systems, machine control systems structure and so on.

It can be divided into ladder type and tower type dry mortar production line based on its appearance structure.

Note the use of dry mortar equipment

1, a mixer under normal use, you need to pay attention to the operator to assure the equipment should be regularly inspected and maintained, if the equipment is found abnormal operation or operations shifted positions,turn off the power timely,After all-round the inspection and maintenance,please check for proper use and operation.

2, dry mortar production line equipment, the degree of mixing into an ideal mix, random mix, and incomplete mixing of three states

3, when a sudden power failure, you should release the material in the mixer and then start the machine.

4, The mixing degree of the materials in dry mortar production line equipment, depends on the proportion of materials to be mixed, physical state and properties, as well as the type used in mixing machine and mixing operation duration and other factors.

5, the mixer Liquidity is very poor, granular or powdered solid adhesion occurs each other, is often required mechanical mixing machine turning and pressing, rolling and other activities join.

Packaging Detail:

 Pre-sale:

we can give you suggestions according to your requirements

 Sale:

we can provide the skillful engineer to provide the best combination products and send him to the site to ensure the installed and debugging success.

 After-sale:

we provide the products 1 year warranty period(include the damage cased by human factor) ,and can also sent the skillful engineer to your site to provide repaire service.

Henan Better Heavy Industry Co.,Ltd has over 15 years experience in construction machinery.Our products all passed the certifications of CE & ISO9001! Our products sell well all over the country and exported to the outer Mongolia,Russian,Philippin,Macedonia,Tanzania,Cyprus etc.and won overseas customers' trust and good reputation.

Henan better heavy industry co., LTD is engaged in construction machinery , engineering machinery industry more than 10years .Company has more than 200 employees , by more than 40years of senior engineers engaged in machinery industry the core leadership and focus on research and development , manufacture of professional team . is a company engaged in product research and development , manufacturing and selling all kinds of construction machinery , engineering machinery , mining machinery products equipment and engineering machinery parts and components of professional enterprise .Which had been sold all over the country and exported to Sudan , Libya , Bulgaria and so on , well received the customer acclaim . Warmly welcome global merchants to patronize , common development , create brilliant !
