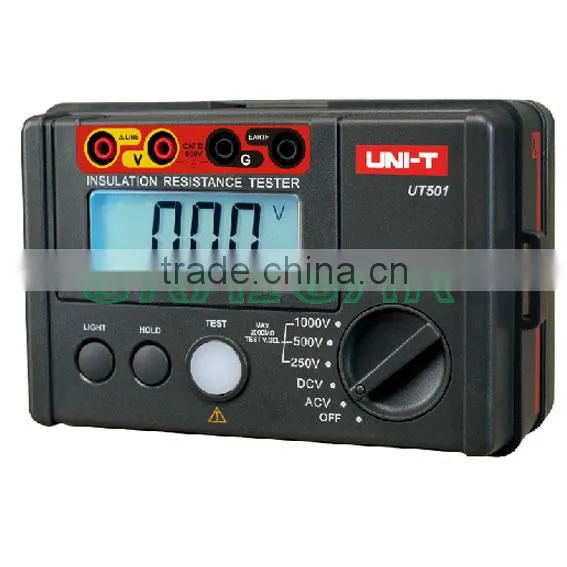

UNI-T UT501 Megger Multi-function Insulation Resistance Tester

Name: UNI-T UT501 Megger Multi-function Insulation Resistance Tester
Brand: UNI-T
SKU: 130767123

US$ 40 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT501

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT501

Display Type Digital Only

Measuring Range 3MΩ-2GΩ

Testing Voltage AC:30V-750V,DC:30V-1000V

Operating Temperature 0℃~40℃

Dimensions 150*)100*71mm

Specifications

UNI-T UT501 Megger Multi-function Insulation Resistance Tester

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Output Voltage	250V/500V/1000V	±10%
Niminal Current	250V/500V 1mA 500V/1000V 1mA 1000V/2500V 1mA	±10% ±10% ±10%
Short Circuit Current	<2mA
Insulation Resistance Measurement	250V: 3MW ~ 2000MW 500V: 3MW ~ 2000MW 1000V: 3MW ~ 2GW	±3%+5 ±3%+5 ±3%+5
Voltage Measurement	1000V DC 750V AC	±(2%+3) ±(2%+3)
Special Functions
Auto Ranging
Low Battery Display
Alarm Light Display
Display Backlight
Alarm Buzzer

GENERAL CHARACTERISTICS

Power	1.5V Alkaline Battery x 6
LCD Size	70.6 mm x 34 mm
Product Color	Red & Grey
Product Net Weight	500g
Product Size	150 x 100 x 71 mm
Standard Accessories	Battery, Probe, Alligator Clip, Test Lead,English Manual, Carrying Bag, Gallus
