DY5104A, DY5105A Digital Insulation Resistance Tester
Specifications
DY5104A, DY5105A Digital Insulation Resistance Tester
DY5104A, DY5105A Digital Insulation Resistance Tester
Features
- Three test voltages, measure insulation resistance to 20GΩ
- Measure insulation resistance to 200GΩ with 0.01mΩ resolution
- AC voltage measurement to 600V
- Data hold, auto range, auto power off, LCD background light
- Complete with test leads, heavy duty carry case and six 1.5V AA batteries
Specifications
Insulation Tester
| MODEL | DY5104A | DY5105A |
|---|---|---|
| Testing Voltage | 250/500/1000/2500V | 100/250/500/1000V |
| Insulation Resistance | 0.1~20GΩ ±(3%+5) | 0.1~20GΩ ±(3%+5) |
| AC V | 700V ±(2%+5) | 700V ±(2%+5) |
| Resolution | 0.01MΩ | 0.01MΩ |
| Auto Range | yes | yes |
| Function Symbol Display | yes | yes |
| Data Hold | yes | yes |
| Low Battery Warning | yes | yes |
| Max. Diplay | 1999 | 1999 |
| LCD Background Light | yes | yes |

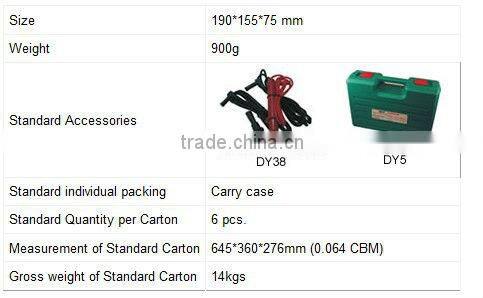

General Characteristics
