Product Details
| Place of Origin | Guangdong, China | Brand Name | JEMIS | |
| Model Number | JM-SCR100 |
Product Description
Free RFID Software Smart Card Door Access Control
Introduces:
SCR100 is an access control devices produced by ZKSoftware. The device have lock control, alarm, exit button, door sensor.

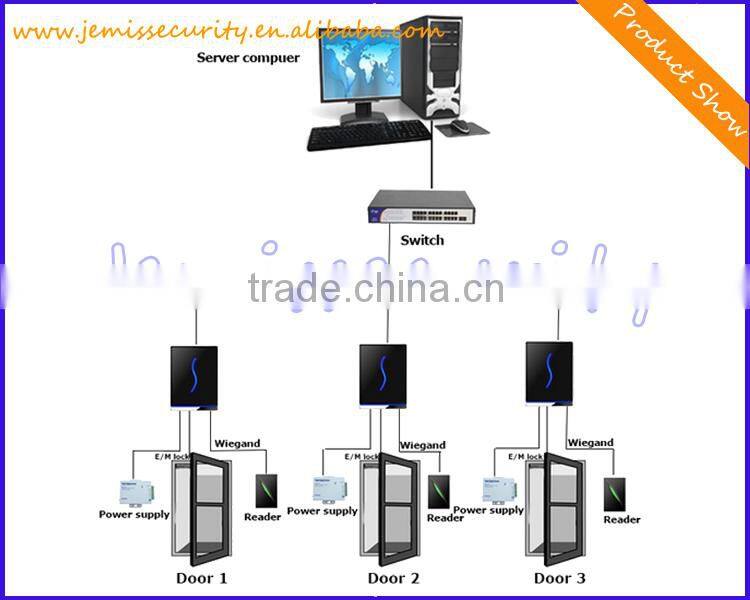

The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be
used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on PC software and
upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload,
including user data and record etc. SCR100 is suitable for house, small office and factory etc.
Features:
1- Elegant casing design
2- Easy installation, safe and reliable
3- Simple and convenient operation method
4- ID card standard, Mifare card optional
5- Full door lock control system
6- Wiegand out to connect with control panel
7- Wiegand in to construct master and slave system
8- Audio prompt and LED feedback guide the user to operate
Specifications:
ID card Capacity | 30000 |
Transaction Capacity | 50000 |
Communication | TCP/IP, RS232/485, USB-Host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Output&Input |
Standard Functions | Anti-passback, Webserver, 9 digital number |
Optional Functions | Mifare, HID |
Display | N/A |
Power Supply | 12V DC |
Operating Temperature | 0 °C- 45 °C |
Operating Humidity | 20%-80% |
Dimension(L*W*H)mm | 153x95.5x35.5 |
Gross Weight | 0.8KG |
