High Quality 902-928MHZ 8-15M long range uhf rfid reader for
parking lot

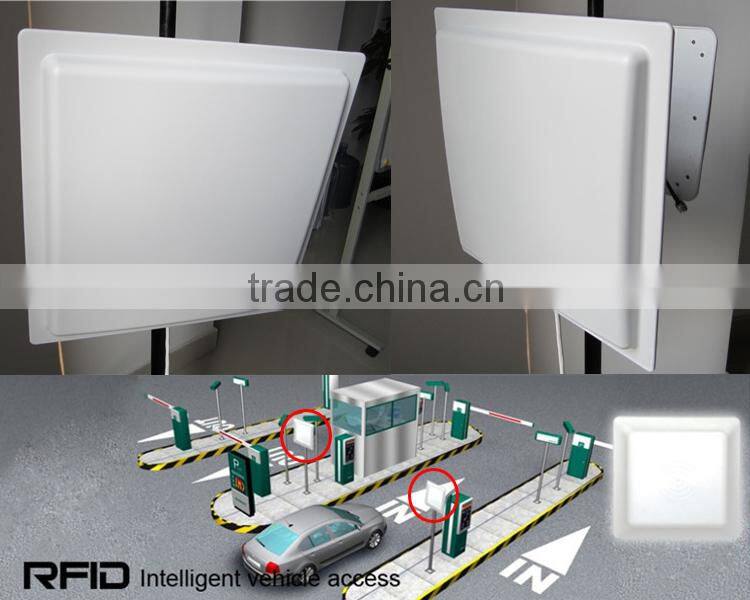

JM-0703 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 12dBi linear polarized UHF Far Field antenna,.
Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 15m Read Range and 6m Write Range.
The reader operates in frequency range of 902MHz~928MHz design to read ISO18000-6C and ISO18000-6B protocol ID Tag.
The reader will not cause interference to WiFi network, making it the best choice for deployment in WiFi coverage zone and can be widely applied in many RFID
application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 902 ~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 12dbi antenna optional with effect distance up to 15m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
Area of Application:
Automotive and Transportation Supply Chain and Super Mart
Parking lot Management School, Library
Contact-less Payment Logistic Management
Boarder and Access Control Asset Tracking
Time&Attendance Management Anti-counterfeit
Farm and Animal Tracking Club and Hospital
Specification:
Functions | |
Operating Frequency | International(920~925MHz) |
USA(902~928MHz) | |
Others(Customized Tag) | |
Protocol | ISO18000-6C(EPCGEN2) |
ISO18000-6B | |
Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
Antenna | 12dBi circular polarize antenna (Integrated) |
Output Power | 0dBm~18dBm(Adjustable) |
Read/Write Range | Max Read Range:15m, Max Write Range:6m |
Operating Mode | Master-Slave Mode(Online Mode) |
Time Scheduled Modes | |
Trigger Mode | |
Connecting Ports | |
Power | 12V |
Communication Port | RS-232 |
Wiegand Interface:Wiegand26&Wiegand34Supported | |
RS-485 | |
10/100M Ethernet,GPRS.WIFI(for Customized Model only) | |
Trigger | 1xTriggerLevelInput |
General Purpose | 2xGPIO |
Operating Environment | |
Operation | -20℃~+60℃ |
Storage | -45℃~+85℃ |
Physical Parameter | |
Dimension | 450mm*450mm*120mm |
Weight | 5Kg |
Accessories | |
Power Supply | AC110~220V/DC+12V |
Cables | Power Cable |
RS232SerialCable | |
Brackets | Pole Mount Adapter |
Software Pack(Optional) | API Software Development Kits complete with VB,C#Sample Program |
