GPRS/WIFI/RJ45/Wiegand/RS23/RS485 long range 15m uhf rfid reader JM-0703
General Description:
JM0703 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 12dBi linear polarized UHF Far Field antenna.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 15m Read Range and 6m Write Range.
The reader operates in frequency range of 902MHz 928MHz design to read ISO18000 6C and ISO18000 6B protocol ID Tag.
The reader will not cause interference to WiFi network, making it the best choice for deployment in WiFi coverage zone and can be widely applied in many RFID application systems such as logistics, access control, and anti counterfeit and industrial production process control system.
Self intellectual property
Max reader range 15m
Durable and cost effectives
All frequency band in the world available Compatible with EPC G2(ISO 18000 6C) or ISO18000 6B
Water and dust proof, anti interference, can work under thunder and light,IP55 Splash Proof
Easy to install with enclosure up and down adjustable bracket
Area of Application:
Automotive and Transportation Supply Chain and Super Mart Parking lot Management School, Library Contact less Payment Logistic Management Boarder and Access Control Asset Tracking Time&Attendance Management Anti counterfeit Farm and Animal Tracking Club and Hospital
Functions | |
Operating Frequency | International(920 925MHz) |
USA(902 928MHz) | |
Others(Customized Tag) | |
Protocol | ISO18000 6C(EPCGEN2) |
ISO18000 6B | |
Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
Antenna | 12dBi linearly polarize antenna (Integrated) |
Output Power | 0dBm 18dBm(Adjustable) |
Read/Write Range | Max Read Range:15m, Max Write Range:6m Distance depends on Reader&Antenna output Power |
Operating Mode | Master Slave Mode(Online Mode) |
Time Scheduled Modes | |
Trigger Mode | |
Connecting Ports | |
Power | 12V |
Communication Port | RS232 |
Wiegand Interface:Wiegand26&Wiegand34Supported | |
RS485 | |
10/100M Ethernet,GPRS.WIFI(for Customized Model only) | |
Trigger | 1xTriggerLevelInput |
General Purpose | 2xGPIO |
Operating Environment | |
Operation | 20℃~+60℃ |
Storage | 45℃~+85℃ |
Physical Parameter | |
Dimension | 450mm×450mm×120mm |
Weight | 5Kg |
Accessories | |
Power Supply | AC110 220V/DC+12V |
Cables | Power Cable |
RS232SerialCable | |
Brackets | Pole Mount Adapter |
Software Pack(Optional) | API Software Development Kits complete with VB Sample Program |

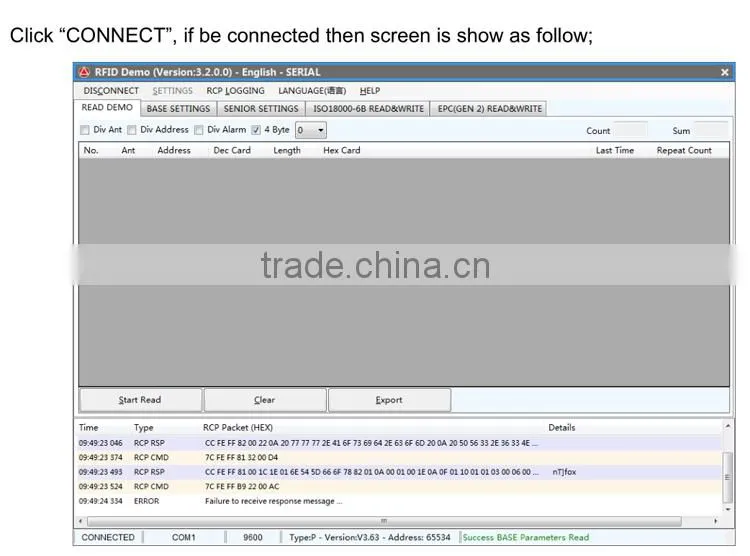

Software interface
