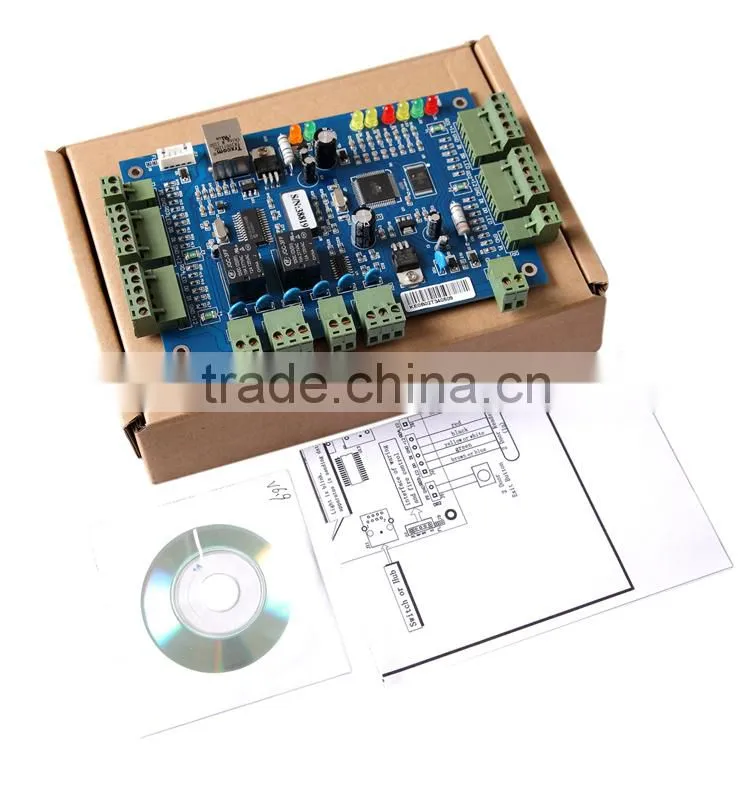

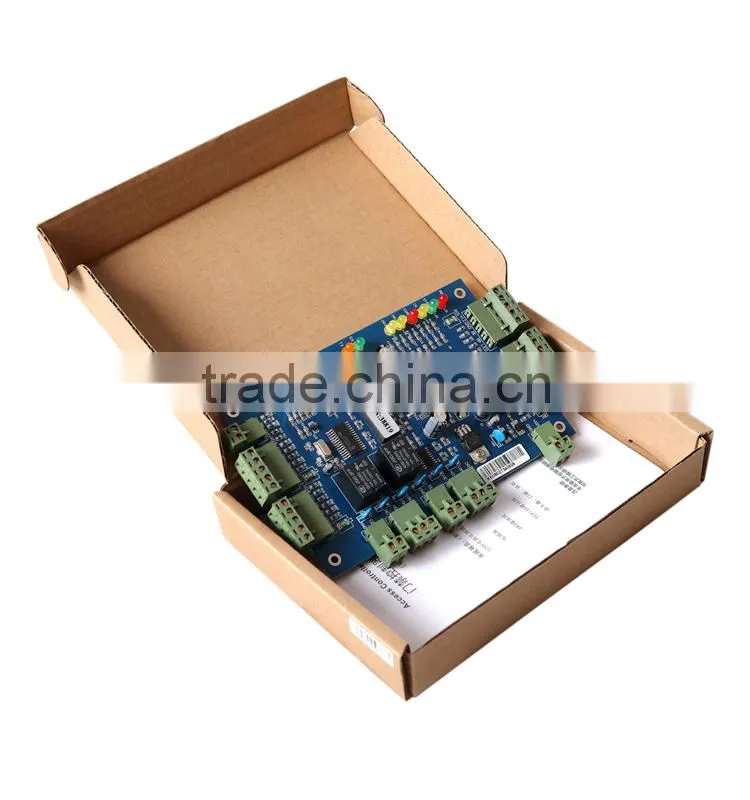

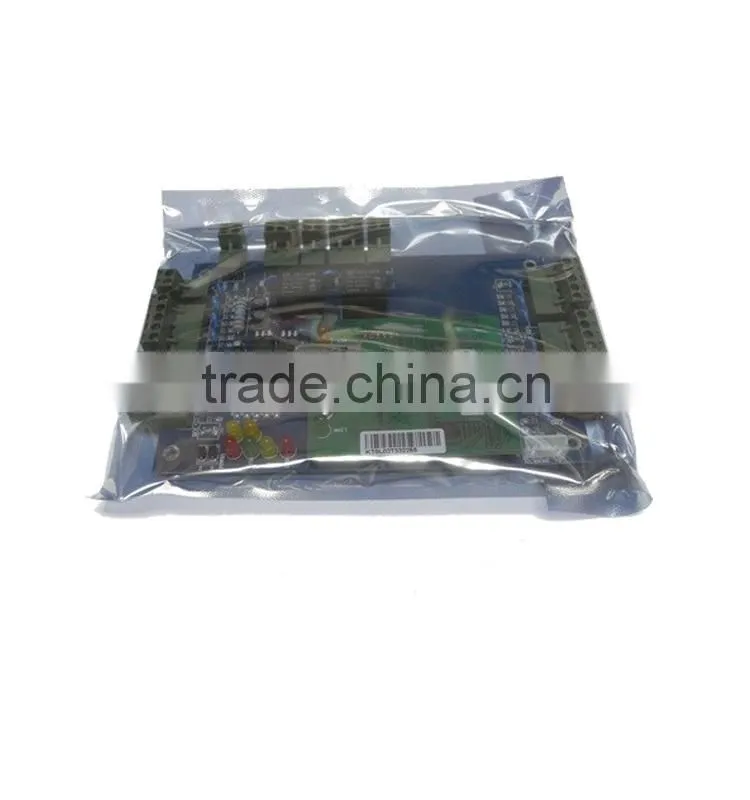

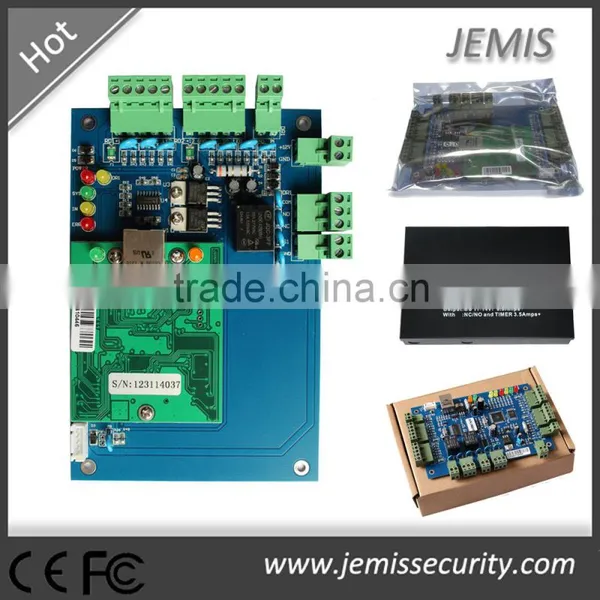

Jemis JM-2001 TCP/IP web wiegand interface access control board time attendance
Unit Size | 160mm *106mm |
Unit Packing Way | Brown box |
Unit Packing Size | 273mm*228mm*65mm |
Accessories | User Manual, warranty card |
Function Introduction | |
Conventional Function | offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map,patrol, meeting,const meal etc. |
Professional function | for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking; multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation. |
all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
Parameter | |
Communication | TCP/IP |
English Software supportable database: | SQL |
Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
Power Supply | 12VDC; 4-7A |
Power Consumption of Circuit Board | Less than 100mA |
Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol) |
Quantity of Readers | 4 pcs |
Door Controlled | 2 |
Door opening time extending setting | 1-600 Seconds(adjustable) |
Max q ' ty of controller | Unlimited |
Operation Temperature | -40degree ~ 70degree |
Operation Humidity | 10-90 % RH , No Condensation |

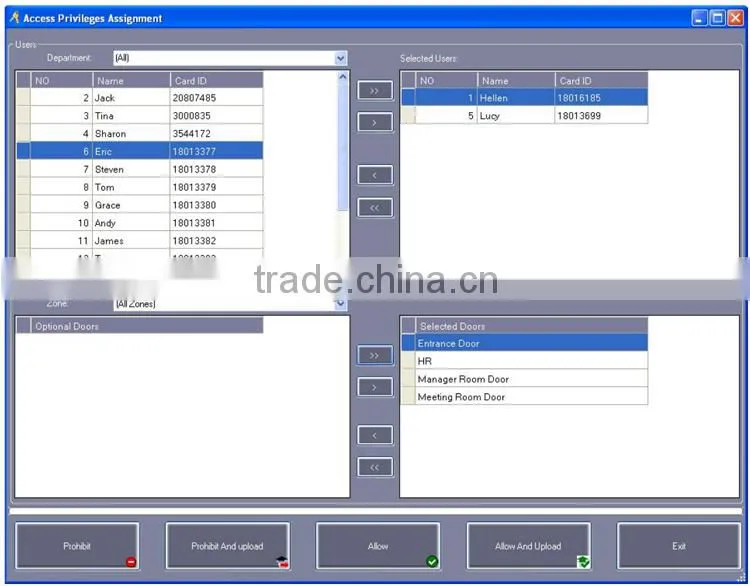

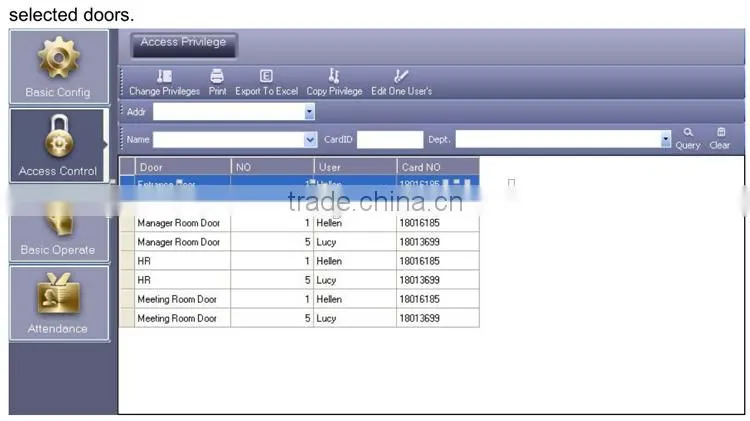

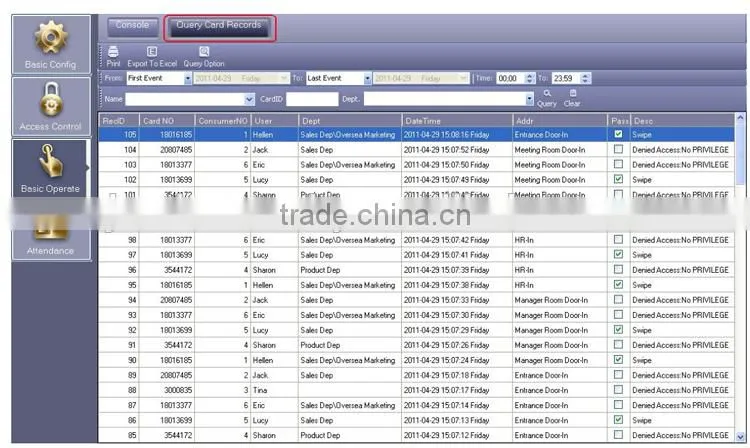

Software interface:
