Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Other, seamless steel, Seamless steel | Material Feature | Heat Resistant | |
| Structure | Conveyor System | Load Capacity | 60 KW | |
| Place of Origin | Henan, China | Brand Name | BETTER | |
| Model Number | lsy273 | Voltage | 220/380V | |
| Power(W) | 11 KW | Dimension(L*W*H) | Customized Size | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
LSY273 concrete screw conveyor for batching plant
LSY screw conveyor series is produced with the emergence of concrete mixing station. Prospecting rework production.
LSYscrew conveyor is absorbed in Germany and Italy imported machines based on screw conveying the advantages of integrated design and manufacture in China. This equipment good sealing performance, no dustleakage, bearings with new material, with the run wear and therefore limited in use for a long time without having to refuel.
LSYseries screw conveyor rigidity, large carrying capacity, at the time of delivery, whether it is horizontal, and are continuous conveying with large inclination, and choice of location and working conditions, disassembling and repairing easy, safe and reliable, is the ideal of the new generation of environmentally friendly products.
Parameter for the LSY series concrete screw conveyor
| LSY | 140 | 200 | 160 | 250 | 300 | 300 | 400 | ||
| Spiral diameter(mm) | 140 | 187 | 163 | 238 | 290 | 290 | 365 | ||
| Rorary speed(r/min) | 300 | 260 | 300 | 200 | 175 | 300 | 175 | ||
| Outer diameter(mm) | 168 | 219 | 194 | 273 | 325 | 325 | 402 | ||
| Max capacity (cement) | 9-12 | 32-50 | 20-30 | 53-70 | 60-82 | 85-120 | 110-140 | ||
| (t/h)45-0 | |||||||||
| Conveyor length(m) | 3-13 | 3-15 | 3-13 | 4-15 | 6-15 | 6-15 | 6-12 | ||
| Working angle | 0-60 | 0-60 | 0-60 | 0-60 | 0-55 | 0-55 | 0-55 | ||
| Motor | Model | Y132S-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 | Y180M-4 | |
| Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 18.5 | 18.5 | ||
| Model | Y132M-4 | Y132S-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 | Y180L-4 | ||
| Power(kw) | 7.5 | 5.5 | 11 | 15 | 22 | 22 | 22 | ||
Each cement silo will need one screw conveyor for product transmission.
Best selling length of the conveyor is 8 meter, which comes in 3 parts.
Depends on the length you need, we can sell the conveyor by meters.

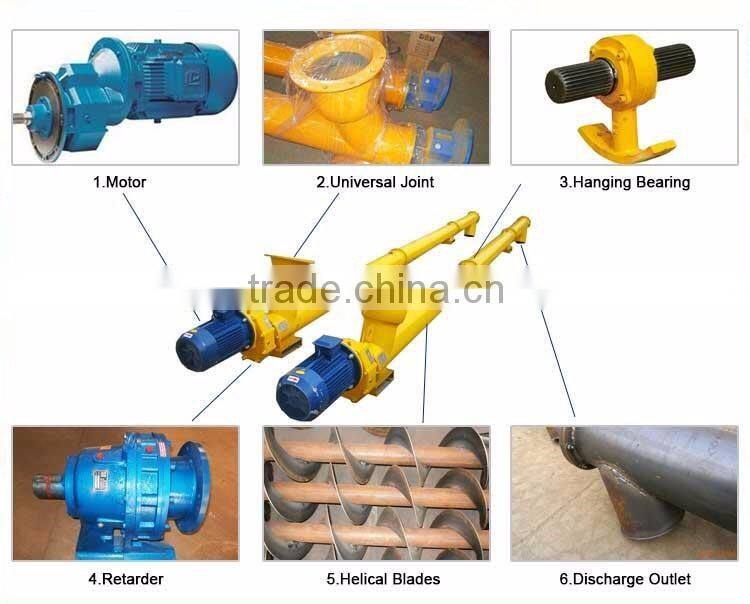

Main part for screw conveyor

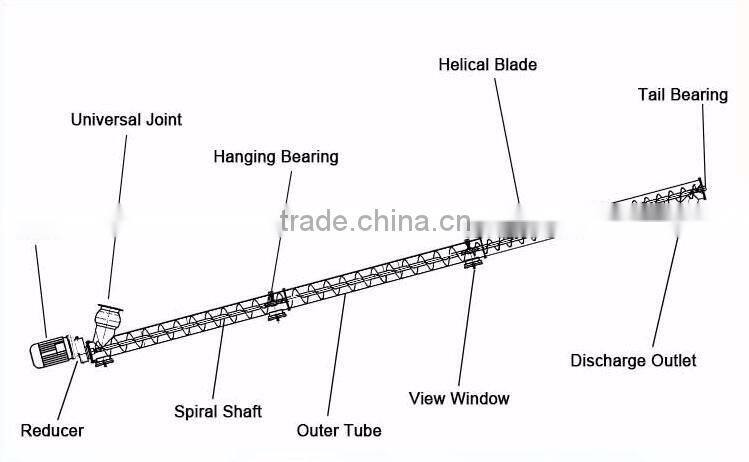

Structure diagram for screw conveyor
Concrete mixing plant packaging and delivery
Containers or as your order
1. Use crane to load into the container
2. Wire cable fastened inside the container
3. Cork wood to forbid collision
4. Screw conveyor will fit into any container for transportation.
5. Oversea customer normally purchase bolted type silo for easy transportation. Welding type take too much space of the container.
Better service
1. pre-sale service:
Michelle will give you suggestions on productive technical processing in the prophase plan and manufacturer equipment based on your special demand.
2. Sale service:
If needed, our advanced technicians will be sent to your site, guide installation and operation, training your technicians until you site is finished and well checked running.
3. After-sale service:
In order to keep our cooperation relationship, we will send technicians to visit you, making sure the products works normally.
4. We provide one-year warranty to make products works normally. We also offer lifelong services and wearable parts for you. (In addition to artificial damage)

Henan Better Heavy Industry Co., Ltd was established in 1998, with long history, strong technical force, well-equipped and advance technology.
Our core competences are QT series brick machinery, HBT series concrete pump, HZS series concrete batching plant, YHZS series mobile concrete mixing plant, 2HZS series concrete mixing plant, PLD batching machine, JS series concrete mixer, JZC series concrete mixer, Cement silo, LSY series screw conveyor, electric control system.
Company purpose: Customer is God, quality is life, strives for the survival by the quality, strives for the development, to the prestige, service for efficiency.
Exported country: Outer Mongolia, Russian, Philippine, Macedonia, Tanzania, Cyprus, Thailand, Nigeria, Bangladesh, Kazakhstan, Romania, Nepal, Saudi Arabia, Algeria, Senegal etc.
Hornor
1. Q:How to choose the suitable model of concrete batching plant?
A:Just tell us the capacity of concrete you need to produce, concrete cubes per hour (m3/h), or concrete tons per month (t/m)
2. Q:What payment terms you accept
A:Usually the world most common used TT, PayPal, Money gram, credit card, L/C, Western union, Cash. 30% deposit, 70% against B/L.
3. Q:How soon can you deliver?
A:Normally 7 days after deposit received.
4. What is the transportation method?
By sea, by train or by truck.
5. what is your MOQ?
MOQ is 1 set machine, special discount will be given on large scale.
6. What other products that you manufacture?
A: Please see below chart.
| NO. | Product Name | Type |
| 1 | Concrete Batching/Mixing Plant | Fixed and Mobile |
| 2 | Concrete Mixer | Twin Shaft, Single Shaft, Rotating Drum Type |
| 3 | Dry-mix Mortar Production Line | Full-auto |
| 4 | Concrete Batching Machine | Accumulative Weighing Type, Separator Weighing Type |
| 5 | Cement Silos | Fixed and mobile, |
| 6 | Screw Conveyors | With universal joint |
| 7 | Concrete Mixer Truck | From 3m3 to 16m3 |
| 8 | Concrete Pump | Electric type and diesel engine powered |
| 9 | Brick Making Machine | Manual, Electric, |
