Specifications
varifocal lens ip camera--1/2.5'' Sony MX 122 CMOS
--0.01 low lux
--2.8~12mm lens
--H.264/MJPEG mode

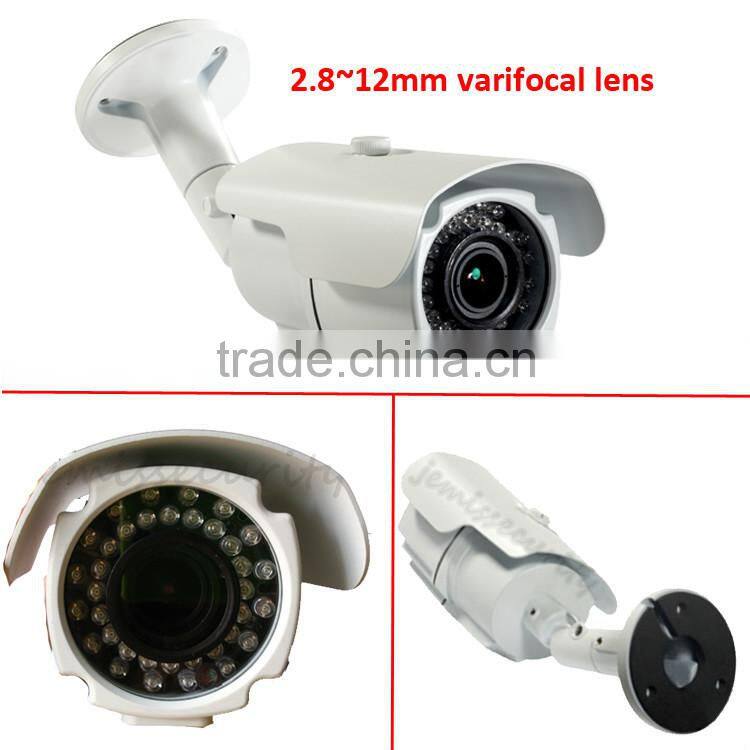

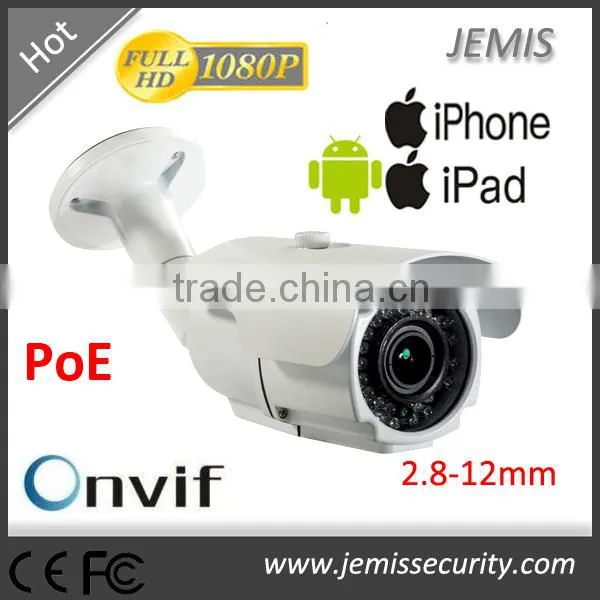

2.8~12mm high focus 1080p bullet outdoor ONVIF POE network varifocal ip camera
Dual stream encoding / H.264 compression mode
1/2.5-inch 2.0 Megapixel Sony MX 122 CMOS with 0.01 low illumination
2.8-12 mm varifocal lens
Day/night mode auto switching night vision :30m(36pcs leds)
1080P 1920*1080 960P: 1280*960 720P 1280*720
Support Multi-Screen software, CMS and the devices Compatible with ONVIF
Support Remote Access DDNS, P2P software
Support different types of smart phones, iphone/ipad/Android for instant remote monitoring anytime, anywhere.
Support motion detection, sensitivity setting, alarm time schedule
Support Capture picture and send to assigned email when alarm is triggered.
Support multi-users remote access vis PC CMS software,Web browsers.
DC 12V ,Module power consumption is less than 2 W
Support iPhone, Android, Bit rate:32K – 512K adjustable,Frame rate:6–12 fps
POE Module Optional
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
CMS Software on PC
Real Time Video on PC
Mobile Phone App (Support iPhone/iPad/Android)
IP CAMERA | ||||
Model |
JM-1012V |
JM-812V |
JM-512V |
JM-612V |
|
|
|
|
|
Device Type |
1080P Sony MX 122 CMOS |
1080P 9P006 CMOS |
960P Aptina AR0130 CMOS |
720P OV 9712 CMOS |
Size |
1/2.5 |
1/2.5 |
1/3 |
1/4 |
Day and Night |
Yes |
|||
|
Min Scene Illumination |
0.01 lux (IR ON) |
0.5 lux (IR ON) |
0.01 lux (IR ON) |
0.01 lux (IR ON) |
Infrared sensitivity |
Support |
|||
IR Filter |
IR-CUT |
|||
IR-led lamp |
36pcs |
|||
IR Distance |
30M |
|||
Electronic shutter |
1/5-1/15, 000/S |
|||
Lens |
|
|||
Lens |
2.8~12mm lens |
|||
Focus |
manual zoom |
|||
Aperture |
Fixed aperture F1.2 |
|||
Video |
|
|||
Compression |
H.264 Main Profile/Baseline |
|||
|
Picture Resolution
|
1920*1080 30fps |
1920*1080 30fps |
1280*960 25fps |
1280*720 30fps |
Steam flow |
Support dual stream |
|||
Bit Rate |
128-8192kbps |
|||
Bit Rate Type |
CBR/VBR |
|||
S/N Ratio |
>50DB |
|||
Image |
Auto White Balance, Backlight compensation, Brightness |
|||
enhancement |
Contrast, Saturation adjusted |
|||
Subtitles input |
Support channel name, date/time |
|||
Flip Config |
Up/down. Left/right |
|||
Audio/Alarm |
|
|||
|
Audio
|
Support the microphone input and LINE OUT, support two-way voice intercom equipment |
|||
equipment |
An external audio equipment |
|||
Audio input/output |
One channel audio input, one channel audio output |
|||
|
Audio Compression |
G.711/G.726 |
|||
Alarm input/output |
One channel alarm input, one channel alarm output |
|||
Alarm way |
Motion Detection: Configure motion detection area, detecting sensitivity is adjustable Cover alarm: The alarm sensitivity is adjustable |
|||
Alarm processing |
The control center to monitor, Go to PTZ preset pos, send E-mail, Log record, SD card storage etc |
|||
Network |
|
|||
|
Protocal
|
HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF, 28181 |
|||
Ethernet |
Ethernet(10/100 Base-T), RJ-45 connector |
|||
|
Safety
|
IP address filtering, User level password protection, The user access log |
|||
Software |
|
|||
|
WEB Browser
|
Microsoft Internet Explorer 6.0 and above, goole, firefox, etc |
|||
|
Mobile Phone
|
Support iPhone, Android, Bit rate: 32K-521K adjustable Frame rate: 6-12fps |
|||
Software Management |
CMS and the devices Compatible with ONVIF |
|||
Software intelligence function |
Motion detection, Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
|||
|
Event action
|
Files are stored to the back and equipment, Send E-mail, send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset pos etc. |
|||
Remote Access |
DDNS, Software, P2P |
|||
|
Physical properties
|
|
|||
Accessories |
Power adapter, CD, Screw bag |
|||
|
Power Comsumption
|
DC12V, Module power consumption is less than 2W |
|||
Temperature |
-20~60 |
|||
Humidity |
-10~85% |
|||
Weight |
2KG |
|||
Certification |
CE, FCC |
|||
