Specifications
dome ip camera--1/2.5'' Sony MX 122 CMOS
--0.01 low lux
--H.264/MJPEG mode
--motion detection, email alarm

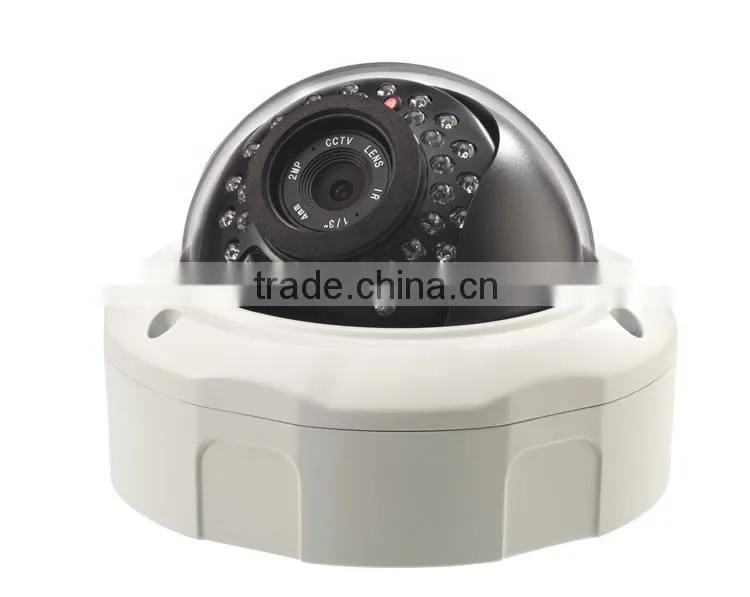

Motion Sensor outdoor water proof vandal proof 2mp infrared network dome ip camera
Dual stream encoding / H.264 compression mode
1/2.5-inch 2.0 Megapixel Sony MX 122 CMOS sensor, with 0.01 low illumination
include 3.6mm fixed lens
Day/night mode auto switching night vision :20m(30pcs leds)
1080P 1920*1080 960P: 1280*960 720P 1280*720
Support Multi-Screen software, CMS and the devices Compatible with ONVIF
Support Remote Access DDNS,Software,P2P
Support smart alarm when motion detection,video shelter and video loss
Support instant email alert with pictures attached when alarm triggers.
Support multi-users remote access vis PC CMS software,Web browsers.
DC 12V ,Module power consumption is less than 2 W
Support iPhone, Android, Bit rate:32K – 512K adjustable,Frame rate:6–12 fps
POE Module Optional
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
CMS Software on PC:
Real time Video on PC
Mobile Phone App( Support iPhone/iPad/Android)
IP CAMERA | ||||
Model | JM-1022 | JM-822 | JM-522 | JM-622 |
|
|
|
|
|
Device Type | 1080P Sony MX 122 CMOS | 1080P 9P006 CMOS | 960P Aptina AR0130 CMOS | 720P OV 9712 CMOS |
Size | 1/2.5 | 1/2.5 | 1/3 | 1/4 |
Day and Night | Yes | |||
Min Scene Illumination | 0.01 lux (IR ON) | 0.5 lux (IR ON) | 0.01 lux (IR ON) | 0.01 lux (IR ON) |
Infrared sensitivity | Support | |||
IR Filter | IR-CUT | |||
IR-led lamp | 20pcs | |||
IR Distance | 30M | |||
Electronic shutter | 1/5-1/15, 000/S | |||
Lens |
| |||
Lens | 3.6mm fixed lens | |||
Focus | fixed | |||
Aperture | Fixed aperture F1.2 | |||
Video |
| |||
Compression | H.264 Main Profile/Baseline | |||
Picture Resolution
| 1920*1080 30fps | 1920*1080 30fps | 1280*960 25fps | 1280*720 30fps |
Steam flow | Support dual stream | |||
Bit Rate | 128-8192kbps | |||
Bit Rate Type | CBR/VBR | |||
S/N Ratio | >50DB | |||
Image | Auto White Balance, Backlight compensation, Brightness | |||
enhancement | Contrast, Saturation adjusted | |||
Subtitles input | Support channel name, date/time | |||
Flip Config | Up/down. Left/right | |||
Audio/Alarm |
| |||
Audio
| Support the microphone input and LINE OUT, support two-way voice intercom equipment | |||
equipment | An external audio equipment | |||
Audio input/output | One channel audio input, one channel audio output | |||
Audio Compression | G.711/G.726 | |||
Alarm input/output | One channel alarm input, one channel alarm output | |||
Alarm way | Motion Detection: Configure motion detection area, detecting sensitivity is adjustable Cover alarm: The alarm sensitivity is adjustable | |||
Alarm processing | The control center to monitor, Go to PTZ preset pos, send E-mail, Log record, SD card storage etc | |||
Network |
| |||
Protocal
| HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF, 28181 | |||
Ethernet | Ethernet(10/100 Base-T), RJ-45 connector | |||
Safety
| IP address filtering, User level password protection, The user access log | |||
Software |
| |||
WEB Browser
| Microsoft Internet Explorer 6.0 and above, goole, firefox, etc | |||
Mobile Phone
| Support iPhone, Android, Bit rate: 32K-521K adjustable Frame rate: 6-12fps | |||
Software Management | CMS and the devices Compatible with ONVIF | |||
Software intelligence function | Motion detection, Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. | |||
Event action
| Files are stored to the back and equipment, Send E-mail, send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset pos etc. | |||
Remote Access | DDNS, Software, P2P | |||
Physical properties
|
| |||

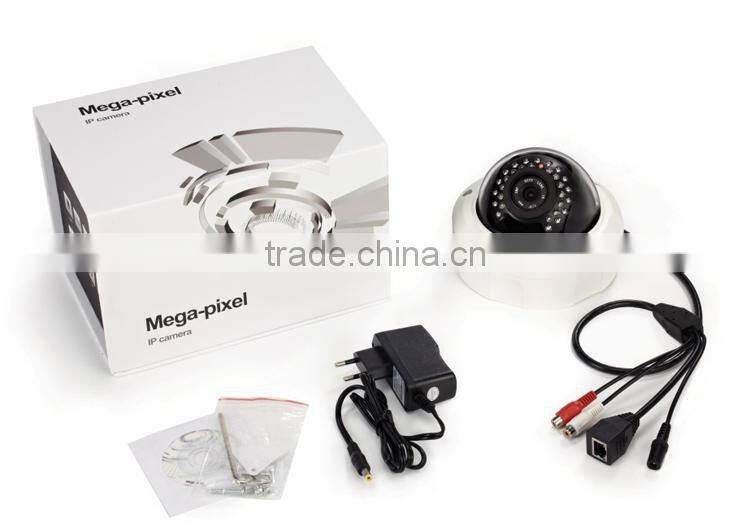

Accessories | Power adapter, CD, Screw bag | |||
Power Comsumption
| DC12V, Module power consumption is less than 2W | |||
Temperature | -20~60 | |||
Humidity | -10~85% | |||
Weight | 2KG | |||
Certification | CE, FCC | |||
