Specifications

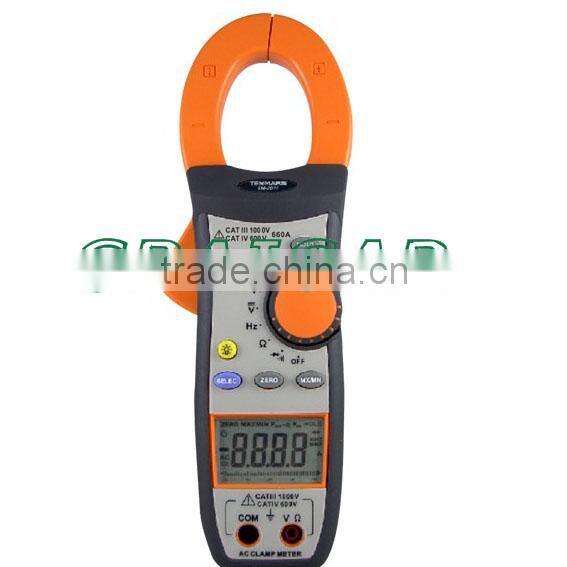

Model No.: TM-2011 Product Description CAT IV 600V, CAT III 1000V 3-3/4 digit LCD backlit display and bargraphDouble injection outer case TM-2011 660A AC Clamp Meter
Product Description
CAT IV 600V, CAT III 1000V
3-3/4 digit LCD backlit display and bargraph, with maximum reading of 4000.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
Resistance measurement to 4000 ohms.
Data Hold, Peak Hold, Min/Max, Autoranging.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Low battery indication
- Specification
Maximum Current | 660 Amps |
Display | 4000 counts |
Max. Conductor Size | 40mm |
AC Current | 0.1A to 660A |
AC Voltage | 0.1V to 750V |
DC Voltage | 0.1V to 1000V |
Resistance | 1Ω to 4000Ω, |
Continuity Buzzer | Yes |
Diode | Test voltage |
Frequency | 1Hz to 400KHz |
Analog Bargraph | Yes |
Backlit Display | Yes |
Work Light | Yes |
Autoranging | Yes |
Auto Power Off | Yes |
Peak Hold | Yes |
Data Hold | Yes |
Min/Max | Yes |
Dimensions | 252mm (L) x 91mm (W) x 22mm (D) |
