Place of Origin Guangdong, China
Brand Name UNI-T
Model Number UT501A
Display Type Digital Only
Measuring Range 3MΩ-2GΩ
Testing Voltage C:30V-750V,DC:30V-1000V
Operating Temperature 0℃~40℃
Dimensions 150*100*71mm

Digital Insulation Resistance Meter UT501A ,0-1000V , up to 5.5G ohm Multi-function Ohm Tester

Digital Insulation Resistance Meter UT501A ,0-1000V , up to 5.5G ohm Multi-function Ohm Tester





Introduction

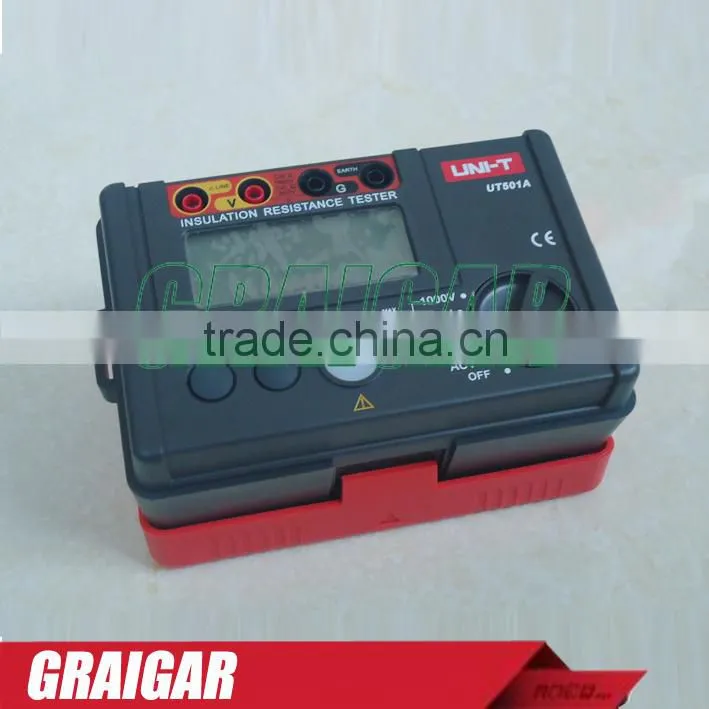

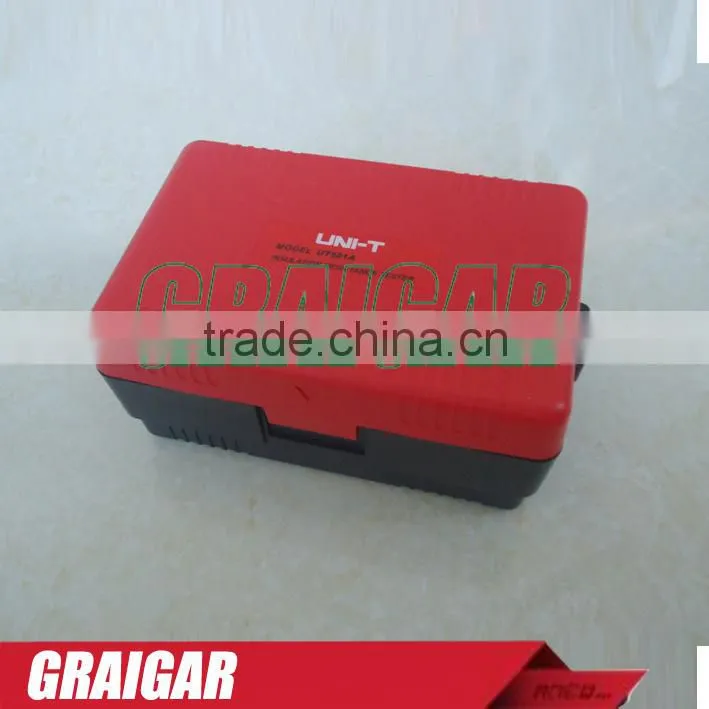

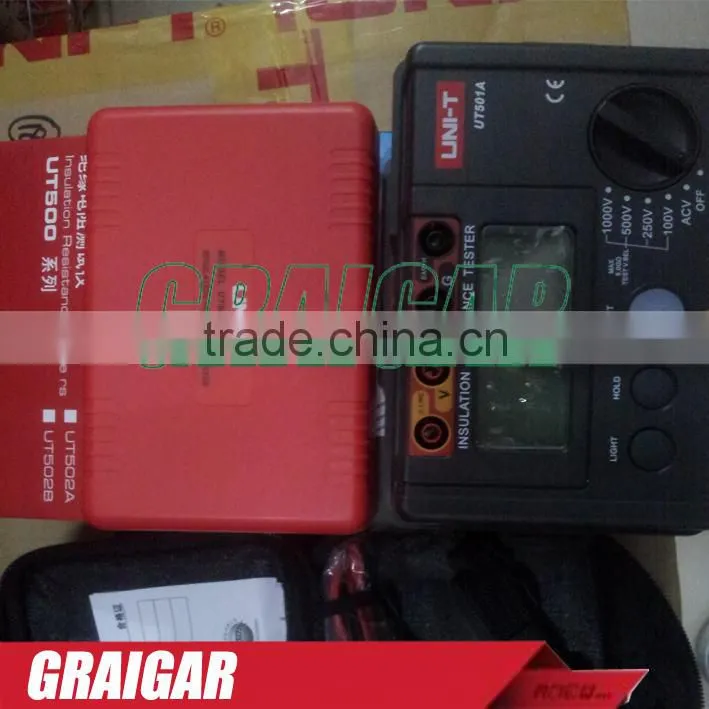

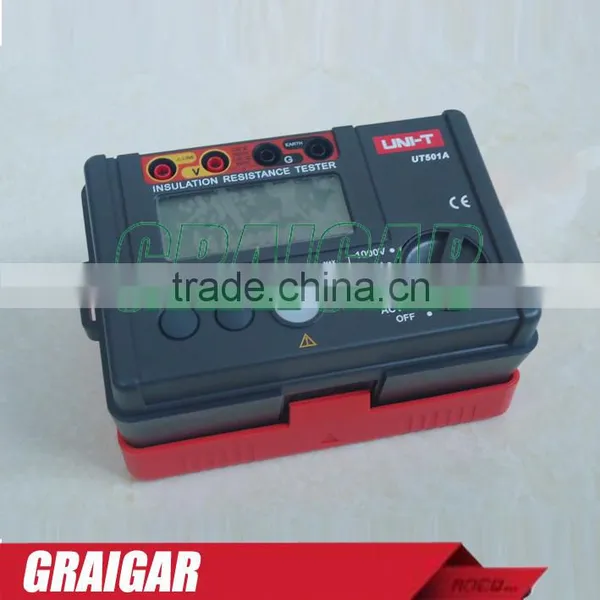

UT501A Insulation Resistance Tester is designed with brand new design and combination of massive integrated and digital circuits; it can measure insulation resistance, AC voltage, etc, and enjoys high degree of accuracy, stable performance, easy operation and reliability.


It is used for insulation resistance measurement for insulation materials and various kinds of electric equipments such as transformer, electric machines, cables, switches, electrical appliances, a ideal tool for electric equipment maintenance, testing and inspection.



Specification

Specifications

 Range Best Accuracy
Model   UT501A UT501B
Insulation Resistance(Ω) Test Voltage 100V/250V/500V/1000V 0%-10%
250V/500V/1000V   0%-10%
100V 0.00Mohm-100Mohm +/-(3%+5)
250V 0.00Mohm-99.9Mohm +/-(3%+5) +/-(3%+5)
100Mohm-5.5Gohm +/-(5%+5) +/-(5%+5)
500V 0.00Mohm-99.9Mohm +/-(3%+5) +/-(3%+5)
100Mohm-5.5Gohm +/-(5%+5) +/-(5%+5)
1000V 0.00Mohm-99.9Mohm +/-(3%+5) +/-(3%+5)
100Mohm-5.5Gohm +/-(5%+5) +/-(5%+5)
Load Current 50V(R=50Kohm) 1mA 0%-10% 0%-10%
100V(R=100Kohm) 1mA 0%-10% 0%-10%
250V(R=250Kohm) 1mA 0%-10% 0%-10%
500V(R=500Kohm) 1mA 0%-10% 0%-10%
1000V(R=1Mohm) 1mA 0%-10% 0%-10%
Short Circuit Current   <2mA <2mA
Low Resistance (Ω) 0.01ohm~200ohm (about 5.0V/>200mA   +/-(2%+3)
AC Voltage (V) 30V~750V +/-(2%+3)
30V~600V   +/-(2%+3)
Features
Display Count   2000 2000
DAR 60s/15s and 60s/30s   √
PI     √
Auto Range   √ √
Low Battery Indication   √ √
LCD Backlight   √ √
Alarm Light Display   √ √
Alarm Buzzer   √ √
High Voltage Indication   √ √
Over Load Indication   √ √
Auto Disharge   √ √
Test Voltage Vice Display   √ √
10MΩ Internal Resistance Test   √ √
General Characteristic
Power 1.5V BatteriesR6) × 6
LCD Size 70.6mm x 34mm
Product Color Red and Grey
Product Net Weight 500 g
Product Size 150mm x 100mm x 71mm
Standard Accessories Batteries,  Probe, Alligator Clip, Test Lead,  Gallus
Standard Individual Packing Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton 20 PCs
Standard Carton Measurement 500mm × 380mm × 330mm (0.063 CBM Per Standard Carton)
Standard Carton Gross Weight 10.5 Kg

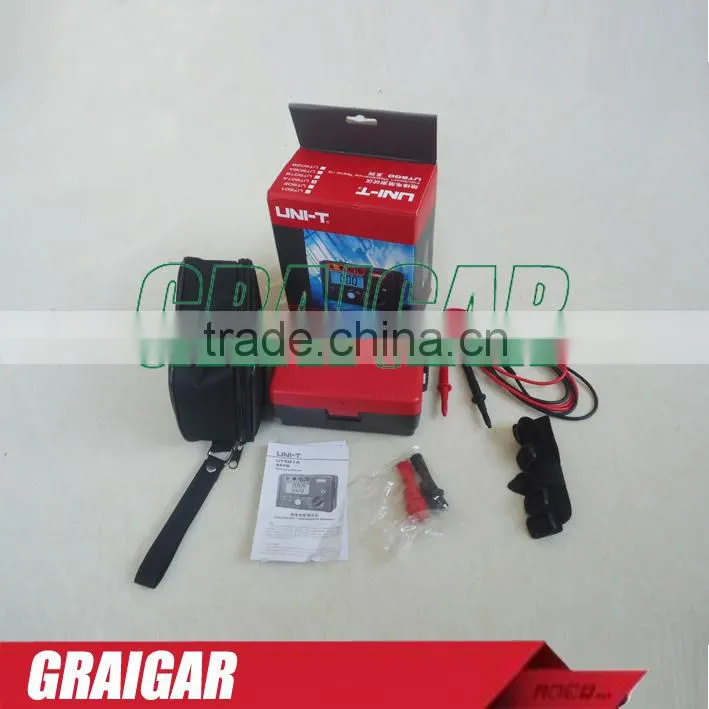

Accessory

1. Batteries, (not included)
2. Probe ,
3. Alligator Clip,
4. Test Lead,
5. Carrying Bag,
6. Gallus
