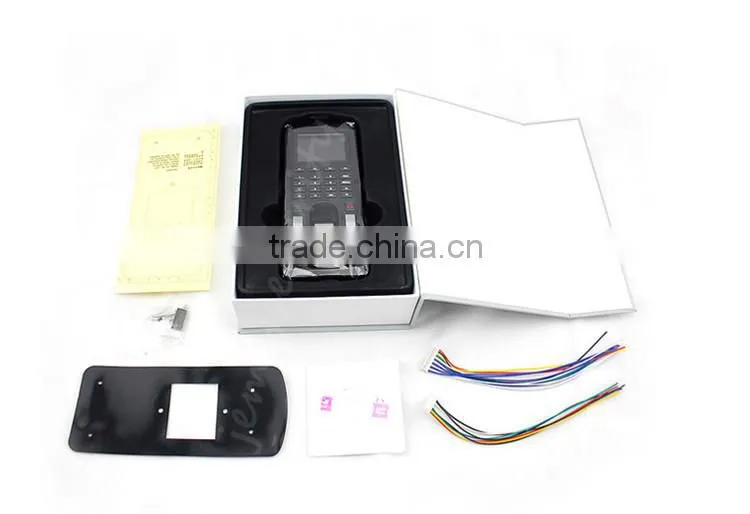

Wiegand in&out Keypad TCP/IP, RS485 biometric fingerprint access controller
1.Brief Introduction: fingerprint access control, fingerprint access control system, tcp/ip access cont rol
JM-F151 is an affortable fingerprint access for office environments, it applies mass reliable import components and
the most advanced fingerprint arithmetic in the world. Its design strictly follows domestic standard of security products,
product must pass the rigid aging test before being sent to customers. It is suitable for office access control and
enterprises’ internal access control, it has the time attendance function as well. It’s stable and safety, so it could satisfy
the requirement for both fingerprint validation of access control system and identity verification.
2. Features: fingerprint access controller, fingerprint access control, biometric access control system
- It’s with the most advanced fingerprint arithmetic in the world, Automatically analyze the tiny difference of
- the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and
- the optimum speed of fingerprint recognition, the identification time is less than 1 second.
- The device is built-in ID card sensor(optional for IC card), validate freely by Card, fingerprint and password
- combination, access control is more flexible and securely.
- Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the
- fingerprint in one device, and share the enrollment information with other devices through the USB flash memory .
- TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access
- control networking and data collection & share freely.
- With multi-level validation, anti-pass back and so on high-end functions of access control
- With tamper alarm, over-time door opening alarm and so on
- Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 record
- With one set lock for output, two sets door release button, those could connect wire or wireless switch.
- One group Wiegand 26/34 output
- Can setup P.segment, P group and access permission without connecting to PC.
- Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
- Support English, French, Spanish, Korean ect different languages.
3.Parameter access control fingerprint system, tcp/ip access control keypad, fingerprint access contro l
Model |
JM-F151 |
LCD Screen |
2.4 inch TFT (320*240) Color Screen |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
Hardware Platform |
REALANDR ZDC2911 |
Algorithm Version |
REALANDR RSFv5.1 |
CPU |
ARM926EJ CPU, Running Frequency: 200MHZ |
Communication |
TCP/IP, RS485, USB Memory Disk |
User Capacity |
1,000 (optional to 2,000 or 3,000) |
Records Capacity |
100,000 |
Software OS |
XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time |
< 1 S |
Authentication Method |
Fingerprint/ RFID Card (125Khz)(could customize Mifare card)/Password |
Language |
Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell |
Built-in timing bell(can connect to external timing bell) |
Access Control Interface |
Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor |
Professional Access Function |
Open door by multilevel verification, anti-pass back |
Power |
DC 12V/2A |
FRR |
<1% |
FAR |
<0.00001% |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1, 1:N |
Operating environment |
Operating Temp: 0°C-50°C, Humidity:80% |
Certificates |
CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product |
|
Dimension(L*W*H)mm
|
Terminal - 181*91*36mm Package – 246*164*71mm |
Weight |
Terminal – 0.48 Kg Package – 0.812Kg |
4.Software Interface fingerprint access control time attendance, biometric fingerprint access control
