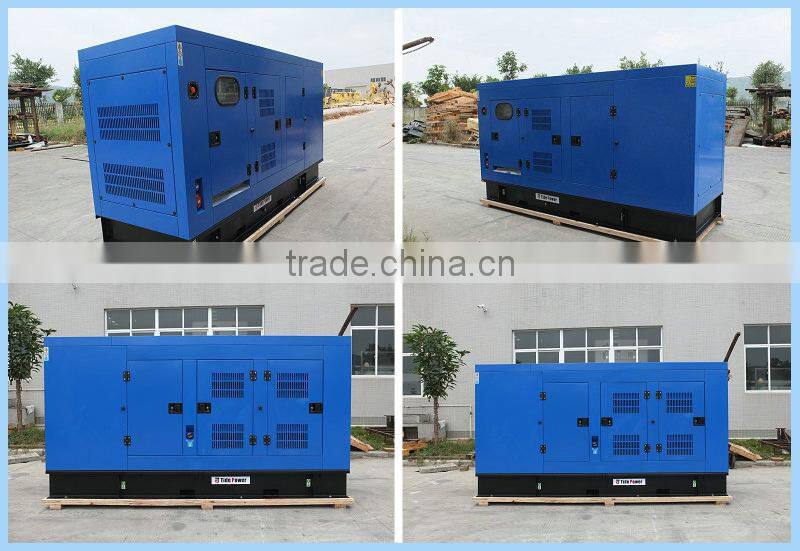

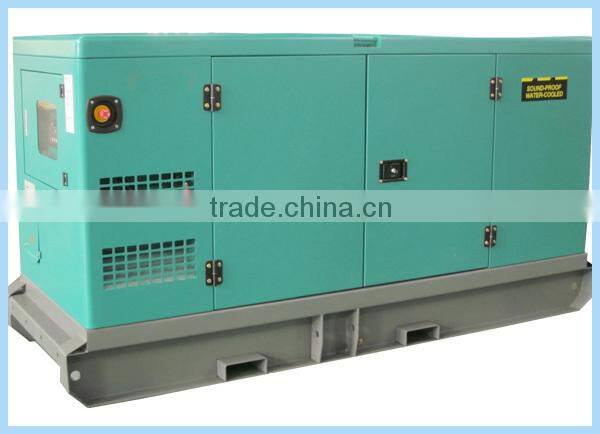

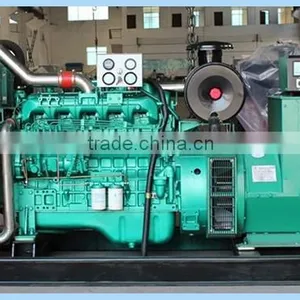

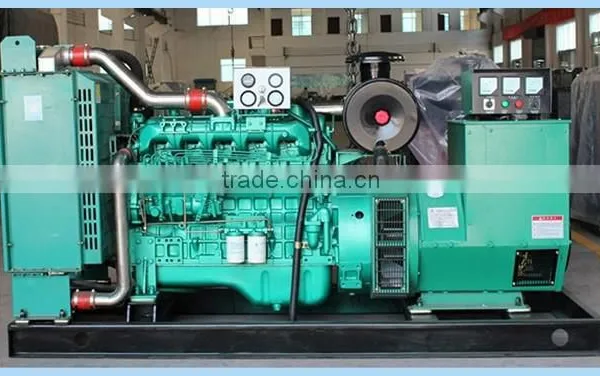

Chinpower Engine 80KW Silent Diesel Generator Set 60HZ 1800RPM/MIN, 380/400/415/440V 3PH Ciesel Time

Name: Chinpower Engine 80KW Silent Diesel Generator Set 60HZ 1800RPM/MIN, 380/400/415/440V 3PH Ciesel Time
Brand: diesel generator
Availability: InStock

FOB Price

US$ 1,145 - 5,120 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	diesel generator
Model Number	Model Number: QD100PS	Output Type	AC Three Phase
Speed	Speed: 1500rpm	Frequency	Frequency: 50HZ
Rated Power	Rated Power:100KVA / 80KW	Rated Voltage	Rated Voltage:400/230V(adjustable)
Rated Current	Rated Current: 144A

Product Description

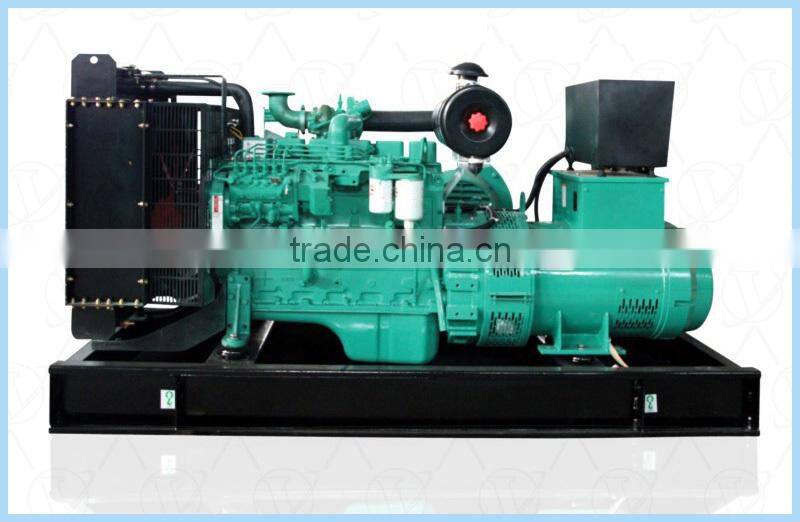

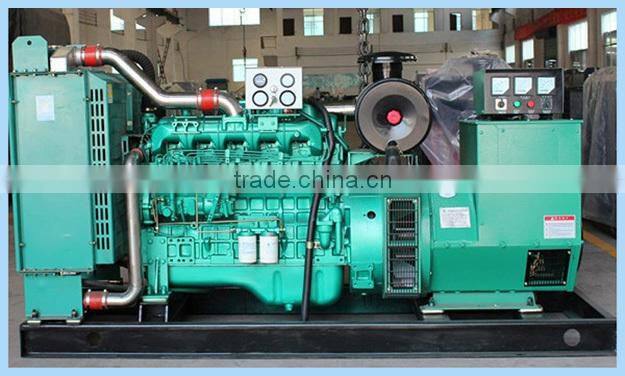

1. Specification of genset
Gensets model	QD100PS
Prime power	80KW/100KVA
Standby power	88KW/110KVA
Rated Voltage	230/400V
Rated frequency(HZ)	50HZ
Rated Speed	1500rpm
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	2888x1115x1700
Genset Weight(kg)	1852
2. Specification of diesel engine
Engine brand	PERKINS
Engine model	1006TG2A
Number of Cylinders, Cylinder arrangement	6,Vertical in-line
Cycle	Four stroke
Standby Rated Output kW	105
Aspiration	Turbocharged, Air / Air Cooling
Fuel System	Direct injection
Bore×Stroke (mm×mm)	100x 127
Displacement (Liter)	5.99
Speed Governor	M
Cooling System	Forced Water Cooling Cycle
Fuel Consumption at 100%/75%/50% Load (L/h)	21.8/16.5/11.4
Starting Method	DC24V electrical starting
3. Specification of alternator
Alternator brand	Stamford
Alternator model	UCI274C
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class	H
Telephone Influence Factor (TIF)	<50
THF	≤2%
Voltage Regulation, Steady State	≤±0.5%
Transient State Voltage	≤-15%~+20%

ISO9001-2008 certificate
Professional manufacturer
Export to Africa, Saudi Arabia, India, Indonesia,Australia

Packaging & Shipping

Our Services

1.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.

4.one-year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
