Construction use concrete mixer and pump for construction
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Brand Name: | BETTER | Model Number: | HBT | Power(W): | 22kw |
Weight: | 2500kg | Dimension(L*W*H): | 3380*1270*1245 | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Concrete mixer trailer concrete mixing pump
Product Description
Adoption of advanced S-valve,can meet the needs of fine stone concrete conveying.
Wear plate and cutting ring are made of anti-wearing horniness alloy,they have long service lives.
High output pressure can satisfy the requirement of high-rise building and construction of long distance transmission.
Equipped with centralized lubrication system,ensure the service life of the rotating part.
The electrical box is equipped with wired remote control handle,easy to operation.
Technical parameters
Model | HBT30-10BT | |
Max. theo. concrete output(m3/h) | Low pressure 32/high pressure 20 | |
Concrete pumping pressure | High pressure(Mpa) | 10 |
Low pressure(Mpa) | 5.5 | |
Pump distance | Vertical conveying height(m) | 130 |
Horizontal transmission distance(m) | 350 | |
Distribution valve type | S Valve | |
Concrete cylinder diameter×stroke | 140×1000mm | |
Allowing the concrete slump(mm) | 100-230 | |
Max. aggregate diameter(mm) | 25/30 | |
Hopper volume(m3) | 0.4 | |
Filling height(mm) | 1000 | |
Rated power(kw) | 45 | |
Capacity of oil tank(L) | 200 | |
Concrete tube conveying diameter(mm) | 76/89 | |
Dynamic model | 3-phase asynchronous motor | |
Hydraulic system | Double circuit opening system | |
The radiator cooling | Air cooling system | |
Hydraulic pump type | Ram pump | |
Electric control | PLC | |
Overall dimension(L×W×H)(mm) | 3770×1420×1620 | |
Total weight(kg) | 2200 |

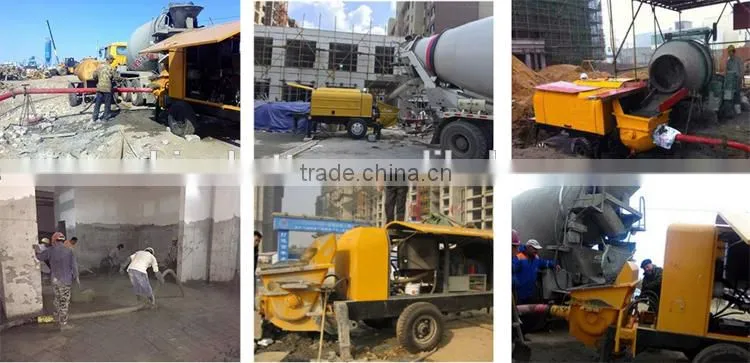

Application
1.Conveying concrete for floor heating,mortar,high-rise building.
2.Transport all kinds of plain concrete,fiber reinforced concrete in engineering construction.
3.Transfer of greening soil in ecological environment construction.
4.The pressure grouting of all kinds of foundation pile.
5.The highway construction transport.
Features
1.Walking with a round, mobile, convenient and flexible
2.Working status using four leg fixed, stable and reliable.
3.Electric cabinet is equipped with remote control handle, all operation function can be remote controlled pump feeding, make the product more human nature.
4.Adopt advanced smooth S tube valve commutation, can satisfy the conveying, and not easy blocking pipe.
5.Glasses plate and the cutting ring adopts high hardness alloy material, longer life.
6.High outlet pressure can satisfy the requirement of high-rise building and construction of long distance transmission.
7.High wear resistance of concrete cylinders, guarantee and increase the service life of the pump, to reduce the user's maintenance costs.
