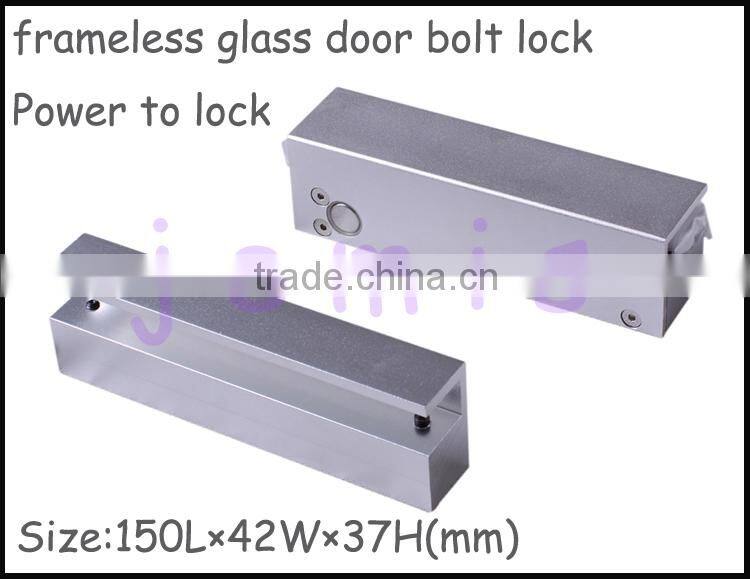

Fail Safe Electric Bolt Lock for Frameless Glass Door / Wooden Door / Aluminum Door JM-160A
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Electric Bolt Lock for Frameless Door Support 0/2.5/5 Seconds Time Delay JM-160A
-
Electric Dead Bolt Lock Customize for Frameless Glass Door / no Frame Door JM-160A
-
Electric Dead Bolt Lock JM-160A
-
12v Electric Drop Bolt Lock Keep in Low Temperature on Working JM-160A
-
Electric Drop Bolt Lock / Electric Lock for Access Control System / Especially for no Frame Glass Door JM-160A
-
Frameless Glass Electric Bolt Lock 12v 0/2.5/5 Seconds Time Delay JM-160A
Product Details
| Place of Origin | Guangdong, China | Brand Name | Jemis | |
| Model Number | JM-160A |
Product Description
Frameless Glass Electric Bolt Lock 12V 0/2.5/5 Seconds Time Delay
Introduction: Electric Bolt Lock
DC power plug, power locks, transmission and use copper gear, torque, long life,on-site installation, testing more than 100 million times, wide operating voltage range, current,and low operation temperature; the lock core detection and door state detection ,Sound the alarm. Protection function, is an ideal choose for the security industry. Suitable for frameless glass door, without doorframe.

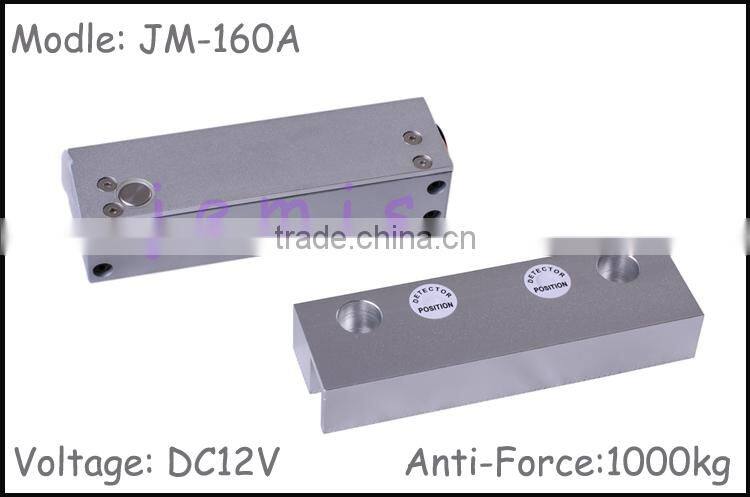

Model: JM-160A Electric Bolt Lock
| Suitable For : | 8-12mm Fully Frameless Glass Door |
| Fail Safe : | Lock when energized(NC) |
| Lock Size : | 150L×42W×37H(mm) |
| Bracket size: | 150L×42W×37H(mm) |
| Voltage : | DC12V |
| Start Current : | 900mA |
| Working Current: | 120mA |
| Solid Bolt : | polishing housing, 1000kg Holding Force |
| Signal Output : | Door Status Output,NO/COM |
| Autolock Time Delay : | 0/2.5/5 seconds time delay |
| Surface Temp: | Low temperature |
| Induction Distance : | 10mm |
| Operating temp: | -10~+25C(14-131F) |
| Operating Humidity: | 0~90%(non-condensing) |
| Special Designed: | Tested to 500000 operations |

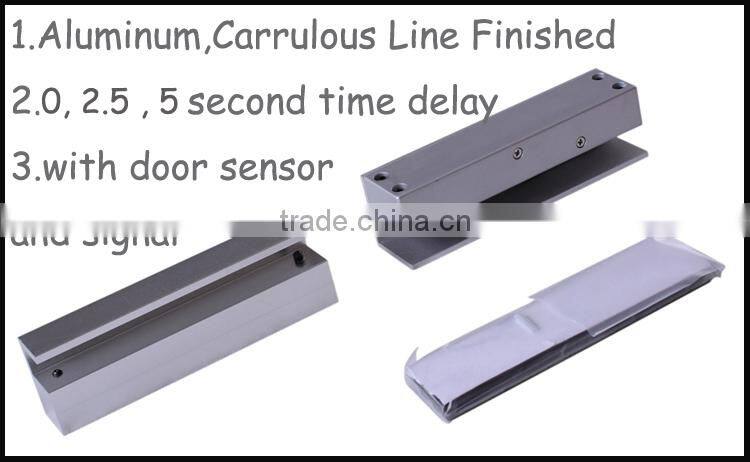

| Face place material: | High Aluminum,Carrulous Line Finished |
| Weight: | 1.2kg |

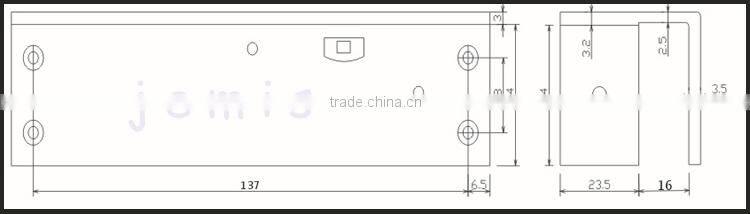

Manuscript: Electric Bolt Lock

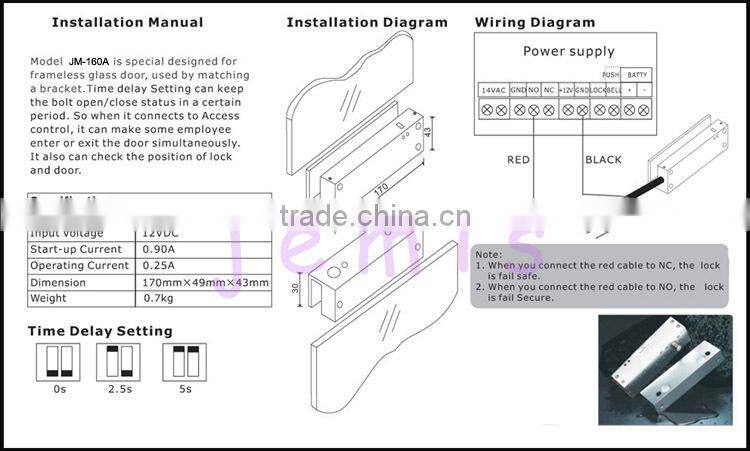

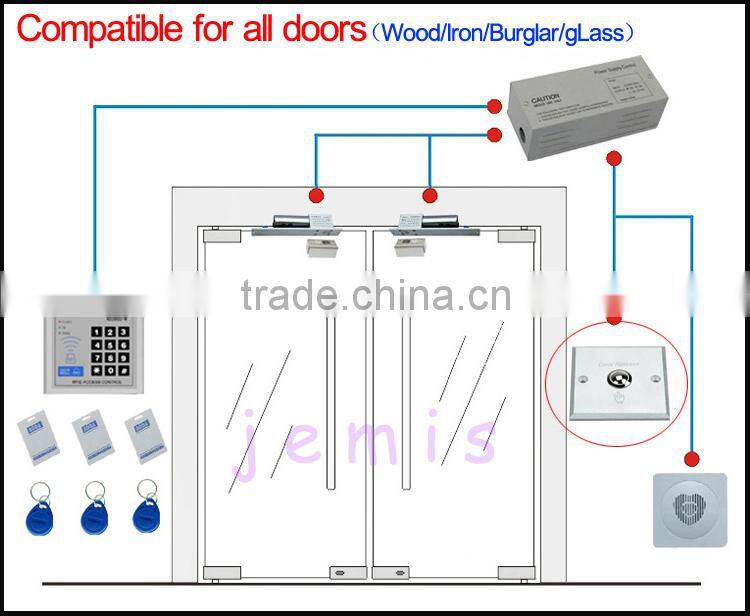

lnstallation: Electric Bolt Lock

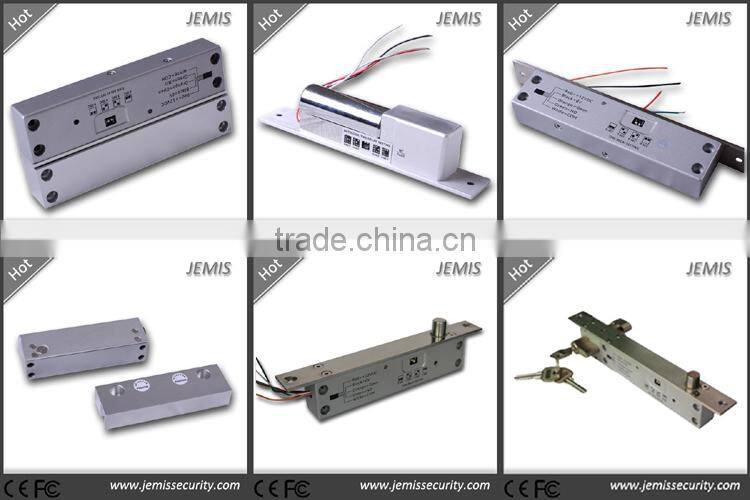

All Models: Electric Bolt Lock
Packing: Electric Bolt Lock

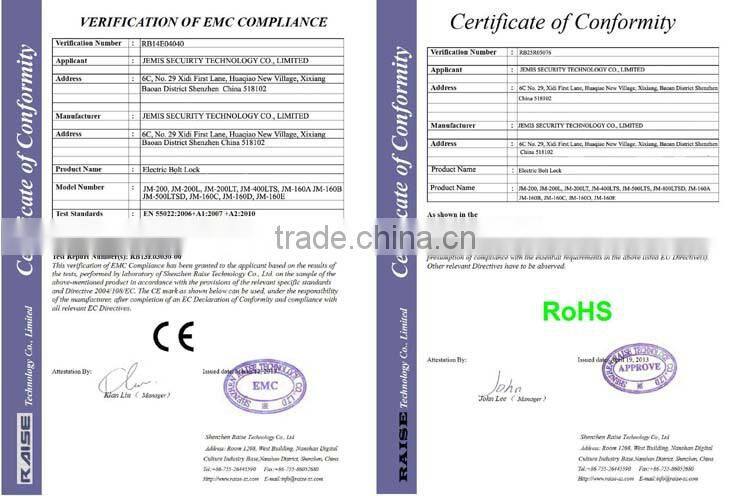

Certification: Electric Bolt Lock

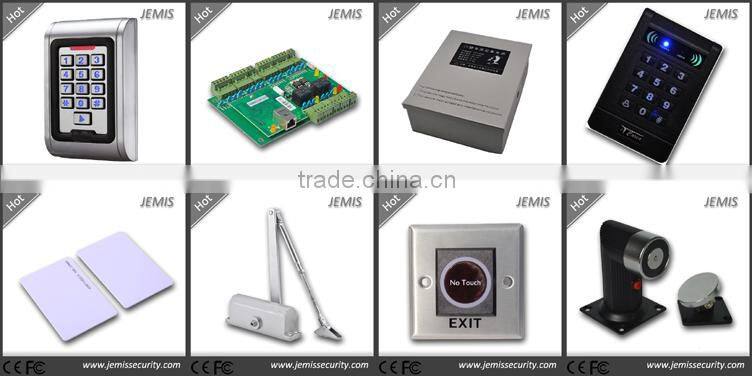

Ralative Products for Access Control System:

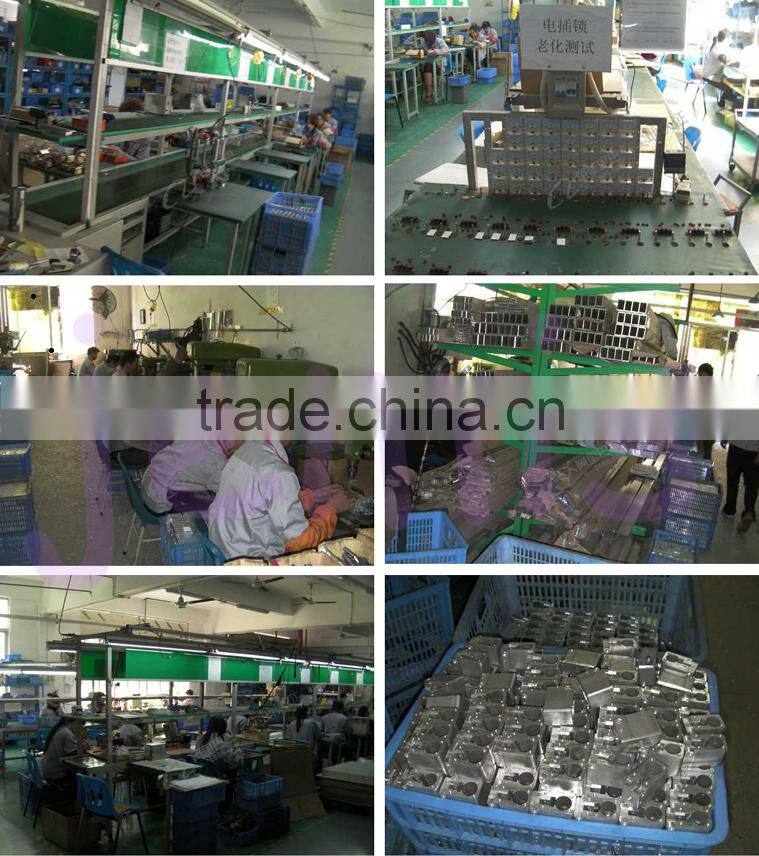

Our Workshop: Electric Bolt Lock
Trading Conditions: Electric Bolt Lock
1. Delivery time: Delivery time might need take3~5 days after payment. it's also acceptable if you have your own forwarder.
2. Shiping way: We accept shipment via DHL, Fedex, Air and Sea, it's also acceptable if you have own forwarder.
3. Payment: T/T, West Union, Paypal are acceptable
4. Packing: All the products packing by durable Carton box
Warranty: Electric Bolt Lock
Two years warranty, maintenance forever, change within 3 months because of product quality
