Electric Dead Bolt Lock Hanging Instal Stead for Electromagnetic Lock JM-160D

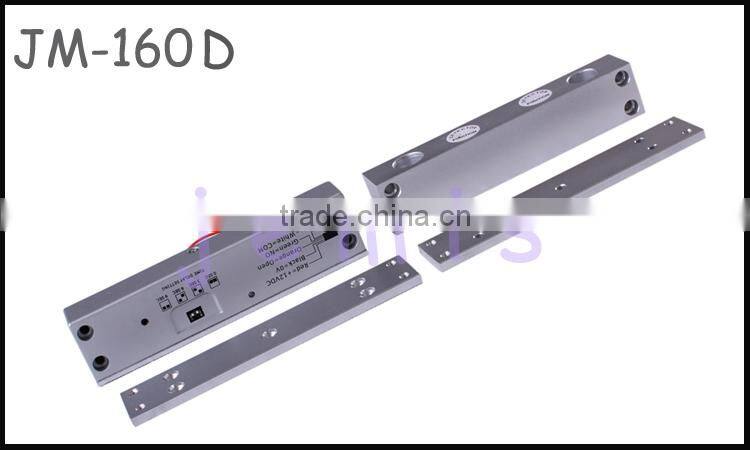

Electric Dead Bolt Lock Hanging Instal Stead for Electromagnetic Lock JM-160D photo-1
US$ 12 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Jemis
Model Number:
JM-160D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Jemis
Model Number JM-160D

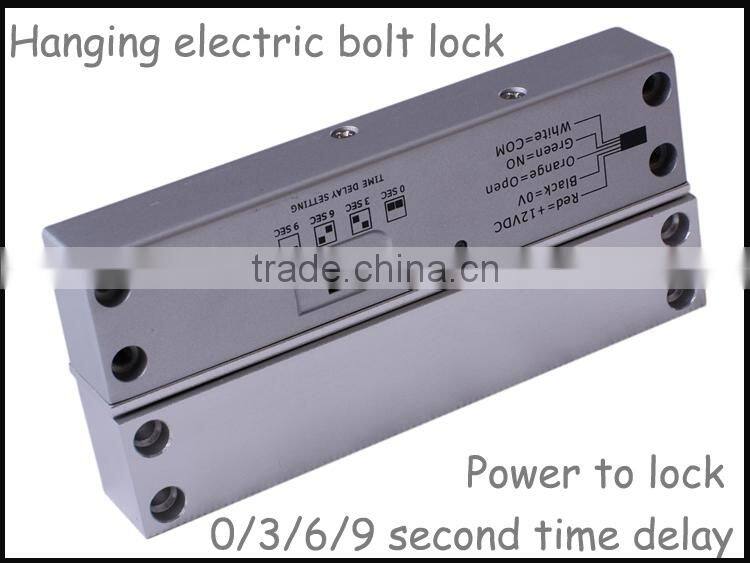

Hanging Electric Bolt Lock 12V  0/3/6/9 Seconds Time Delay

Introduction:                                                                                         Electric Bolt Lock

DC power plug, power locks, transmission and use copper gear, torque, long life,on-site installation, testing more than 100 million times, wide operating voltage range, current,and low operation temperature; the lock core detection and door state detection ,Sound the alarm. Protection function, is an ideal choose for the security industry. Suitable for Narrow Frame Door.

Model: JM-160A                                                                                    Electric Bolt Lock

Suitable For : Narrow Frame Door
Fail Safe :Power on to lock
Special: Hanging Electric bolt lock, can replace electromagnetic lock
easy to install : When installation with fixed bracket
Voltage : DC12V
Start Current :900mA
Working Current:120mA
Solid Bolt : polishing housing, 1000kg Holding Force
Signal Output : Door Status Output,NO/COM
Autolock Time Delay :0/3/6/9 seconds time delay
Surface Temp: Low temperature
Induction Distance : 10mm
Operating temp: -10~+25C(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Face place material: High Aluminum,Carrulous Line Finished
Weight:1.2kg

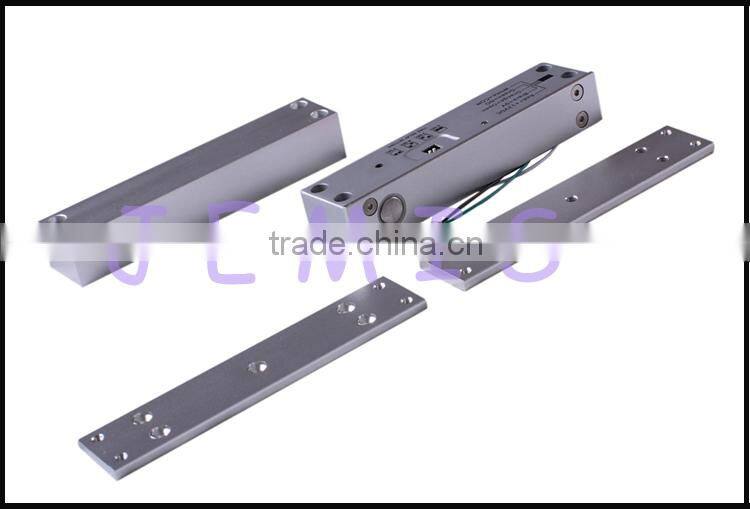

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

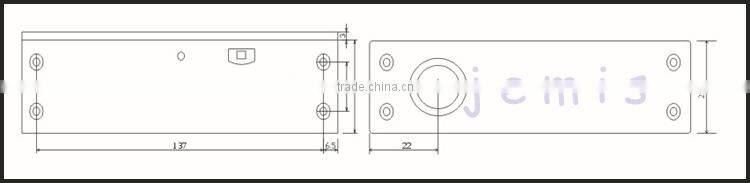

Manuscript:                                                                                           Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

lnstallation:                                                                                            Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

All Models:                                                                                             Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

Packing:                                                                                                  Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

Certification:                                                                                         Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

Ralative Products for Access Control System:

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

Our Workshop:                                                                                     Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D

Trading Conditions:                                                                                                         Electric Bolt Lock

1. Delivery time: Delivery time might need take3~5 days after payment. it's also acceptable if you have your own forwarder.

2. Shiping way: We accept shipment via DHL, Fedex, Air and Sea, it's also acceptable if you have own forwarder.

3. Payment: T/T, West Union, Paypal are acceptable

4. Packing: All the products packing by durable Carton box

Warranty:                                                                                                                               Electric Bolt Lock

Two years warranty, maintenance forever, change within 3 months because of product quality

Contact:                                                                                                    Electric Bolt Lock

electric dead bolt lock hanging instal stead for electromagnetic lock JM-160D
