Product Details
| Place of Origin | Guangdong, China | Brand Name | Jemis | |
| Model Number | JM-280GF |
Product Description
High security electromagnetic lock sliding door for access control machine
Model: JM-280GF
Features:
1. Door status, lock status monitoring output
2. Dual voltage selectable (12VDC or 24VDC)
3. Low current consumption
4. Reliable holding force
5. High strength material, anodized aluminum housing
6. Anti-residual magnetism designed
7. Durable and silence operation
8. CE Certificate by European Union
Specification:
| Type: | Hanging Electromagnetic Lock |
| Holding Force: | 280kg/600lbs |
| More function: | LED Feedback indicator |
| Voltage: | 12V/24V Adjustable |
| Size: | 250L*47W*26H(mm) |
| Safety mode: | power-on to lock |
| Bracket choose: | L bracket for outswing door, L+Z bracket for inswing door |
| Certification: | CE, Rosh |
| Weight: | 2kg |
| Suitable for: | Wooden door , Glass door ,Metal door , Fireproof door |
| Model | JM-60G | JM-180AF | JM-180GF | JM-180GSF | JM-280GF | JM-280AF | JM-280GFS |
| Voltage | 12V/24V +10% | ||||||
| Current | 300mA/DC12V 150mA/DC24 | 600/DC12V | 480mA/DC12V | 960mA/DC12V | |||
| 300/DC24V | 240mA/DC24V | 240mA/DC24V | |||||
| Max Straight | 60kg(120Lbs) | 180kg (300Lbs) | 180kg (300Lbs) | 180kg (300Lbs)*2 | 280kg (600Lbs) | 280kg (600Lbs) | 280kgx2 (600Lbsx2) |
| direction pull | |||||||
| Durability | 500,000 times | ||||||
| Weight | 0.5kg | 1.2kg | 1.2kg | 2.4kg | 2kg | 2kg | 4kg |
| Dimension(mm) | 80*35*19 | 170*35*21 | 190*32*21 | 340*35*21 | 250*42*25 | 231*41*24 | 500*42*25 |
| Lock: | |||||||
| Dimension(mm) | 65*33*11 | 130*33*9.3 | 130*33*9.3 | 130*33*9.3 | 180*38*11 | 180*38*11 | 180*38*11 |
| Iron Block: | |||||||
| Suitable Door | File cabinet,locker | single Glass , | single Glass , | Double Glass , | single Glass , | single Glass , | Double Glass , |
| wooden, | wooden, | wooden, | wooden, | wooden, | wooden, | ||
| Wardrobe | fire doors | fire doors | fire doors | fire doors | fire doors | fire doors | |

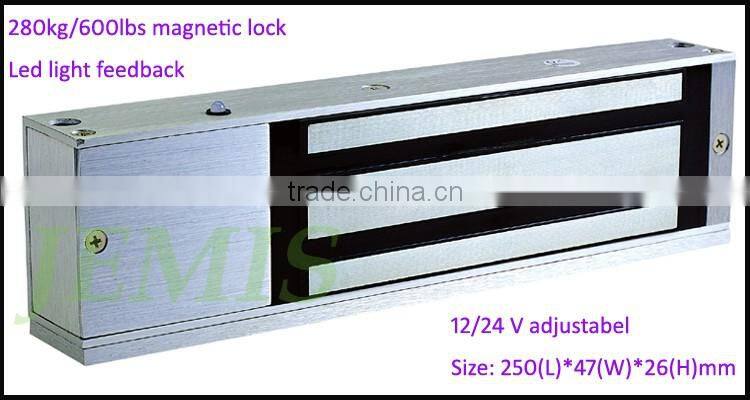

Size:

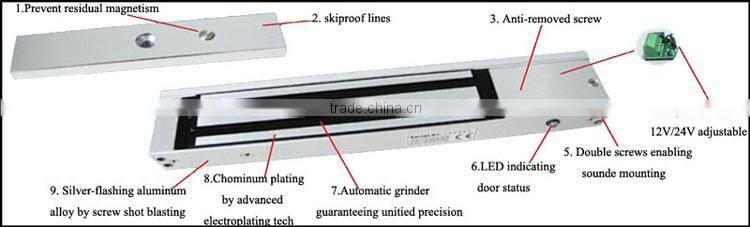

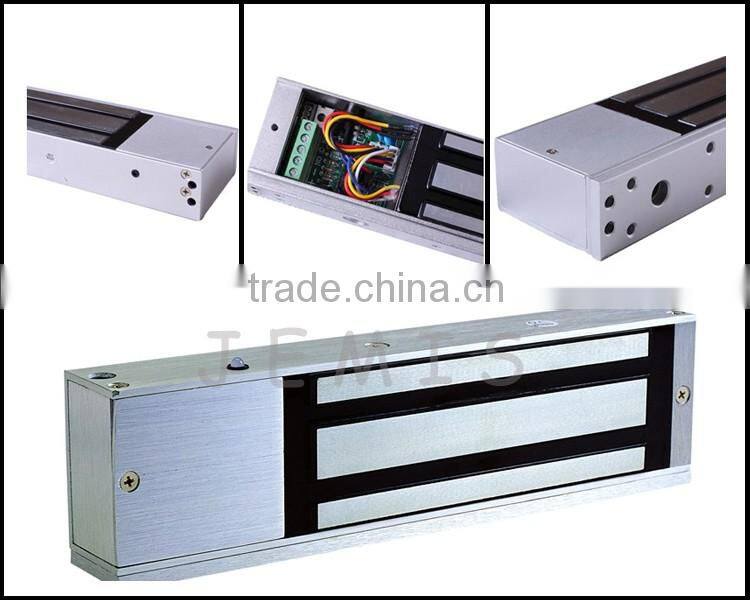

Details Design:

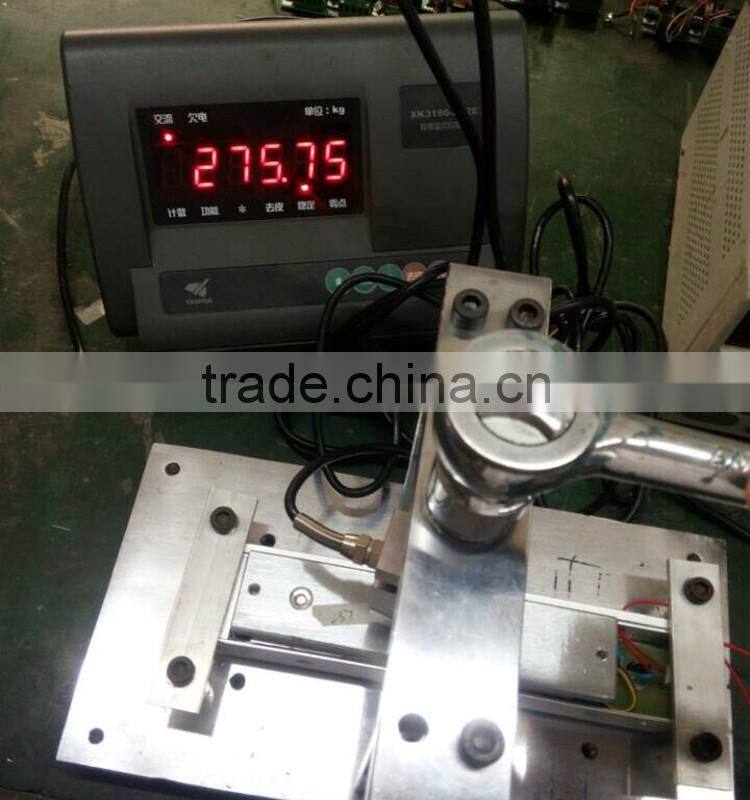

Testing:

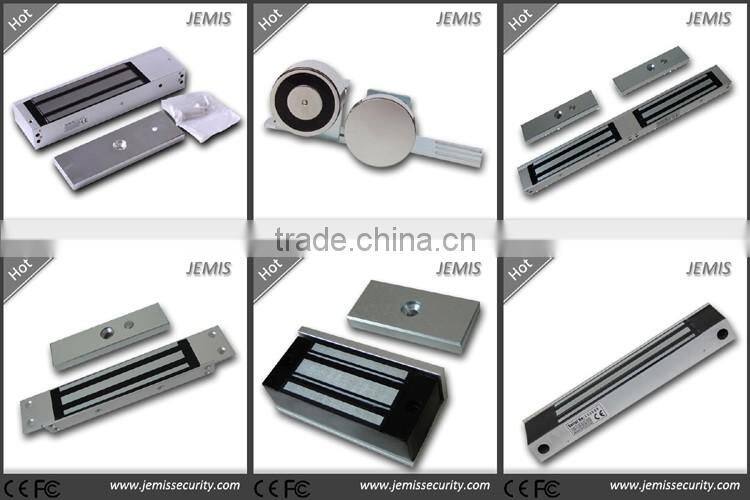

Relative Magnetic Lock:
Our Design:

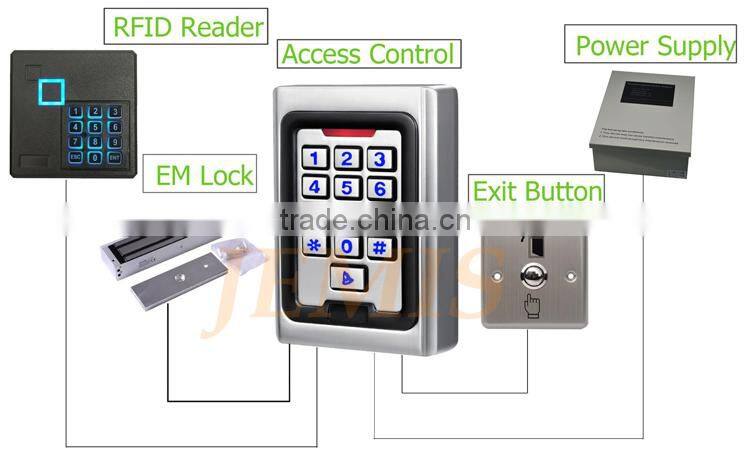

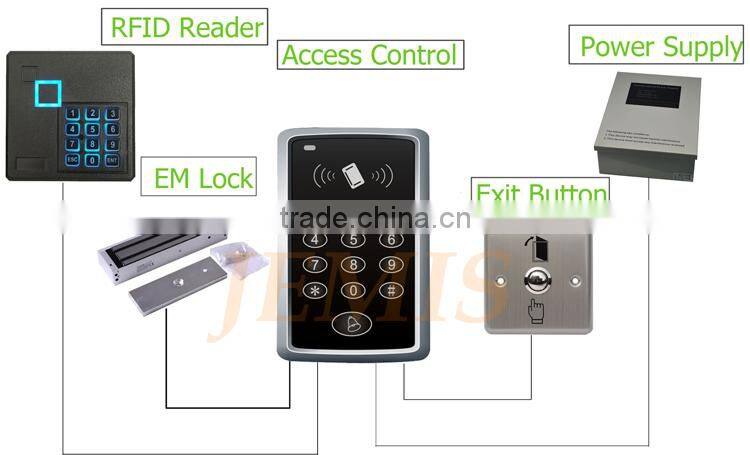

Connections:

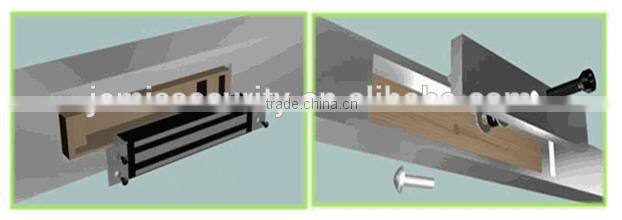

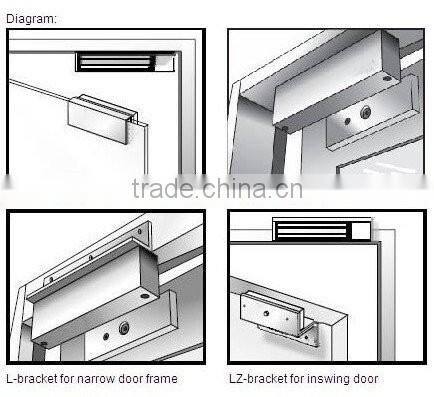

Install:

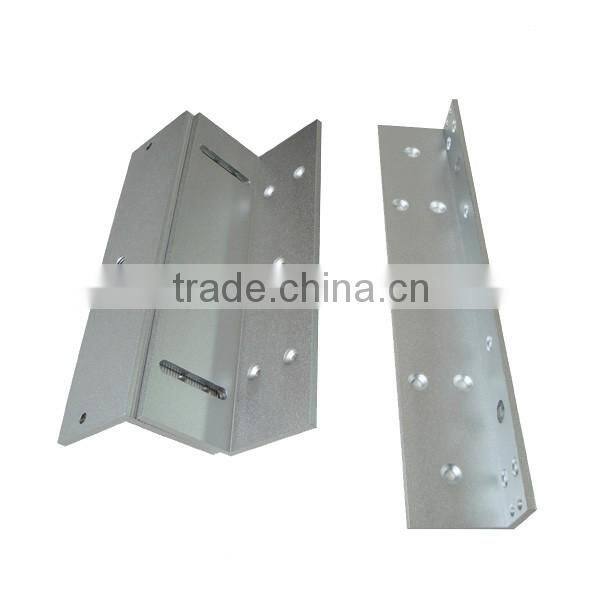

Accessories of ZL Bracket:
Payment terms:
We accept TT, Paypal, Western Union;
Small amount by Paypal or Western Union; Big amount by bank transfer;
30%~50% deposit of total payment before bulk production, balance will be done before delivery;
Shipping terms:
Shipping method: DHL, Fedex, UPS, EMS, or TNTexpress;
Small quality within 5-7 work days after receipt of remittance; large quantity within 14 work days after receipt of remittance;
Warranty of products:
2 years, mainteenance forever, change within 3 months be cause of products quality;
