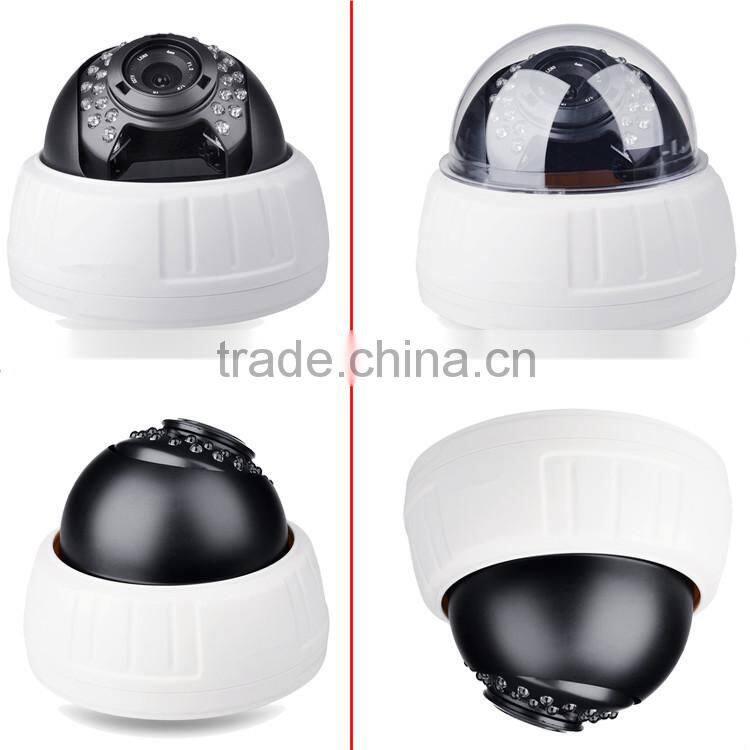

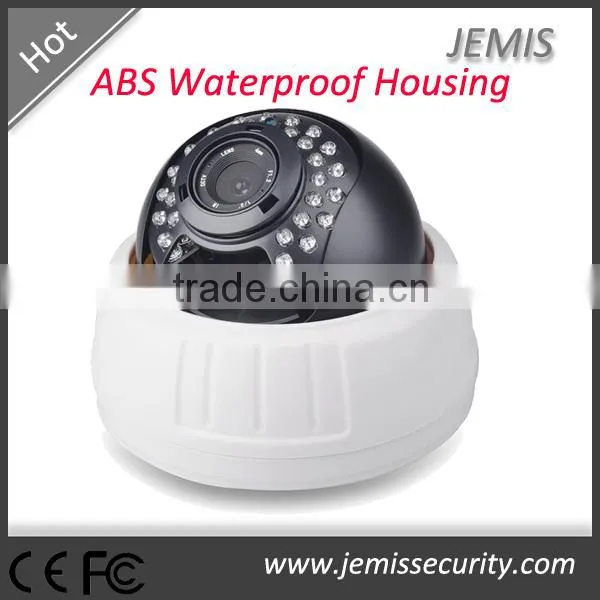

Sony CCD 480tvl Dome ABS Waterproof Housing IR Cctv Camera Housing

Name: Sony CCD 480tvl Dome ABS Waterproof Housing IR Cctv Camera Housing
Brand: Jemis
SKU: 130760443
Availability: InStock

US$ 15 - 20 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jemis

Model Number:

JM-SE126

Shenzhen Jemis Security Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jemis

Model Number JM-SE126

Type Analog Camera

Style Dome Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Sony CCD 480tvl dome ABS Waterproof Housing IR cctv camera housing

Product Description

Model NO.	JM-SE126
VIDEO
Image Device	1/3"SONY SUPER HAD CCD Sony Effieo 4140+673 CCD
TV System	PAL/NTSC
Total Pixels	PAL:1020(H)*596(V);NTSC:1020(H) x 508(V)
Effective Pixels	PAL:976(H) x 582(V);NTSC:976(H)*494(V)
Scanning System	2:1 Interlace
Synchronization	Internal
Horizontal Resolution	480TVL
Min. Illumination	0Lux(IR-ON )
S/N Ratio	>50dB
Video Output	1Vp-p,75ohm, BNC
LENS
Focal Length	3.6/6/8mm fixed lens
OPERATIONAL(For OSD)
SHUTTER/AGC	AUTO
BACKLIGHT	ON/OFF
MIRROR	ON/OFF
BRIGHTNESS	AUTO
CONTRAST	1-128
SHARPNESS	1-128
HUE	1-128
GAIN	AUTO
MOTION DETECTION	ON/OFF
DETECT SENSE	0-111
BLOCK DISP	ON/OFF
MONITOR AREA	ON/OFF (4 AREA)
Privacy Mask	ON/OFF (4 AREA)
CAMERA ID	ON/OFF
ATR	ON/OFF
Noise Reduction	2D-DNR
NR MODE	Y/C(Y LEVEL 0-4;C LEVEL 0-4)
HLC	ON/OFF
OSD Menu	8 languages
White Pixel Detection and Compensation	Static and Dynamic
External Synchronization	Line-Lock
White Balance	ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK
BURST	ON/OFF
DELAY CNT	0-10
Electronic Shutter Speed	PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec
IR Distance	30pcs ir leds with 20m distance
Infrared Spectrum	850nm
ENVIRONMENTAL
Operation Temperature	-10℃~ +50℃
Storage Temperature	-20℃~ +50℃
Vandal-proof Casing	Outdoor(IP66 waterproof)
ELECTRICAL
Input Voltage/Current	DC12V,<600mA
Adapter Requirement	DC12V 1.5A
