Help CenterNew Factory 280KG/600Lbs 12v 24v Electromagnetic Lock(JM-280GF)
Related Products
-
Fail-safe DC 12V Electric Bolt Lock(JM-200)US$ 12 - 25MOQ: 10 Pieces -
Cerradura 12V EM Para el Sistema de Huella Digital de Control de Acceso Sistema de Control de Acceso JM-280GFUS$ 11 - 85MOQ: 50 Pieces
-
12V EM Lock for Access Control System Fingerprint Access Control System JM-280GFUS$ 11 - 85MOQ: 50 Pieces
-
Fail-secure 600lbs Single Door Electromagnetic Lock 12V/24V Adjustable JM-280GFUS$ 12 - 22MOQ: 1 Piece
-
Single Door Electric Lock Magnetic Lock With 280kg/600lbs Holding Force for Access Control SystemUS$ 12 - 22MOQ: 1 Piece
Specifications
-12v 24v electromagnetic lock-Holding Force:280kg/600Lbs
-Size:250L*47W*26H(mm)
-With Indicator Light
-DC12V/DC24V

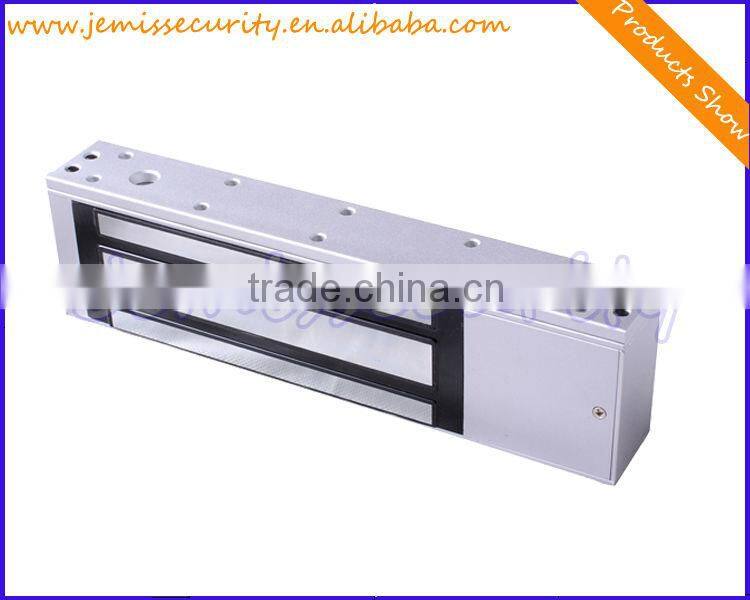

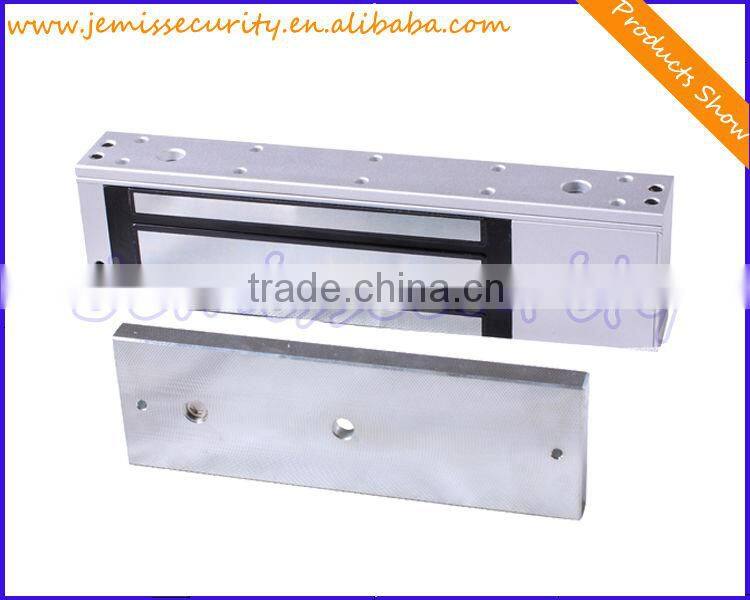

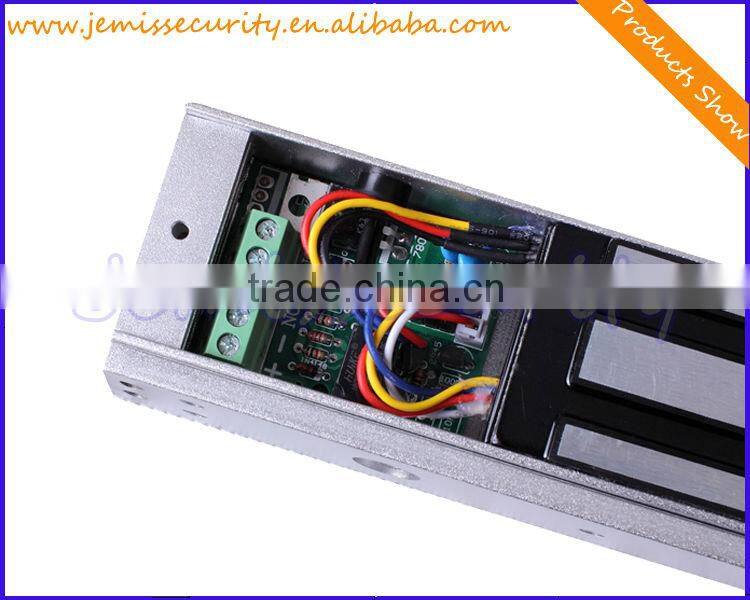

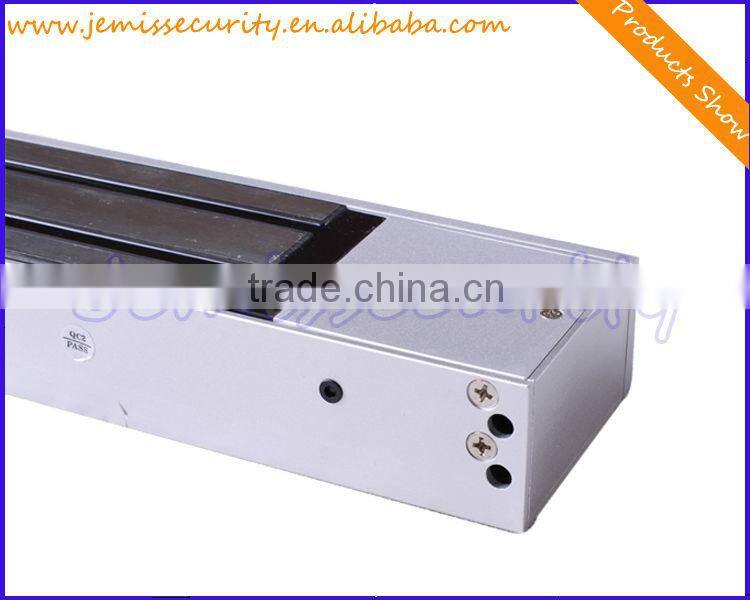

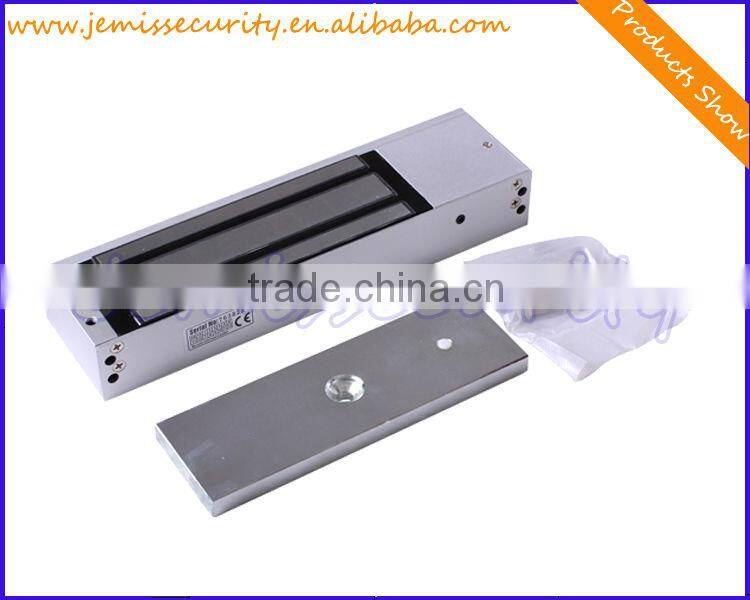

New Factory 280KG/600Lbs 12v 24v electromagnetic lock(JM-280GF)
Features
1.Safety mode: power-on to lock
2.Voltage:DC12V or DC24V can adjust
3.Current Draw: 12V/480mA 24V/240mA
4.Finishes for Shell:Anodized aluminum & surface texture processing
5.LED indicates the door is unlock,Green indicates the door is lock
6.No residual magnetism, no mechanical damage
7.Suitable for: 90 degrees open for all kinds of doors with frame
8.Bracket choose: L bracket for outswing door, L+Z bracket for inswing door
Specification
| Product | 280kg/600Lbs Electromagnetic Lock with door position detection output |
| Lock Size | 250L*47W*26H(mm) |
| Armature plate | 161L*40W*23H(mm) |
| Voltage: | DC12V or DC24V (adjustable) |
| Current Draw | 12V/480mA 24V/240mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Suitable Humidity | 0~90% (non-condensing) |
| Finishes for Shell | Anodized aluminum & surface texture processing |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 12pcs |
Hot Sale Products
<
| Model | JM-60G | JM-180AF | JM-180GF | JM-180GSF | JM-280GF | JM-280AF | JM-280GFS |
| Voltage | 12V/24V +10% | ||||||
| Current | 300mA/DC12V 150mA/DC24 | 600/DC12V | 480mA/DC12V | 960mA/DC12V | |||
| 300/DC24V | 240mA/DC24V | 240mA/DC24V | |||||
| Max Straight | 60kg(120Lbs) | 180kg(300Lbs) | 180kg(300Lbs) | 180kg(300Lbs)*2 | 280kg(600Lbs) | 280kg(600Lbs) | 280kgx2(600Lbsx2) |
| direction pull | |||||||
| Moisture | 0~95% | ||||||
| Durability | 500,000 times | ||||||
| Weight | 0.5kg | 1.2kg | 1.2kg | 2.4kg | 2kg | 2kg | 4kg |
| Dimension(mm) | 80*35*19 | 170*35*21 | 190*32*21 | 340*35*21 | 250*42*25 | 231*41*24 | 500*42*25 |
| Lock: | |||||||
| Dimension(mm) | 65*33*11 | 130*33*9.3 | 130*33*9.3 | 130*33*9.3 | 180*38*11 | 180*38*11 | 180*38*11 |
| Iron Block: | |||||||
| Suitable Door | File cabinet,locker | single Glass , | single Glass , | Double Glass , | single Glass , | single Glass , | Double Glass , |
| wooden, | wooden, | wooden, | wooden, | wooden, | wooden, | ||
| Wardrobe | fire doors | fire doors | fire doors | fire doors | fire doors | fire doors | |
| Installation | visible | visible | invisible | visible | visible | invisible | visible |
Shipping:
1.3-7 workingdays since payment peceipt(based on actual quantity).
2.Tracking No.will be sent you after delivery.And you will get every important shipping status by email.
Payment:
1.We could also accept an kinds of payment terms,such as:TT, Western&Union,Paypal ect.We could accept all trading manners,e.g EXW,FOB,CIF,DDP,DDU ect.
2.If buyers have any problems about payment,please contact us ASAP.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
After-sales Servie:
1.All goods will be inspected an tested before sipment.
2.Customer`s satisfactory is most important to us.if you hav any problem or questions regarding our transaction.
Pleas contact us by Trademanager or Email and Skype. I will be responded within 24 hours.
