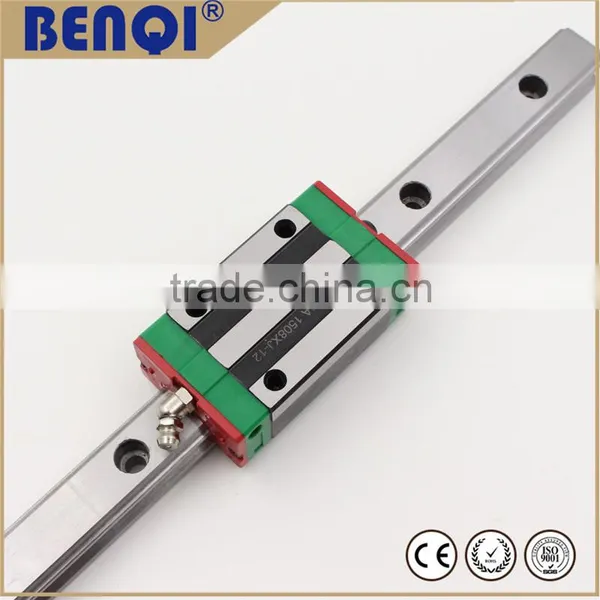

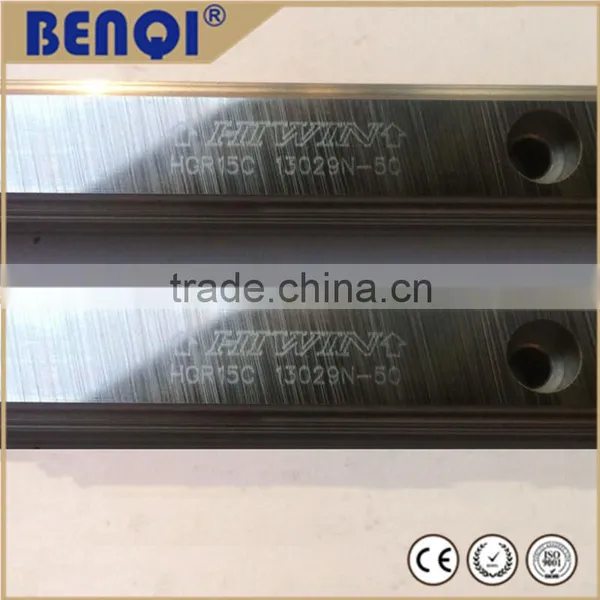

Standard Hiwin Hgh15ca Block Square for Machine
US$ 8 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Guide Width or Diameter:
15mm
Guide Length:
400mm
Model Number:
HGH
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine Screw End Support Unit BK/BF15 Fixed SupportUS$ 10 - 13MOQ: 100 Sets -
Hiwin HGR20 Linear Rail Bearing Hgh20ca for Cnc MachineUS$ 20 - 40MOQ: 1 Set
-
Hiwin Linear Guide Block Hgh20ca Ball Bearing SlideUS$ 20 - 40MOQ: 1 Set
-
Hiwin Linear Guide Block Hgh20ca Bearing + Hgr20 RailUS$ 20 - 40MOQ: 1 Set
-
Hot Sell Support Unit Bk15 /bf 15 for Ballscrew Sfu2005 MOQ 1pcUS$ 10 - 20MOQ: 100 Sets
Guide Width or Diameter
15mm
Guide Length
400mm
Model Number
HGH
Place of Origin
Taiwan, China
Brand Name
HIWIN
Details of Product
- Model Type:HGH15CA
- Width: 15mm
- Rail length: 400mm
- Block Dynamic Load Rating: 11.38 KN
- Block Static load rating: 25.31 KN
- High repeatability and smooth running performance
- Stiffness, strength and accuracy for improved production processe
About Drawings and Dimensions
| Model | Physical dimension | Block dimension | ||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M x L | T | H2 | H3 | |
| HGH 15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 4.85 | 5.3 | M4x5 | 6 | 7.95 | 7.7 |
| HGH 20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 6 | 12 | M5x6 | 8 | 6 | 6 |
| HGH 20HA | 50 | 65.2 | 92.6 | 12.6 | ||||||||||||
| HGH 25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 6 | 12 | M6x8 | 8 | 10 | 9 |
| HGH 25HA | 50 | 78.6 | 104.6 | 19.6 | ||||||||||||
| HGH 30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 6 | 12 | M8x10 | 8.5 | 9.5 | 13.8 |
| HGH 30HA | 60 | 93 | 120.4 | 21.75 | ||||||||||||
| HGH 35CA | 55 | 7.5 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 7 | 12 | M8x10 | 10.2 | 16 | 19.6 |
| HGH 35HA | 72 | 105.8 | 138.2 | 22.5 | ||||||||||||
| HGH 45CA | 70 | 9.5 | 20.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | 10 | 12.9 | M10x17 | 16 | 18.5 | 30.5 |
| HGH 45HA | 80 | 128.8 | 171.2 | 28.9 | ||||||||||||
| HGH 55CA | 80 | 13 | 23.5 | 100 | 75 | 12.5 | 75 | 117.7 | 166.7 | 27.35 | 11 | 12.9 | M12x18 | 17.5 | 22 | 29 |
| HGH 55HA | 95 | 155.8 | 204.8 | 36.4 | ||||||||||||
| HGH 65CA | 90 | 15 | 31.5 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 14 | 12.9 | M16x20 | 25 | 15 | 15 |
| HGH 65HA | 120 | 203.6 | 259.6 | 47.8 | ||||||||||||
| Model | Rail dimension | Size of Mounting bolt for rail (mm) |
Basica load rating | Weight | Allow static moment | ||||||||||
| WR | HR | D | h | d | P | E | C(kN) | Co(kN) | Block (kg) |
Rail (kg/m) |
MR(kN-m) | MP(kN-m) | MY(kN-m) | ||
| HGH 15CA | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 11.38 | 16.97 | 0.18 | 1.45 | 0.17 | 0.15 | 0.15 |
| HGH 20CA | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 17.75 | 27.76 | 0.30 | 2.21 | 0.38 | 0.27 | 0.27 |
| HGH 20HA | 21.18 | 35.90 | 0.39 | 0.48 | 0.47 | 0.47 | |||||||||
| HGH 25CA | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 36.49 | 0.51 | 3.21 | 0.64 | 0.51 | 0.51 |
| HGH 25HA | 32.75 | 49.44 | 0.69 | 0.87 | 0.88 | 0.88 | |||||||||
| HGH 30CA | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 38.74 | 52.19 | 0.88 | 4.47 | 1.06 | 0.85 | 0.85 |
| HGH 30HA | 47.27 | 69.16 | 1.16 | 1.40 | 1.47 | 1.47 | |||||||||
| HGH 35CA | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 49.52 | 69.16 | 1.45 | 6.30 | 1.73 | 1.20 | 1.20 |
| HGH 35HA | 60.21 | 91.63 | 1.92 | 2.29 | 2.08 | 2.08 | |||||||||
| HGH 45CA | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 77.57 | 102.71 | 2.73 | 10.41 | 3.10 | 2.35 | 2.35 |
| HGH 45HA | 94.54 | 136.46 | 3.61 | 4.00 | 4.07 | 4.07 | |||||||||
| HGH 55CA | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 148.33 | 4.17 | 15.08 | 5.66 | 4.06 | 4.06 |
| HGH 55HA | 139.35 | 196.20 | 5.49 | 7.49 | 7.01 | 7.01 | |||||||||
| HGH 65CA | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 215.33 | 7.00 | 21.18 | 10.02 | 6.44 | 6.44 |
| HGH 65HA | 208.36 | 303.13 | 9.82 | 14.15 | 11.12 | 11.12 | |||||||||
About our workshop
About our company
Shanghai BenQi Mechanical & Electrical Equipment Company is a hardware factory, we are Producing domestic BENQI miniature linear guide, Heavy load linear guide and ball screw independently. We are also the commission agent of the HIWIN and TBI.
About Payment
1) T/T: 30% deposit 70% before shipment.
2) L/C at sight. (High bank charge, not suggest, but acceptable)
3)100% Western Union in advance. (Especially for air shipment or small amount)
