linear guide EGW15CA HIWIN linear guideway
- 20000 Set / Sets per Month
- shanghai
- T/T Credit Card
- driver/Linear motor/DD motor
- IMTEK-Miniature Linear guides TGN5/7/9/12/15 C and H
- Roller Linear Guides: High rigidity, High precision, Flexible MOQ, Compatible
- High Precision 8mm Diameter Pitch 2mm 0802 Ball Screw
- 8mm Diameter KSS Miniature Pitch 1mm 0801 Ball Screw
- 6x1 Miniature 6mm Diameter Pitch 1mm 0601 Ball Screw
Product Details
Guide Width or Diameter: | 15mm | Guide Length: | 100mm | Model Number: | EGW |
Place of Origin: | Taiwan | Brand Name: | HIWIN |
Product Description
About Details of Product
Complete linear guideway system with one Square block installed, Diameter Shaft is 15mm and Rail long is 100mm.
- Model Type:EGW15CA
- Diameter Shaft: 15mm
- Rail length: 100mm Length according to client's reqeust
- Block Dynamic Load Rating: 7.83KN
- Block Static load rating: 16.19 KN
- High repeatability and smooth running performance
- Stiffness, strength and accuracy for improved production processe

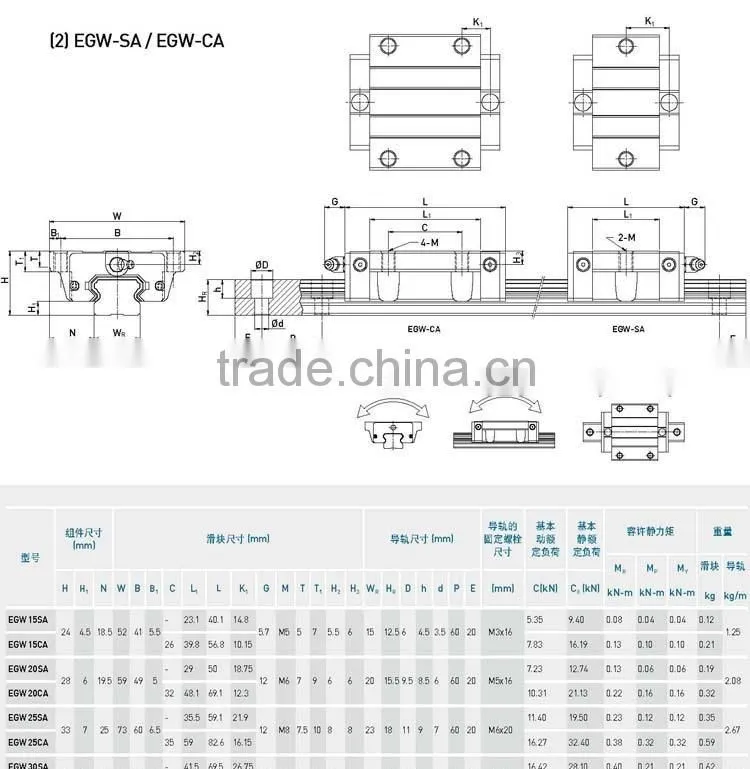

About Drawings and Dimensions
About our workshop and workshop process
workshop process for rail
workshop process for block
About our company
Shanghai BenQi Mechanical & Electrical Equipment Company is a hardware factory, we are Producing domestic BENQI miniature linear guide, Heavy load linear guide and ball screw independently. We are also the commission agent of the HIWIN and TBI.
About Payment
1) T/T: 30% deposit 70% before shipment.
2) L/C at sight. (High bank charge, not suggest, but acceptable)
3)100% Western Union in advance. (Especially for air shipment or small amount)
IF YOU NEED MORE INFORMATION ,CONTACT ME NOW!
Contact Us
- Shanghai BenQi Mechanical & Electrical Equipment Co., Ltd.
- Contact nameJiaqiang Xu
- Phone086-021-53863618
- AddressNo. 89, Lane 852, Gongkang Road
