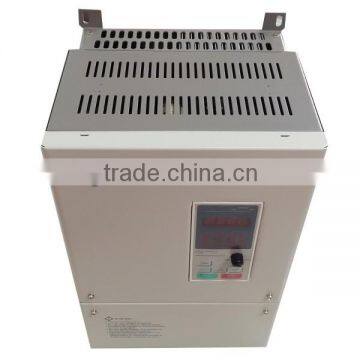

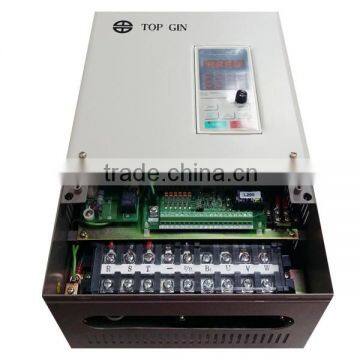

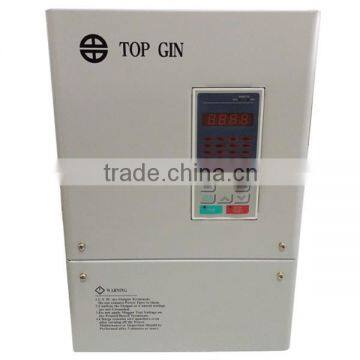

dc to ac Power 10000w Circuit Sine Wave Kit Elevator Inverter
US$ 160 - 161
MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TOP GIN
Model Number:
TG300-7
Payment & Shipping
Payment Methods:
Port of Shipment:
Taichung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sine Wave Kit Elevator 20000 Watt Diesel Generator Parts InverterUS$ 160 - 161MOQ: 1 Box -
Variable Frequency Delta Vfd dc to ac Generator Yaskawa g7 3000w InverterUS$ 130 - 131MOQ: 1 Box
-
Yaskawa g7 3000w Frequency 50hz to 60hz ac Frequency 400hz InverterUS$ 160 - 161MOQ: 1 Box
-
Teco Kone Kdl 16l Mig-200 Igbt Co2 Mig Welding Machine InverterUS$ 160 - 161MOQ: 1 Box
-
Mig-200 Igbt Co2 Mig Welding Machine Generator ac dc Tig Welder for Computer InverterUS$ 160 - 161MOQ: 1 Box
Place of Origin
Taiwan, China
Brand Name
TOP GIN
Model Number
TG300-7
Output Power
Other, 2.2KW~75KW
Output Type
Triple
Size
302*150*183(mm)~685*420*335(mm)
Weight
3KG~54KG
Input Voltage
380V
Output Voltage
380V
Type
DC/AC Inverters
Output Frequency
400HZ
Output Current
4.2A-130A
Pan-inverter
[Performance]
- TG-300 IGBT inverter series, designed for industrial machinery, tools, machinery, high starting torque, smooth operation, the new generation of drive containing the PID controller design.
[Feature]
- Automatic calculation of the load torque required to achieve the smooth start of the object.
- High-speed precision, speed slip compensation function, to overcome load fluctuations caused by poor.
- Precision sine wave control, current resembles current commercial motor running stable.
- Can improve the motor running at light load efficiency to electricity saving effect.
- Automatically adjusting motor operating voltage, the motor is maintained at the maximum-efficiency operation.
- Embedded PID control software for flow, air flow control, etc., without external PID controller, suitable for wind, hydro-machine applications.

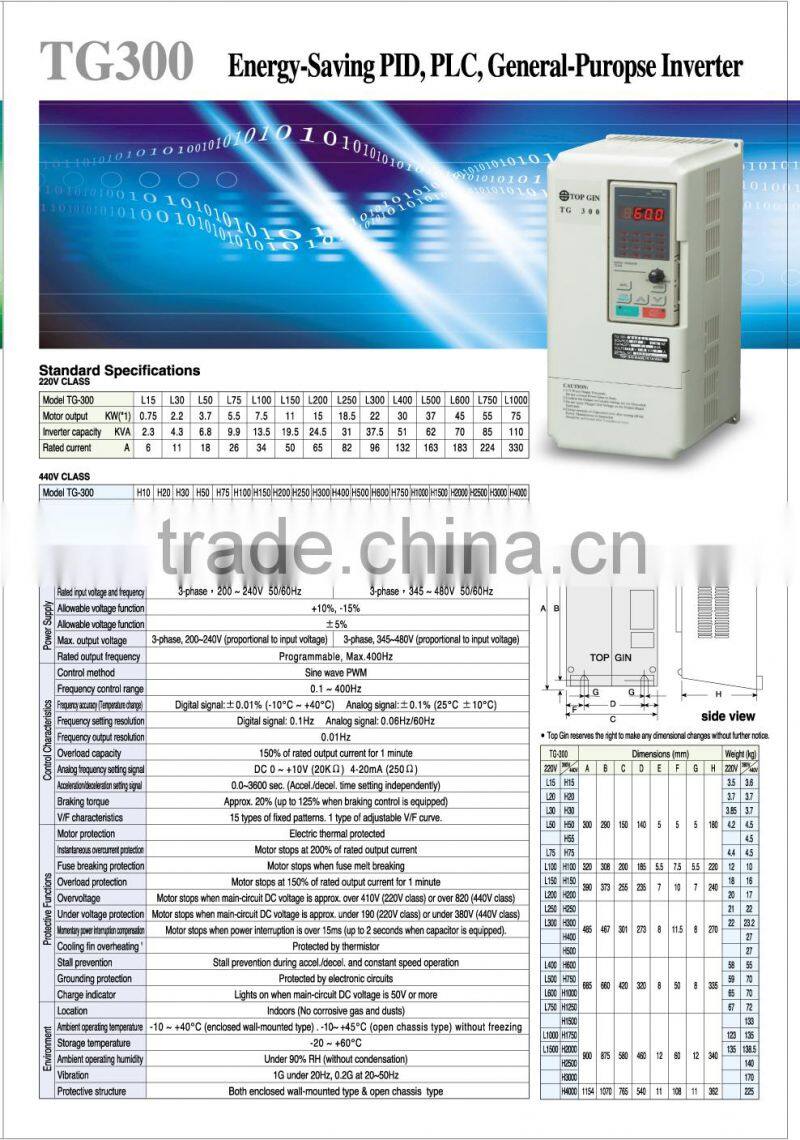

[ Specification ]
Control Characteristics
| Control mode | Sine wave PWM mode |
| Frequency control range | 0.1~ 400Hz |
| Frequency accuracy (temperature change) | Digital signal: ± 0.01% (-10 ~ + 40 ℃) analog signal: ± 0.1% (25 ℃ ± 10 ℃) |
| Frequency setting resolution | Digital signal: 0.1Hz analog signals: 0.06Hz / 60Hz |
| Frequency output resolution | 0.01HZ |
| overload | 150% of rated current 1 minute |
| Analog frequency setting signal | DC 0~+10V (20KΩ),4-20mA(250Ω) |
| Deceleration time | 0.0 to 3600 seconds (acceleration, deceleration time set individually) |
| Brake torque | About 20% (125% loaded brake controller) |
| V / F curve | 15 kinds of fixed type, internal parameter setting adjustable V / F curve one |
| Protective function | |
| Horse our protection | Electronic thermal relay protection |
| Instantaneous overcurrent | 200% of the rated current of the motor coasting stop |
| Fuse FusingProtection | Free running motor stops after the fuse blows |
| Kamakeno | 150% of rated output after 1 minute free-run stop |
| Overcurrent | 220V class main circuit DC voltage of about 410V or more motor coasting stop |
| Low Voltage | 220V class main circuit DC voltage of about 190V motor coasting stop following |
| Momentary power failure compensation | Setting when playing power outages than 15ms motor free run to stop (external capacitor to 2 seconds) |
| Heat dissipation piece overheating | Thermistor protection |
| Stall prevention | Acceleration and deceleration, stall prevention operation |
| Ground protection | Electronic circuit protection |
| Charging indication | Main circuit DC voltage above 50V indicator when charging "light" |
| Venues | |
| Venues | The room is not corrosive or dusty places |
| Ambient temperature | - 10 ~ + 40 ℃ (lock wall type), - 10 ~ + 45 (within the disk take pay type) without a freeze condition |
| Storage temperature (* 2) | -20 ~ + 60 ℃ |
| Humidity | Below 90% RH (non-condensing conditions) |
| Vibration | 20Hz below 1G, 20 ~ 50Hz when 0.2G |
| Protective structure | Wall Mount locking plate inside and take pay type |
[ SIZE ]
