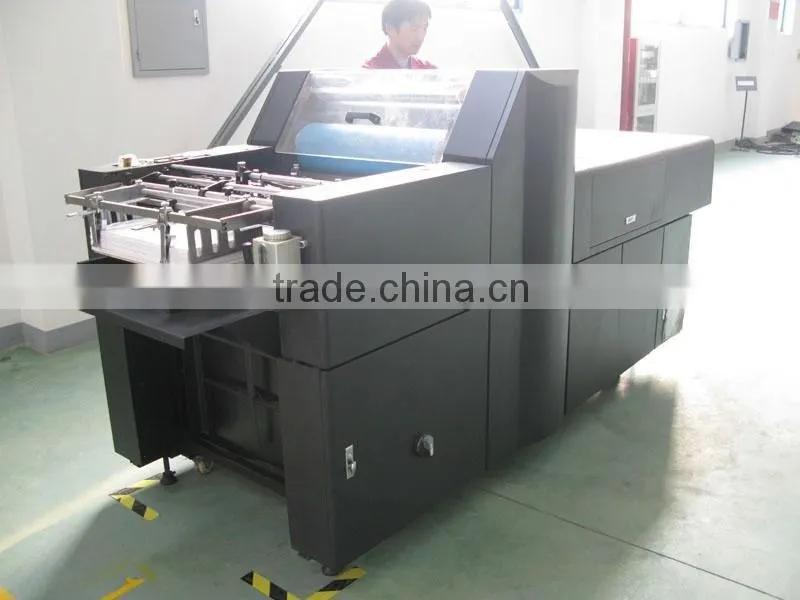

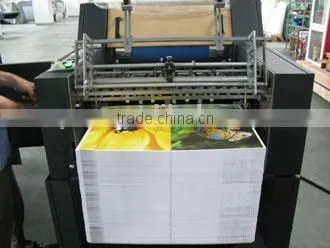

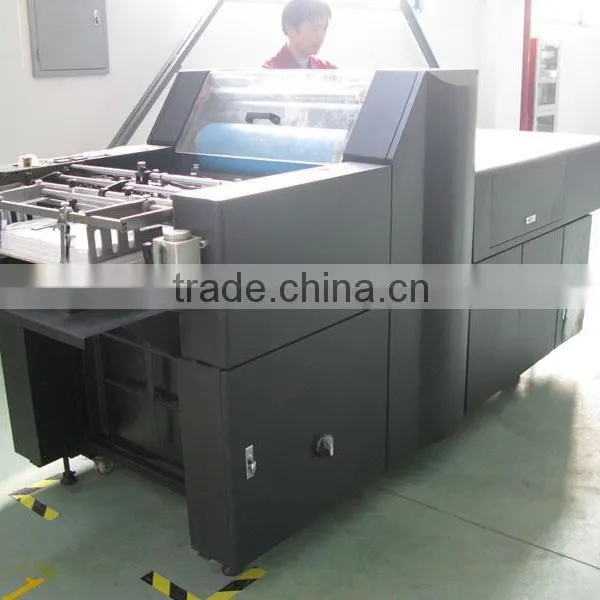

SU-620 Automatic Spot uv Coating machine
This machine is used for both flood and spot coating with both UV or water-based varnish on light or thick paper with accurate
and even spot coating register.
It is suitable for spot or full coating on words and graphics in books, advertisement sheets, color paperboard to enhance its dimensional quality and surface protection.
Integrated control with PLC can provide easy operation & trouble shot during production.
Fully automatic working process from feeding to delivery.
CE Safety requirement is considered and widely used in the machine design.
Well designed inner circulation frame can prevent leakage of UV ray & exhausted air, which will satisfy the environmental requirement.
Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.
With its advantage of small & smart industrial design, easy moving function on wheel, accurate spot coating & perfect coating result, it is suitable for small sized printing product. And it is also much recommended to be used as a post printing equipment within a digital printing solution.
Specifications | |
ating size |
440x605mm |
Max.feeding paper size |
450x620mm |
Min.feeding paper size |
210x260mm |
Paper thickness |
80-350gsm |
Max.speed |
4500pcs/hour |
UV lamp |
5.6kw 2pcs |
IR lamp |
1.8KW 2pcs |
Dimension |
3000x1100x1400mm |
Weight |
1350kg |
Note: Machinde sizes can be customzied according to customers.
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
We Promise: All your machines will be packed in steady seaworthy package.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
