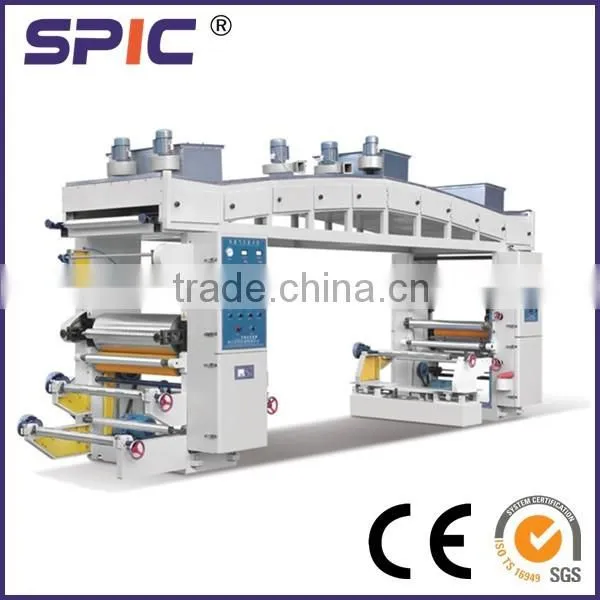

QF-1050paper foil laminating machine
Description:
- 1. Unwinding device
1.1 Unwinding frame
(1) Turning style double working position, auto air-liquid error correction
(2) Right and left adjustment for base material: manual operation; scope: ±20mm
(3) magnetic powder 2pcs
(4) Auto tension controller 1set
(5) Specification of paper core:76mm air blowing shaft
- 2. Gluing unit
2.1 Cobwebby roller
(1) Magnetic powder cluth transmission
(2) Tension manual adjustment
2.2 Rubber pressure roller
(1)Method: cylinder to press, the pressure printing force can be adjusted freely
(2)Max pressure: 100kg
(3)Specification: 110mm, hardness: 60~70
2.3 Scraper device
(1) Adjustment: horizontal direction as well as may other angles can be
adjusted by hand
(2) Scope of swing: ±5mm
2.4 Glue water plate
(1) Method: make the cobwebby roller soaked in the glue water plate directly
(2) Vertical lifting for glue water plate: manual operation
(3) Material: steel plate
- 3. Drying box
(1) Structure: hot wind exhausted quickly structure
(2) Heating: electric heating with three parts
(3) Heating power: 45kw
(4) Dry temperature control: automatic eternal temperature control
(5) Air blower: 550w blower (6pcs)
- 4. Compound unit
4.1 Big roller
(1) Big roller with chrome plate and grinding mirror surface
(2) With heat conduction oil in
(3) Auto eternal temperature control
4.2 Compound rubber roller
(1) Rubber roller with silicon and rubber
(2) Pressure compound, pressure force and be adjusted
- 5. Rewinding frame
(1) Structure: double working position, auto air-liquid error correction
(2) Right and left adjustment for base material: ±20mm
(3) Rewinding with moment motor
(4) Auto tension controller 1set
(5) Tension scope: 3-50kg
(6) Max diameter: 750mm
- 6. Guide roller made in China
- 7. Completing equipment: (solve it by users themselves)
(1).Electric source:
three-phase switch by air 380V 60Hz
No. |
Title |
Specification |
Unit |
Amount |
Remarks |
1 |
Ink scraper |
1300mm |
Piece |
1 |
|
2 |
Ringent wrench |
12×14 |
Piece |
1 |
|
3 |
Ringent wrench |
17×19 |
Piece |
1 |
|
4 |
Plum blossom wrench |
14×17 |
Piece |
1 |
|
5 |
Screwdriver |
|
Piece |
1 |
|
6 |
Inner hexagonal wrench |
|
Piece |
1 |
|
7 |
Press rubber roller |
1300mm |
Piece |
one |
|
8 |
Gluing roller |
1330mm |
Piece |
one |
|
9 |
Air compressor |
|
Set |
1 |
Note: Machinde sizes can be customzied according to customers.
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
