About Details of Product
- Model Type:TRH25B interchage with hiwin hgh25ca
- Block Width: 25mm
- Rail length: customer requirement
- High repeatability and smooth running performance
- Stiffness, strength and accuracy for improved production processes

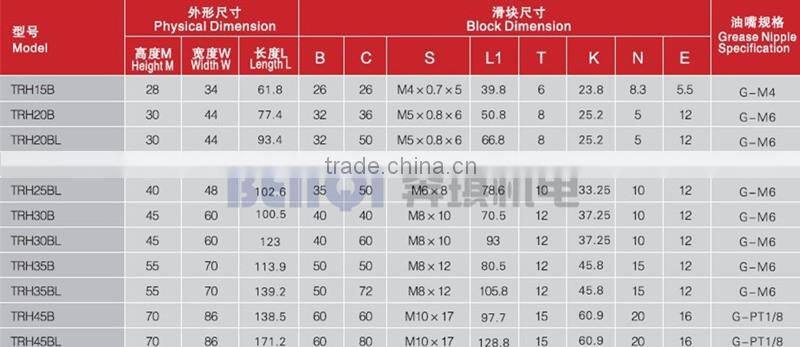

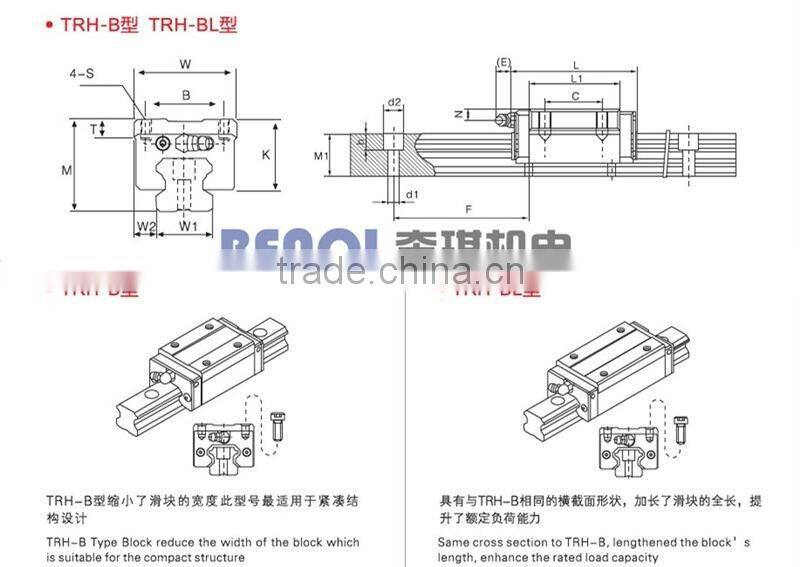

About Drawings and Dimensions
Product care maintenance
1. Lubrication When using a linear motion system, good lubrication function must be provided. If no lubrication state, guiderail rolling parts of linear guideway will wear faster, and its service life will be shortened.
2. Rust –proof It is necessary to confirm material of linear guideway to meet environmental conditions. In order to use in the Corrosion resistance of the environment, some linear guideways can use Martensitic Stainless Steel.
3. Dust –proof if dust and other foreign matter get in to linear guideway ,it will leads to abnormal wear, and shorten its usage life. so dust and other foreign must be kept out. If necessary ,you can install sealing device or dust-proof device.
processing for blocks and rail
About our company
Shanghai BenQi Mechanical & Electrical Equipment Co.,Ltd is a hardware factory, we are Producing domestic BENQI miniature linear guide, Heavy load linear guide and ball screw independently. We are also the commission agent of the HIWIN and TBI.
About Payment
1) T/T: 30% deposit 70% before shipment.
2) L/C at sight. (High bank charge, not suggest, but acceptable)
3)100% Western Union in advance. (Especially for air shipment or small amount)
Why choose us?
1. A short period of delivery
Generally, we can delivery goods within 5days
2. Exchangeability
All Linear guideways we produced have exchangeability with Hiwin brand .
3. Cost-effective
Same product, our product is very competitive in price.
4. OEM we can also process as your need.
IF YOU NEED MORE INFORMATION ,CONTACT ME NOW!
