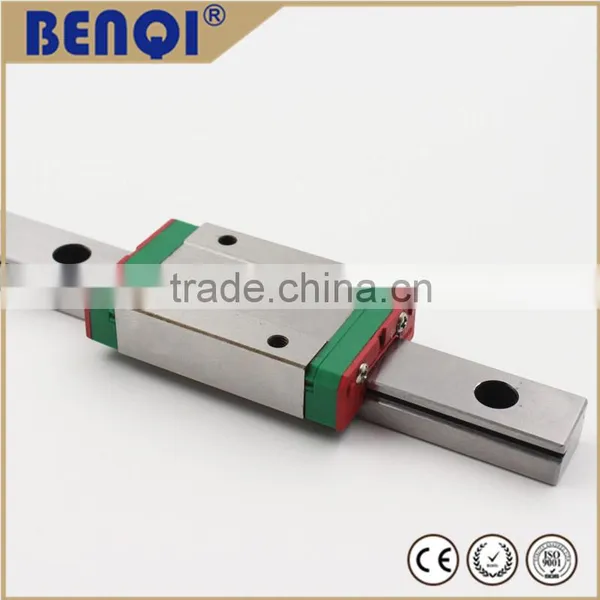

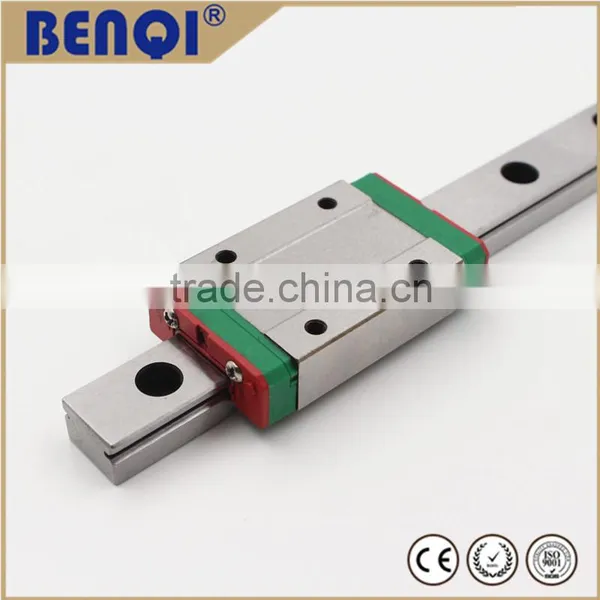

Customized China guide bearings 9mm MGN9C-L680mm + a silder
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
- driver/Linear motor/DD motor
- IMTEK-Miniature Linear guides TGN5/7/9/12/15 C and H
- Roller Linear Guides: High rigidity, High precision, Flexible MOQ, Compatible
- High Precision 8mm Diameter Pitch 2mm 0802 Ball Screw
- 8mm Diameter KSS Miniature Pitch 1mm 0801 Ball Screw
- 6x1 Miniature 6mm Diameter Pitch 1mm 0601 Ball Screw
Product Details
Guide Width or Diameter: | 9mm | Guide Length: | 680mm / customized | Model Number: | MGN, MGN 9C series |
Place of Origin: | Shanghai, China | Brand Name: | BENQI |
Product Description
Shanghai BenQi Mechanical & Electrical Equipment Co., Ltd. is a manufacturer of Mechanical and electrical, equipment, pneumatic and hydraulic equipment, hardware with 4 years experience in domestic market.
Features
1. The design of enlarged width has increased the capacity of moment load.
2. Gothic arch contact design has high rigidity characteristic in all directions.
3. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the block are removed from the rail installation.
4. All metallic components are made of stainless steel for anti-corrosion purpose.
Anvantages
A. High speed motion is possible with a low driving force
B. Equal loading capacity in all directions
C. Easy installation
D. Easy lubrication
E. Interchangeability
Item | MGW | MGN |
Construction | ||
|
| |
Features | 1. The design of enlarged width has increased the capacity of moment load. 2. Gothic arch contact design has high rigidity characteristic in all directions. 3. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the block are removed from the rail installation. 4. All metallic components are made of stainless steel for anti-corrosion purpose. | 1. Tiny and light weight, suitable for miniature equipment. 2. All materials for block and rail are in special grade of stainless steel which including steel ball, ball retainer for anti-corrosion purpose. 3. Gothic arch contact design can sustain the load from all directions and offer high rigidity and high accuracy. 4. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the blocks are removed from the rail installation. 5. Interchangeable types are available in certain precision grades.
|
Application | MGN/MGW series can be used in many fields, such as semiconductor equipment, PCB assembly equipment, medical, equipment, robotics, measuring equipment, office automation equipment, and other miniature sliding machinery.
MGN and MGW series linear guideway can be classified into non-interchangeable and interchangeable types. The sizes of two types are the same. The interchangeable type is more convenient due to rails can be replaced. However, its precision is less than non-interchangeable type. Because of strict dimensional control, the interchangeable type linear guideway is a smart choice for customers when rails don’t need to be paired for another axis. The model number contains the information of the size, type, accuracy class, preload class, and so on. |
Model No. | Physical dimension(mm) | Block dimension(mm) | |||||||||||
H | H1 | N | W | B | B1 | C | L1 | L | G | Gn | M x L | H2 | |
MGN 7C | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 13.5 | 22.5 | / | 0.8 | M2x2.5 | 1.5 |
MGN 7H | 13 | 21.8 | 30.8 | ||||||||||
MGN 9C | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 18.9 | 28.9 | / | 0.8 | M3x3 | 1.8 |
MGN 9H | 16 | 29.9 | 39.9 | ||||||||||
MGN 12C | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.7 | 34.7 | / | 0.8 | M3x3.5 | 2.5 |
MGN 12H | 20 | 32.4 | 45.4 | ||||||||||
MGN 15C | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 26.7 | 42.1 | 4.5 | GN3S | M3x4 | 3 |
MGN 15H | 25 | 43.4 | 58.8 |
Model No. | Rail dimension(mm) | Mounting bolt for rail (mm) | Basica load rating | Static rated moment | Weight | ||||||||||
WR | HR | D | h | d | P | E | C(kN) | Co(kN) | MR (kgf-m) | MP (kgf-m) | MY (kgf-m) | Block (g) | Rail (kg/m) | ||
MGN 7C | 7 | 4.8 | 4.2 | 2.3 | 2.4 | 15 | 5 | M2x6 | 100 | 127 | 0.48 | 0.29 | 0.29 | 10 | 0.22 |
MGN 7H | 140 | 200 | 0.78 | 0.49 | 0.49 | 15 | |||||||||
MGN 9C | 9 | 6.5 | 6 | 3.5 | 3.5 | 20 | 7.5 | M3x8 | 190 | 260 | 1.20 | 0.75 | 0.75 | 16 | 0.38 |
MGN 9H | 260 | 410 | 2.00 | 1.90 | 1.90 | 26 | |||||||||
MGN 12C | 12 | 8 | 6 | 4.5 | 3.5 | 25 | 10 | M3x8 | 290 | 400 | 2.60 | 1.40 | 1.40 | 34 | 0.65 |
MGN 12H | 380 | 600 | 3.90 | 3.70 | 3.70 | 54 | |||||||||
MGN 15C | 15 | 10 | 6 | 4.5 | 3.5 | 40 | 15 | M3x10 | 470 | 570 | 4.60 | 2.20 | 2.20 | 59 | 1.06 |
MGN 15H | 650 | 930 | 7.50 | 5.90 | 5.90 | 92 |
Packing
Standard oacking: plastic bag + air bubble film + wood pallet
also can according to your requirement
Shipping
1. Less than 45 KGS, send by express.
2. Between 45 - 150 KGS, send by air .
3. More than 150 KGS, send by sea.
Shanghai BenQi Mechanical & Electrical Equipment Co., Ltd. is a manufacturer of Mechanical and electrical, equipment, pneumatic and hydraulic equipment, hardware with 4 years experience in domestic market.
Services: Printing, Machinery, Military industry, Printing and Dyeing, Hardware, Electronic, Aerospace, Engineering and Engineering Design, Medical, Mechanical and Electrical, Equipment, Pneumatic and Hydraulic Equipment, Hardware Electrical Appliances, Building Materials, CNC Center, Lathe, Sewing Machine, Rooter,Elevator, Transmission, Video Camera, Automation...
We welcome new and old customers to contact us for future business relationships and mutual success!
Production process
We do try to respond as quickly as possible. Due to time zone difference, please allow up to 2 business days to get your mail replied.
Why you choose us?
1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good
1. Express freight
Small order:
- ship by express
- the accurate air freight will according to the actual weight, redundant freight would be returned to you
Large order: by sea
- according to clients' requirements, normally packed by cartoon or wooden case
3. Ballscrew / Linear guideways
- ballscrew end machining will according to the standard sizes if you have no other special requirements.
- ballscrew non-standard sizes should send to us the drawing.
- linear guideway: one set = 1pc linear rail + 1pc/2pcs linear blocks, must tell us you need 1pc or 2pcs in each rail or none.
- customized length. including ballscrew and linear guideways. ( Any length can be cut. Longer length than 3000mm would be cut to 1000mm + 2000mm, or other ways from your requirements )
- TBI, HIWIN brand or domestic goods all can get
- we offer nut, nut housing, end support, coupling, blocks, rails and so on
- assembly goods
- balls inside the nut, the nut can not be taken out from the screw.
- must using the lubricating grease while using.
- the ballscrew can not be used dry grinding.
