Fabrication Raw Material Ppg

Specifications

ppgi:
1. Width:600mm-1200mm
2.Thickness:0.2mm-2.0mm
3.Coil OD:508mm/610mm

Specifications of Prepainted Galvanized SteelCoil:

1) Capacity: about 15,000 tons per month for coil product

2) Standard: JIS G3302, JIS G3312, ASTM A653M/A924M 1998

3) Grade: Q195-Q235 and SPCC, SPCD, SPCE, SGCC (DX51D+Z) SGCD (DX52D+Z), etc.

4) Thickness: 0.23mm-2.0mm

5) Zinc coating weight: 60-275g/m2

6) Width: 600mm-1200mm, or according to the customer's request.

7) Coil ID: 508mm-610mm

8) Coil Weight: according to the customer's  request

9) Color: RAL, or other series

10) Surface protection: PE, PVDF, SMP, HDP, etc.

11) Surface treatment: chromate, oil/unoil, bright finish, spangle, anti-finger print

12) Min trial order: 25 ton each size, 1x20' per delivery

Advantages of Our Prepainted Galvanized SteelCoil:

1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.

2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4) Versatility: can be used in the various areas.

Coating Chief Feature

Structure of GI/PPGI

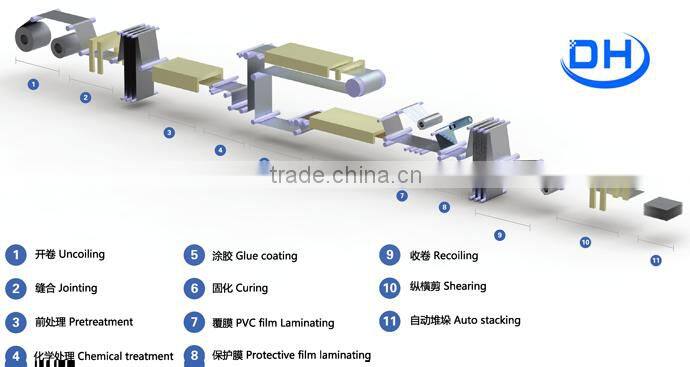

PROCESS CRAFT:

SHIPMENT:

CERTIFICATE:

COMPANY  INFORMATION:

QQ:1544556275.

Telephone:0086-15232798368.
