3 years warranty of CE approved 0.8 ~20 Ton/H wood pellet plant for sale / complete wood pellet production line
Our factory Liyang Yuda Machinery Co., Ltd. is a professional manufacturer specialized in designing and maketing pellet mill and pellet production line.
We have 13 years history, and our company covers an area of 34500 square meters, construction area of 27895 square meters. The factory near Nanjing Lukou International Air Port (50 minutes by car), Shanghai Pudong International Air Port (2.5 hours by car),Hangzhou Xiaoshan International Air Port( 2.5hours by car).
Our machines and pellet line are all CE CERTIFICATE. We exported to all over the world, such as Greece, Romania,Malaysia, Russia,Vietnam, Indonesia and so on.
Details:
Capacity: 0.8-20t/h
Material: olive branch, olive pomace, EFB,eucalyptus bark,all kinds of tree, sawdust, bamboo,rice husk,straw,grass and so on.
After sale service: 7X24 hours
Delivery time: 30-40days
Qty of Container: 3-5pcs 40 HQ
Port of Loading: Shanghai
Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
Operators: 3-5workers.
Certificate: CE,ISO
Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.
Product information:

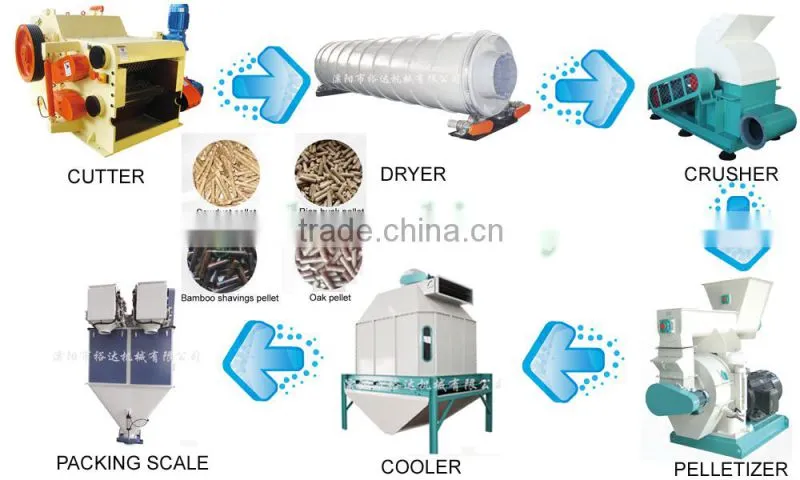

Usually, the process of complete wood pellet production line is: Chipping process---Grinding process---Drying process---Pelletizing process---Sifting & Cooling Porcess---Packing process

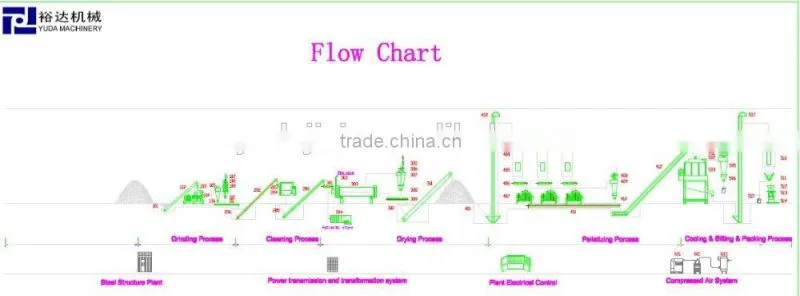

Attached Flow Chart of 3TPH Wood Chips Pellet Production Line:

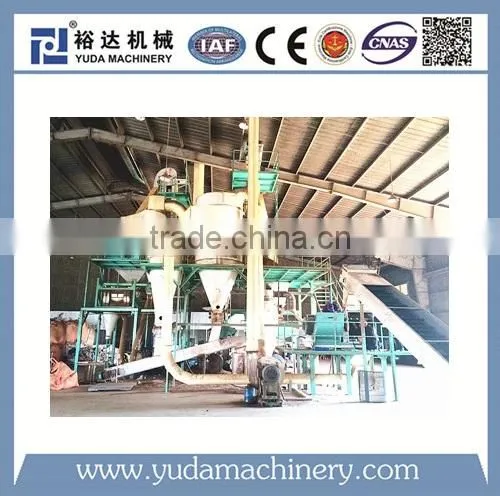

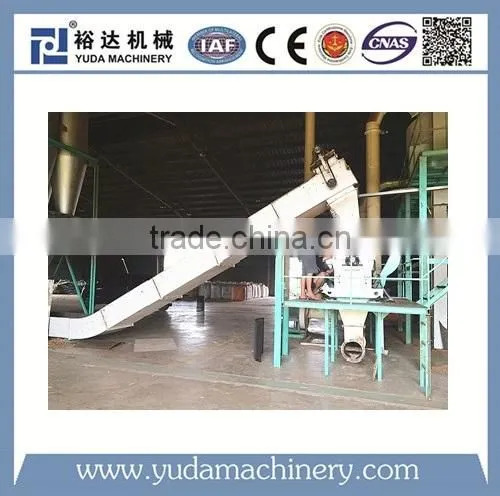

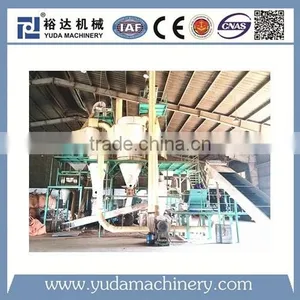

Since our company established, we have been committed research and manufacturing about Turn-key project. We have already installed many projects at many cities and countries.
A simple wood pellet production line:

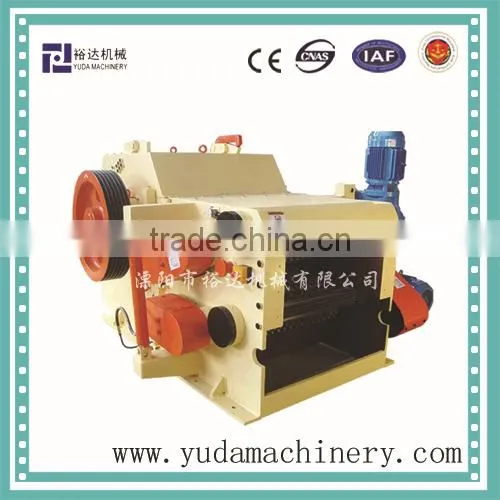

1. BX series wood chipper: It makes wood into wood chips.
2. Dust filter: It removes impurities in the wood chips.
TBLMF series pulse jet dust filter
TBLMY series pulse jet dust filter

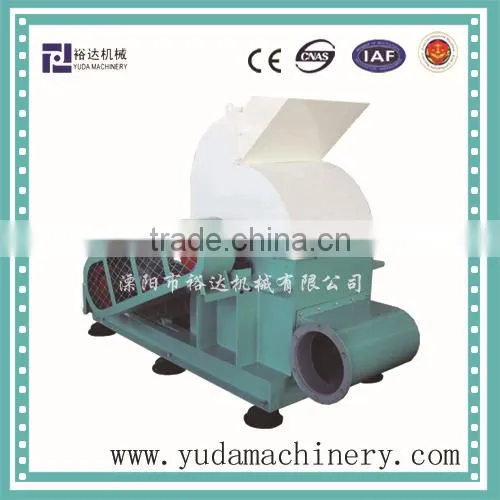

3.SFSP series wood hammer mill: It makes wood chips into sawdust.

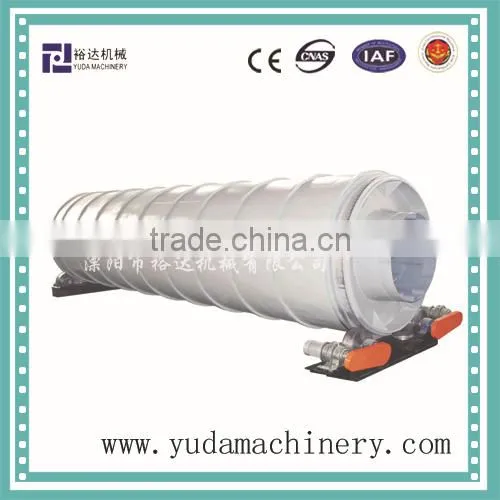

4.YSH series three-way drum dryer: It reduces moisture of sawdust.

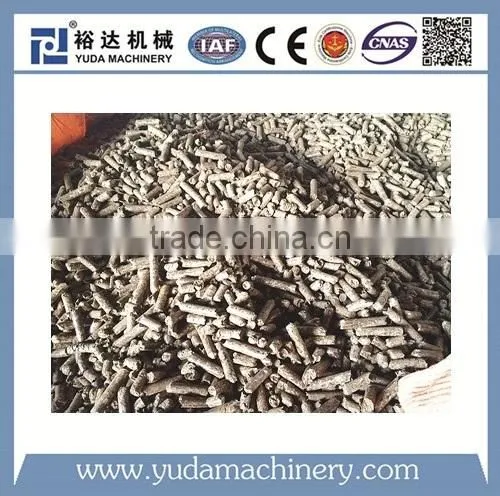

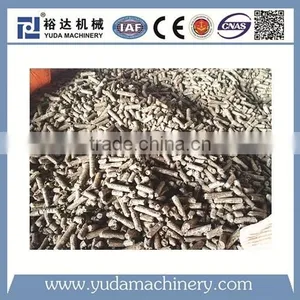

5. MZLH wood pellet mill: it makes sawdust into pellets.
Pellet size depends on your request.

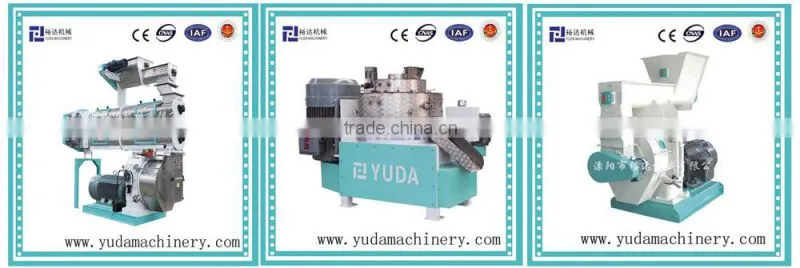

MZLH(w) biomass wood pellet mill
MZLH(L) biomass wood pellet mill
Model information of pellet machine:
| Model | Power | Ring die | Capacity | Forming rate | dB(A) Noise |
| MZLH(L)470 | 37-45KW | 8-10mm(1:5.0-6.0) | 0.7-1.2T/h | ≥98 | ≤80 |
| MZLH(L)508 | 45-55KW | 8-10mm(1:5.0-6.0) | 1-1.5T/h | ≥98 | ≤80 |
| MZLH(W)420 | 75-90KW | 8-10mm(1:5.0-6.0) | 0.8-1.2T/h | ≥96 | ≤80 |
| MZLH(W)508 | 110-160KW | 8-10mm(1:5.0-6.0) | 1.5-2.5T/h | ≥96 | ≤80 |
| MZLH(W)678 | 180-220KW | 8-10mm(1:5.0-6.0) | 2-3.5T/h | ≥96 | ≤80 |
Advantages:
1. High-precision gear driving system for overload protection with strong impact to ensure full load running and long service life.
2. High quality bcaring and oil seal and stable working.
3. High prower flexible coupler with strong compensation displacement.
6. Cooler: it reduces the temperature of pellets to ensure more effective pelletizing.
7. Packaging machine: automatic packaging
SDBY series packing scale
We have professional engineers to guide the installation and commission.
Good engineer team in YUDA is the guarantee for us to get your option and easy for communication with foreign customers.
Besides, we have strict technical inspection to every product in order to ensure quality of our machines.
Packing:
steel rack, iron pallet, also can be customized
Shipping( Containers):
All above-showed are small parts of our company.
We welcome you to visit our factory. And Please feel free to contact with me.
Q&A:
Kindly tell me more inquiry details. Without hesitation click the below "send" now.
