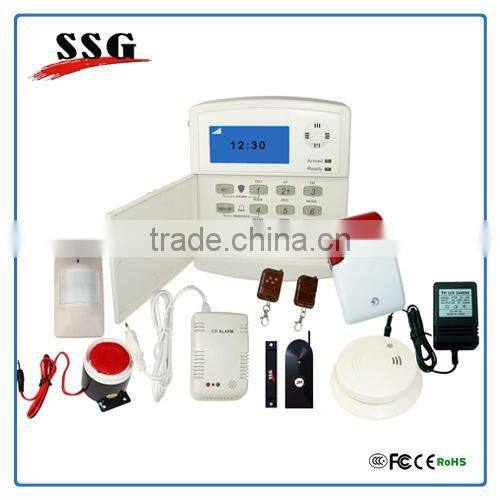

Wireless Home Smart Security Alarm System With Big LCD,CE,FCC,RoHS Certificates

Specifications

wireless home smart security alarm system with big LCD,CE,FCC,RoHS certificates

Imitated by many, surpassed by none

SSG is the leading manufacturer of CCTV system and Alarm system in Shenzhen China

Welcome to send inquiry to us,trained person will reply you within 24 hours

Main features

1.With graphic LCD screen and keypad.
2.Three groups of fixed time to arm/disarm the alarm system
3.Maximally support up to 40 wireless sensors,5 remote controller 4 wired sensors,full compatible with wired and wireless sensors.
4.Full 16-button keypad with easy-to-read LCD display and status LEDs.
5.Support wireless siren.
6.Delay arm feature enables users to leave the house for a brief time without disarming the system.
7.Door chime feature for monitoring door, window, or motion activity
8.Automatically record alarm history and easy to query.
9.Configure and operate the control panel with voice guide.
10.WIth tamper switch to prevent someone to move the alarm panel away.
11.Support second wireless keypad.

Basic features:

1. .Based on GSM netwrok,should work with a SIM card.
2. .Maximally support auto-dial 6 phone NO. circularly and send SMS to 1 phone NO. ,when the system was triggered.
3. .10s recording to record install position or other special remind information,automatically playback when the alarm call is answered.

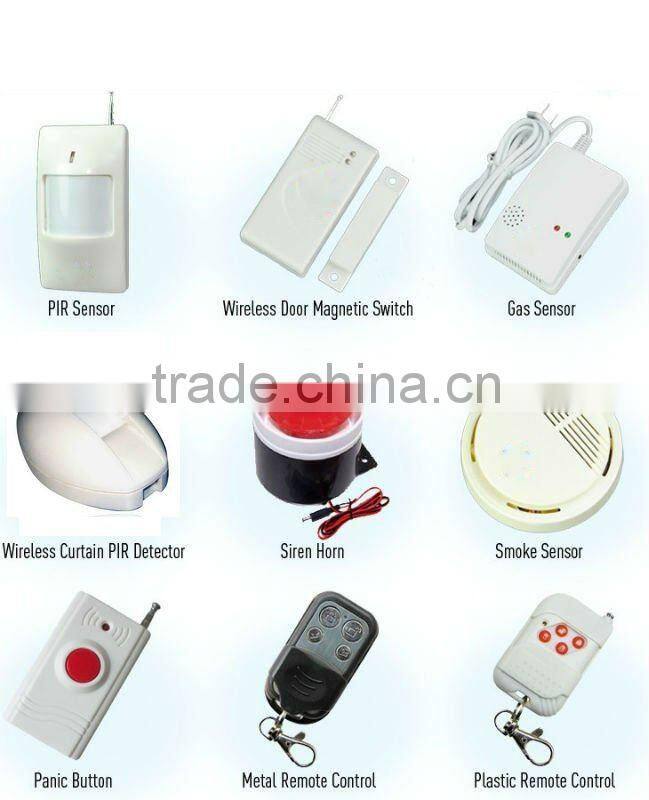

4. .Full compatible with door/window sensor,PIR motion sensor,smoke sensor,gas sensor,panic button,IR fence etc.
5. .The distance between wireless sensors and central alarm panel can reach up to 100M.
6. .Mute or sound alarm mode for choice.
7. .Digital learning code to add or delete sensors,Easy and convenient programming.
8. .Support emergency alarm, no matter the alarm system is on arm or disarm status.
9. .85 dB internal sounder with voice siren.and also support external wired siren to make a louder sound for alarm.
10. .Built-in rechargeable lithium backup battery to keep the system working in case of external power failured.
11. .Any phone call in to remote listen-in around the alarm control panel after enter password.
12. .Remote control to arm/disarm,turn off/on siren,listen-in etc.
13. .Arm bypass for separately arm the bypass zones.
14. .Siren hoot time is programable.
15. .Ring time for call in is programable.
16. .Configure and operate the alarm system with password protection.
17. .Full compliance with international standards and regulations
18. .Full compatible with SSG Central Monitoring Station.
19. .Default 900/1800Mhz 2 band GSM module with international IMEA number
20. .Quad band 850/900/1800/1900Mhz GSM module is optional

Parameter:

1. The Dimension of the Plastic Shell: 34*25*7.3CM

2. Power Adaptor: AC To DC conventor. Input: AC 220( AC 110V/240V is optional, output:9VDC500mA.

3. Standby Current: ≤40mA Alarm State Current: ≤350mA

4. Working Condition: Indoor, temperature: -10 ~ 50 Degree, Relative humidity;≤90% atmospheric pressure: 86 ~106Kpa

5. Alarm Receiving Mode: AM, Receiving Distance:≥120M (In the open area)

6. Voice Instruction: The panel has voice instruction all the way when the user are remote control the system on phone. When alarm, the panel will alert which sensor, including Door Contacts, PIR Motion Sensors, Smoke Detector, Gas Detector and Panic Button, was triggered through voice instruction . And when you operate the system on the panel, there are voice instruction for some important operation.

7. Preset Phone Numbers: 6 Group (Maximum 30 digits for each group)

8. SMS Number: 1 Group

9. External Siren: ≥110dB; Built-in Siren:≥85dB

10. Frequency:315MHz/433MHz.

11. Protocol for CMS:GPRS

12. GSM Band: Triple-band 900/1800/1900 MHZ, Quad-band 850/900/1800/1900 MHZ

Our Service:

  1. Reply your inquiry in 24 working hours.
  2. Customized design is available. OEM&ODM are welcome.
  3. Experienced staffs answer all your questions in fluent English
  4. Exclusive and unique solution can be provided to our customers by our well-trained
      and professional engineers and staffs.
  5. Special discount and protection of sales area provided to our distributor.

Package:Color Gift Box

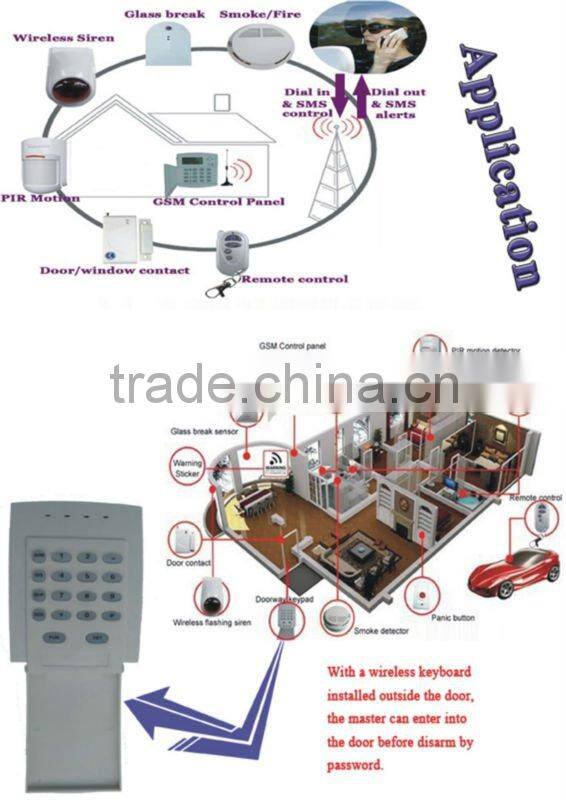

The central panel is compatible with wired and wireless sensors/components

The Central panel supports upload alarm events  to

Central Monitoring Station(over GPRS network)
