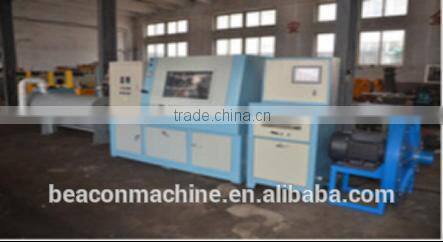

BCZY-2R Heating type auto electric turbocharger test bench
---Pilot projects and accordance
1.Speed characteristic detecting car turbocharger
2,Detection car turbocharger air flow.
3,Detection car turbocharger boost pressure
4,Detection car turbocharger lubrication
5,Detector turbocharger turbine inlet temperature
6,Detector turbocharger turbine outlet temperature
7,Detector turbocharger lubricating oil temperature
8,Detector turbocharger inlet pressure
---Features
The test bench is our latest detection performance automotive turbochargers advanced equipment,The use of advanced touch screen the entire testing process touch control,Programmed to run real-time display of test data.Features soft keyboard,Can be measured turbocharger numbered,Storage, on file for future reference.And print test results and waveform plot.Supercharger comprehensive dynamic testing and data logging.Airflow can be used to generate drive the turbocharger operation,Also be an external power screw compressor driven turbocharger resulting in higher speed.
The device uses electrical heating to a high temperature for the turbocharger test,So as to achieve the operating state of the vehicle simulation,Speed can be reached 100,000 rev / min or so(According to the type of supercharger),High-precision sensors,Analog turbocharger working conditions in the vehicle,By observing the data to check the performance of the turbocharger.
----
System components and Performance Overview
Test system mainly consists of the following sections:
1.System mechanical part:test bench, turbocharger mounting fixture, control console and so on,

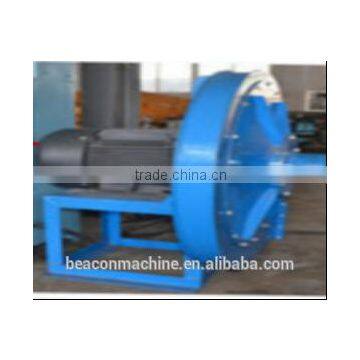

2.Airflow generator section
The flow generator is the State Economic Commission and the Department of Electrical and promotion of energy-saving products,
Produced using centrifugal high-pressure air.

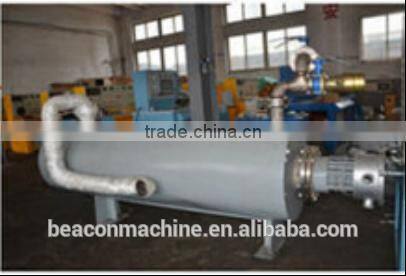

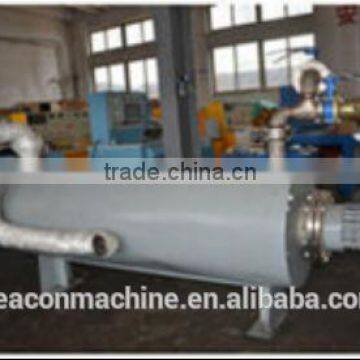

Electric air heater section:Equipment mainly by heating cylinder,Electric heating element composed of one.The heated liquid into the apparatus was heated to the desired temperature requirements, Electric control part adopts self-tuning PID temperature control.It can reach its operating temperature 90℃,Working pressures up 0.4Mpa,Specific user according to different design and manufacturing process requirements.Device with reliable performance, uniform heating, temperature stable speed,Achievable temperature, flow, pressure and other parameters self-tuning control.
The device and horizontal tubular barrel,Various vertical installation,Heating cylinder material can be selected according to the heating medium,Lumen generally used SUS304,Q235 Material,Heating element selection SUS 304,Material,The implementation of standards "GB / T" series.
Section measuring systems
:Turbocharger speed,pressure,Flow measurement system and the corresponding sensor,associated with the turbocharger oil
,Temperature sensors and the corresponding;
--Test Support System:Motor thermal protection system,Overload Protection System Equipment,and the gas pressure and the cooling system
,Temperature alarm security agencies,When the abnormal situation,Timely alarm system,if the duration is too long or abnormal situation worse
,Start automatic shutdown and other measures.
--computer system
:The use of advanced touch screen,Control System PLC and corresponding software,It contains the parameter setting software,Real-time monitoring and control software,data processing software and so on ;The system has the following advanced features:
--Modular design;Ensure maintenance easy and fast;
--All-digital display,Improve the control stability;
--Alarm under unusual circumstances,protection process alarm system;
---Technical Parameters
1.Input Power:380V 50HZ(Three-phase five-wire)
2.The flow generator power:11KW Power Inverter:15KW
3.Input air source:1.0Mpa
4.Pump motor power:370W
5.Pump rated pressure:0-2.0Mpa(Adjustable)
6.The maximum displacement pump:6L.
7.Supercharger speed:0-100000r/min.
8.Heater power:57kw 0-500℃ adjustable
>>>we also have other model number test bench for injector and pump ,pls point the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB |
CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox |
CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 TEST EBNCH | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
Company instruction
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
