Home > Products > Turbocharger Test Bench > Beacon BCZY-2CTurbocharger test Type automobile turbocharger test bench
Beacon BCZY-2CTurbocharger test Type automobile turbocharger test bench
- 100 Set / Sets per Month
- Qingdao or any port of China
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Beacon | Model Number: | Beacon BCZY-2C |
Power: | Other, Electronic, AC380V 50HZ | Usage: | Auto Testing Machine |
Product Description
BCZY-2CTurbocharger test Type automobile turbocharger test bench
Function Introduction
This test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure,
air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

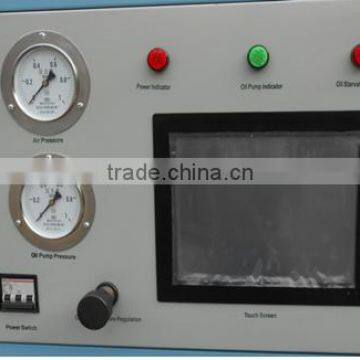

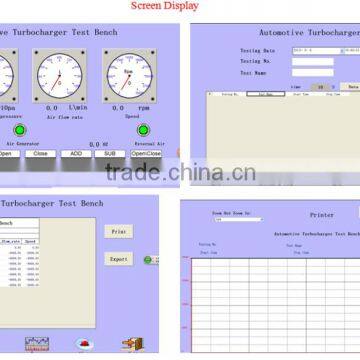

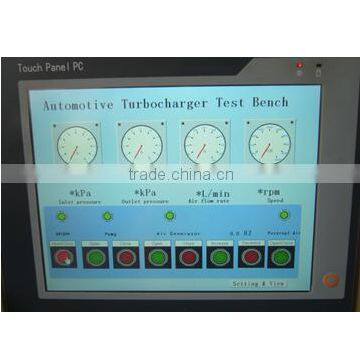

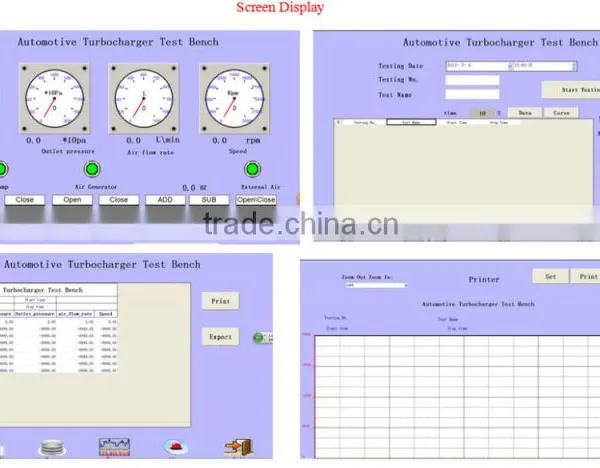

It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger, and print the test result and wave form curve with a printer.
It achieves comprehensive dynamic test and data record of turbocharger.
2. Technical Parameter
lPower: AC AC380V 50HZ (made to Measure)
lPower of airflow generator: 5.5KW (made to order)
lFrequency converter power: 7.5KW
lRPM of airflow generator: 0--20000r/min
lMaximum air pressure of airflow generator: 5KPa
lMaximum flow rate of airflow generator: 1500m³/h
lPower of oil pump motor: 750W
lRated pressure of oil pump: 0.3MPa
lMaximum displacement of oil pump: 15L/min
----Photos

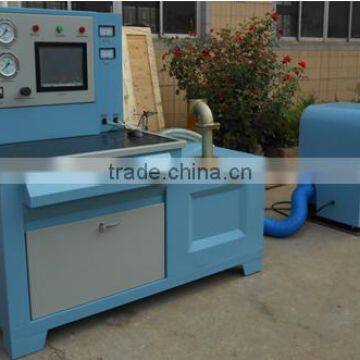

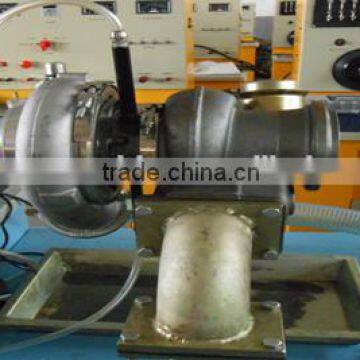

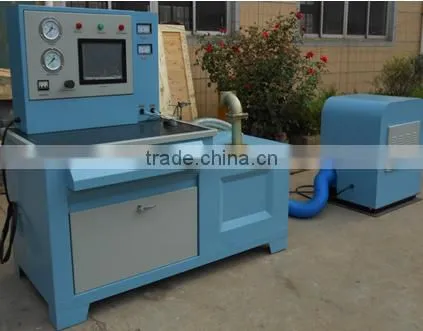

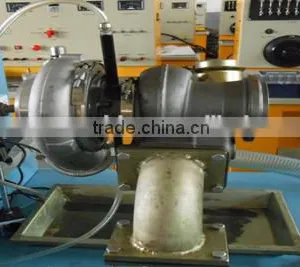

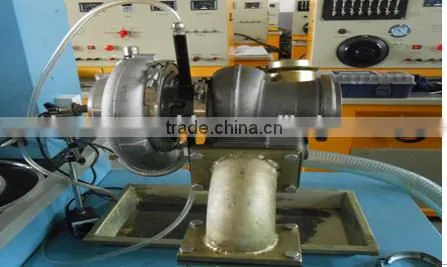

Details photos of test bench
Company instruction
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
