trending products Automobile BCQZ-2A alternator generator test bench price

1.Function Introduction
    This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.
2.Technical Parameter
 Input working voltage 380V AC 50HZ( three-phase four-wire)DC12V,24V or 48V
Motor power:7.5KW   Frequency converter power:7.5KW(three-phase AC)
Speed adjustable range of generator: no load 0-8000r/min  load 0-6000r/min
Load mode : Electronic module type  DA  (0~200A)
Working current of starter:0-2000A
Torque of starter:0~200 N.M
Air pressure setting :0~1MPa (random adjustment)
3.Applicable Scope
 Generator and starter of various large load carrying vehicles, passenger car and bus;
 Maximum test power of generator :5.5KW
Maximum test power of starter: 15KW

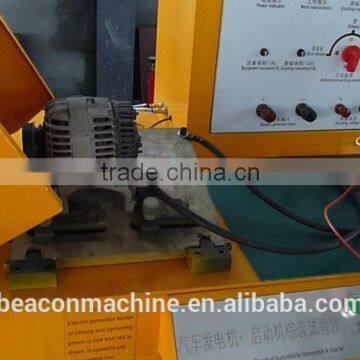

----The details photos

>>>we also have other model number test bench for  injector and pump ,pls point the model name and then check details
