BCQZ-2A digital display large vehicles starter and alternator test bench
1.Function Introduction
This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.
2.Technical Parameter
Input working voltage 380V AC 50HZ( three-phase four-wire)DC12V,24V or 48V
Motor power:7.5KW Frequency converter power:7.5KW(three-phase AC)
Speed adjustable range of generator: no load 0-8000r/min load 0-6000r/min
Load mode : Electronic module type DA (0~200A)
Working current of starter:0-2000A
Torque of starter:0~200 N.M
Air pressure setting :0~1MPa (random adjustment)
3.Applicable Scope
Generator and starter of various large load carrying vehicles, passenger car and bus;
Maximum test power of generator :5.5KW
Maximum test power of starter: 15KW

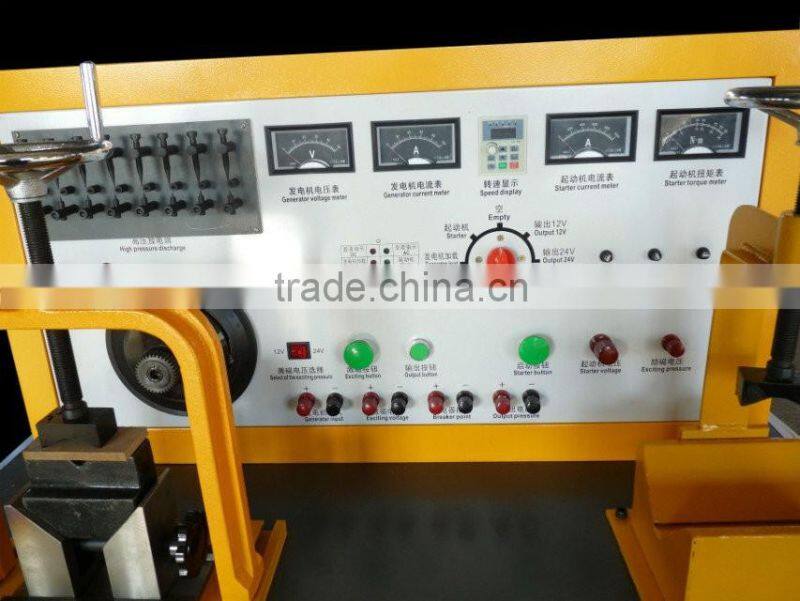

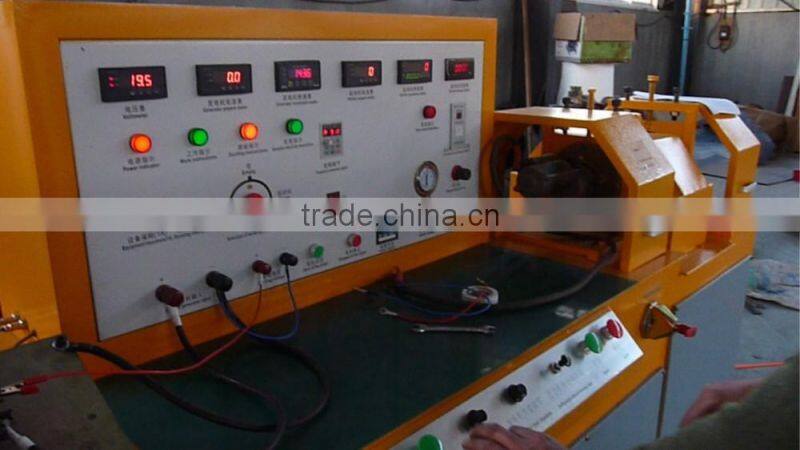

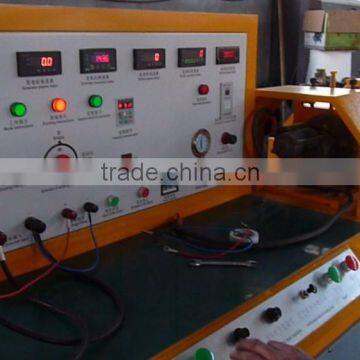

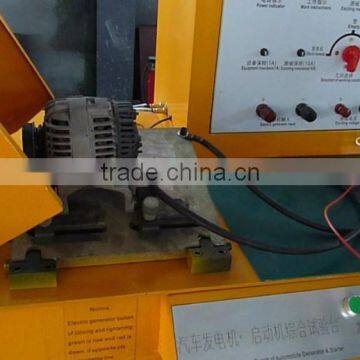

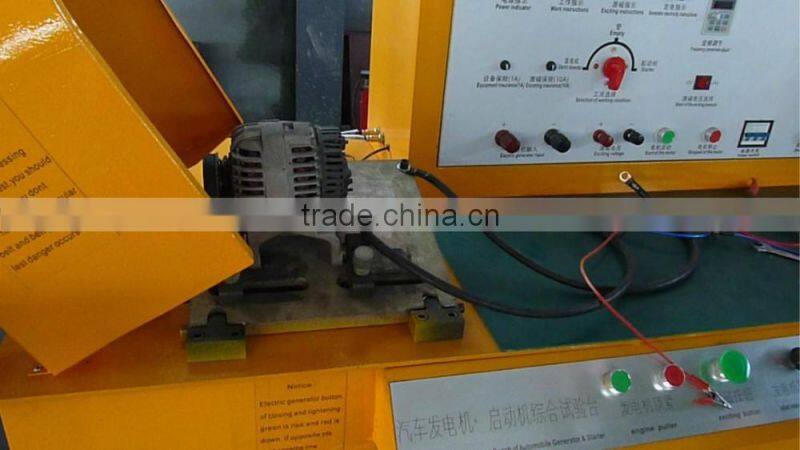

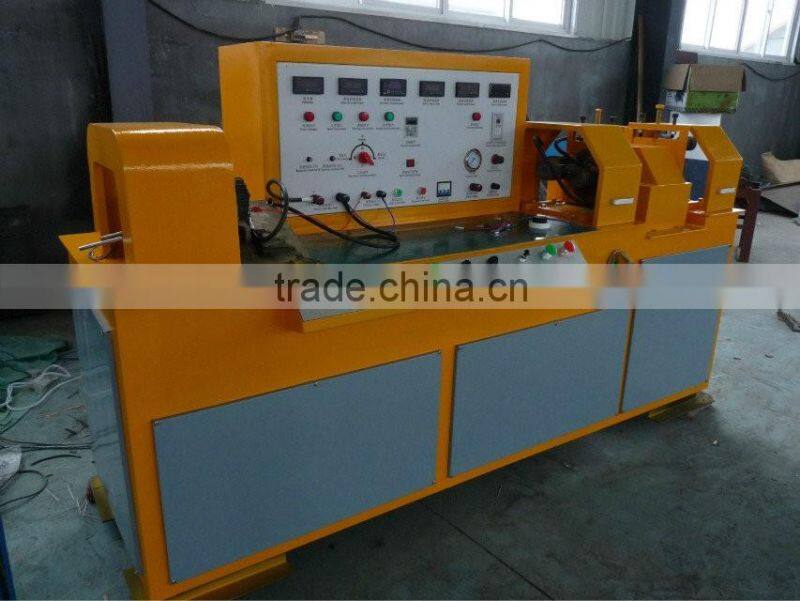

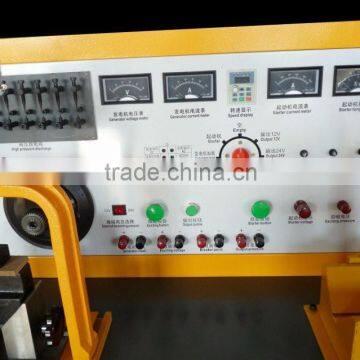

Check the product photo below:
(we have different collor on your request)
Other function machine you need just click model name in this list! :
| common rail test bench | diesel fuel test bench | common rail tester |
| CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
| BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
| CRS200 | BC2001 | VP44 pump tester |
| CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
| CRI2000 | BCS619 | EUI EUP&Cambox |
| BCS200 | BCS815 | V3V4V5 pump tester |
| BCS300 | BC-CR819 | |
| PQ1000(only 1300USD per set) |
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
