BCQZ-2B alternator starter test bench variable frequency starter and alternator test bench
General introduction
This test bench uses variable frequency speed regulation ,pointer instrument display.
It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction
Test items:
Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM
Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
Model no |
BCQZ-2B |
Language |
English/Spanish, etc |
Material |
Metal plate |
Painting |
Powder painting, durable and beautiful |
Color |
Blue |
Voltage |
220V 50 Hz (other voltage acceptable) |
Motor power |
2.2KW |
Regulating speed of frequency converter |
0-5000Rpm |
Frequency converter power |
7.5KW |
External battery |
Prepare one self for starter testing |
Turning direction |
Positive and negative |
Adjusting mode |
Rotary |
Three-pin discharge |
8 groups in parallel |
ignition angle index plate |
360°division |
range of adjusting clearance |
0—15mm |
Testing starter max braking current |
1000A |
Test starter max braking torque |
100N.m |
Charge function |
Yes |
Accessories: | |
Accessory wires, blank plates for starters, fuses, etc. | |
Others you may want to know: | |
MOQ |
1set |
Warranty period |
12 months |
Payment term |
T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time |
15 days after receiving downpayment |
HS code |
90312000.90 |
Packing sizes |
1440*900*1580mm=2.05CBM |
Weight |
N.W: 250kgs G.W: 280kgs |

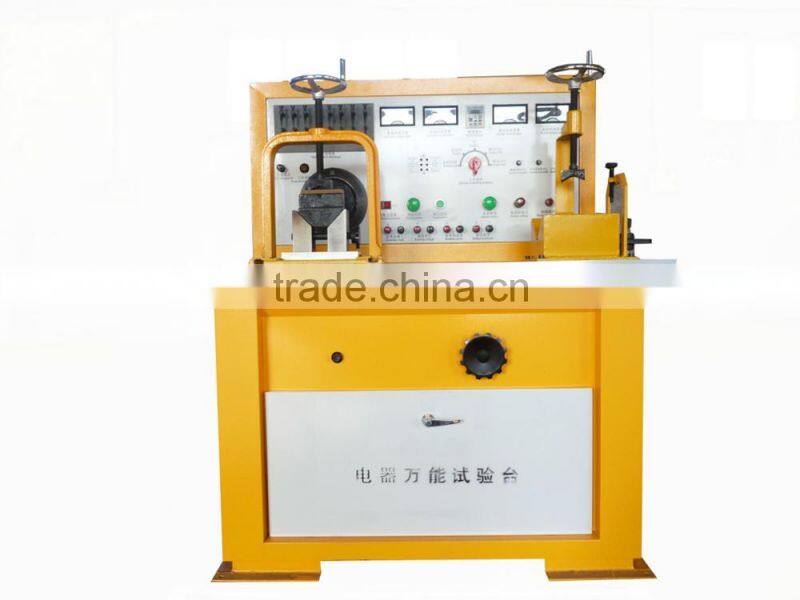

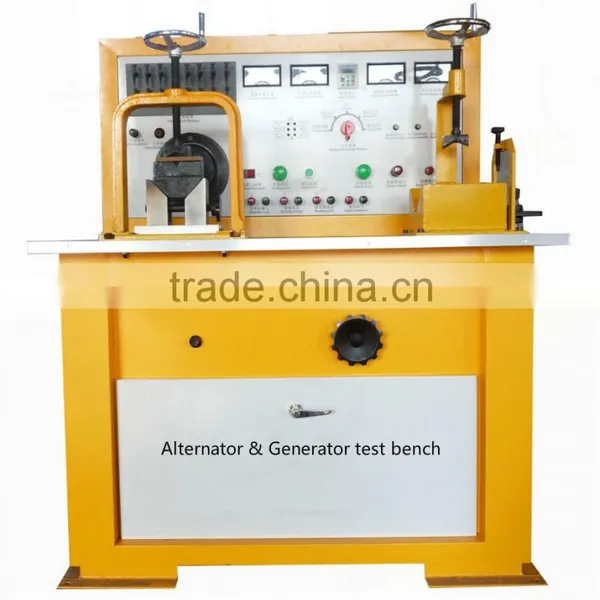

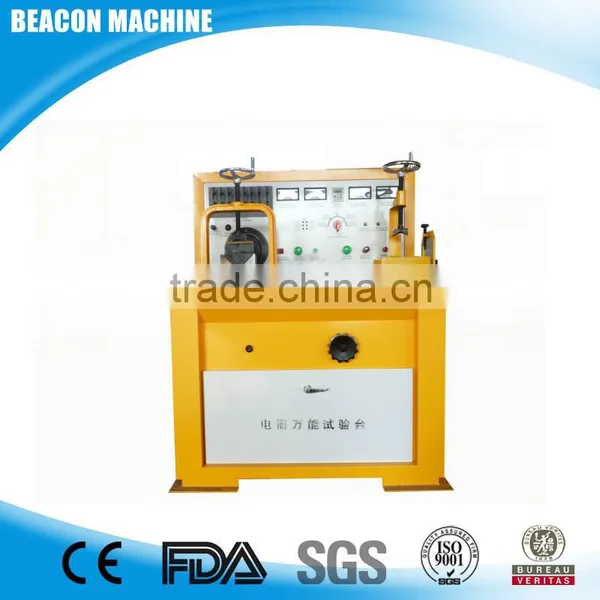

Check the product photo below:
(we have different collor on your request)
Other function machine you need just click model name in this list! :
| common rail test bench | diesel fuel test bench | common rail tester |
| CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
| BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
| CRS200 | BC2001 | VP44 pump tester |
| CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
| CRI2000 | BCS619 | EUI EUP&Cambox |
| BCS200 | BCS815 | V3V4V5 pump tester |
| BCS300 | BC-CR819 | |
| PQ1000(only 1300USD per set) |
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
