Blow moulding bottles machines
- 300 Set / Sets per Month
- Guagnzhou Shenzhen
- T/T
-
High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
-
Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
-
Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
-
custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
-
Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
-
Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
| Condition: | New | Application: | Bottle | Plastic Processed: | PET |
| Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Guangdong, China |
| Brand Name: | HG | Model Number: | HGA.C-2C(500ml) | Voltage: | 380 V |
| Power(W): | 32 KW | Dimension(L*W*H): | 2100x1300x1750mm | Weight: | 1500 KGS |
| Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of blow moulding bottle machine:

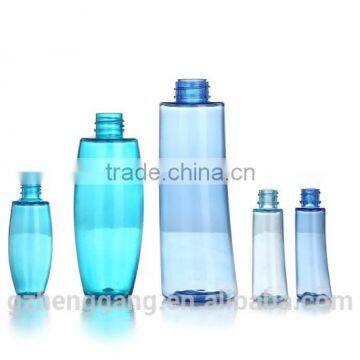

Double Cavity, 2000bph for 500ml, could blow all kinds of shapes, different volumes of beverage bottle, candy-jars, edible oil bottle, sauces bottle, detergent bottle, cosmetic bottle, medicine bottle, health products and other shapes of containers using PET as material.
Features of blow moulding bottle machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of blow moulding bottle machine:
Item | HGA.C-2C | |
Container | Max. Container Volume | 500 ml |
Neck Diameter Range | 50 mm | |
Max. ContainerDiameter | 70 mm | |
Max. Container Height | 220 mm | |
Theoretical Output | 2000 bph | |
Molding | Clamping stroke | 150 mm |
Stretching stroke | 330 mm | |
Bottom Stoke | 50 mm | |
Preform distance | 100 mm | |
Preform Holder | 76 pcs | |
Cavities | 2 No. | |
Electrical System | Max. Heating Power | 32 kw |
Heating Power | 6 kw | |
Air System | Operating Pressure | 7 kg/c m2 |
Low Air Consumption | 1200 ltr/min | |
Blowing Pressure | 35 kg/c m2 | |
High Air consumption | 1000 ltr/min | |
Cooling Water | Operating Pressure | 5-6 kg/c m2 |
Temperature | 8-12°C | |
Flow rate | 30 ltr/min | |
Machine | Size(L×W×H) | 2100×1300×1750mm |
Weight | 1500 kg | |
Machine photo of blow moulding bottle machine

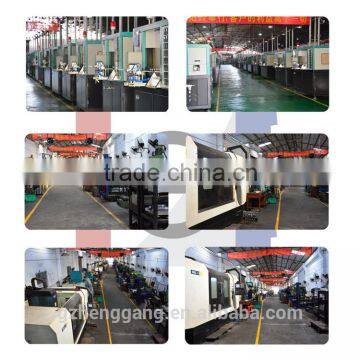

Factory overview:
We have two work shops to produce the blow moulding bottle machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of blow moulding bottle machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of blow moulding bottle machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our blow moulding bottle machine
Certifications
Our blow moulding bottle machine has acquired the CE and other domestic patents
Contact Us
- Guangzhou Heng Gang Machinery Co., Ltd.
- Contact nameChampion Wen
- Phone86-20-87438958
- AddressXinghe Road, No.1 Industrial Area, Taihe Town Baiyun District Guangzhou, China Guangzhou,Guangdong
-
