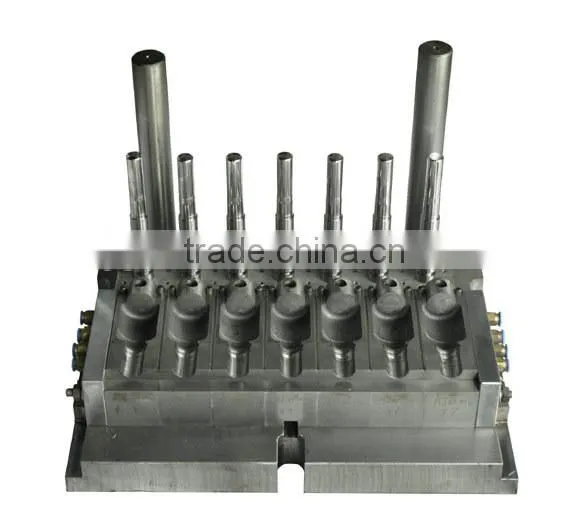

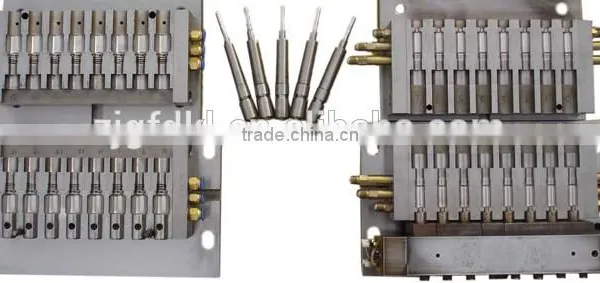

The structure of blow mould:
APPLICATION FIELD:
Pharmacy industry,Chemical industry, Food industry, Cosmetic industry...
PRODUCT FEATURES:
· Excellent machanical strength, impact-resisting and non-cracking.
· Bottle mouth and screw thread are of precise measurement, enable 100% close matching with the bottle cap.
· The weight of the product can be pre-setted.
· The measurement and thickness of the product can meet the requirement of the design without any deviation.
· The surface of the bottle mouth and body is bright and smoothness.
· No defleshing and trimming save the material cost.
· There is no joint seam at the bottom, and strength is improved accordingly.
· The joint seam on the bottle body is smooth.

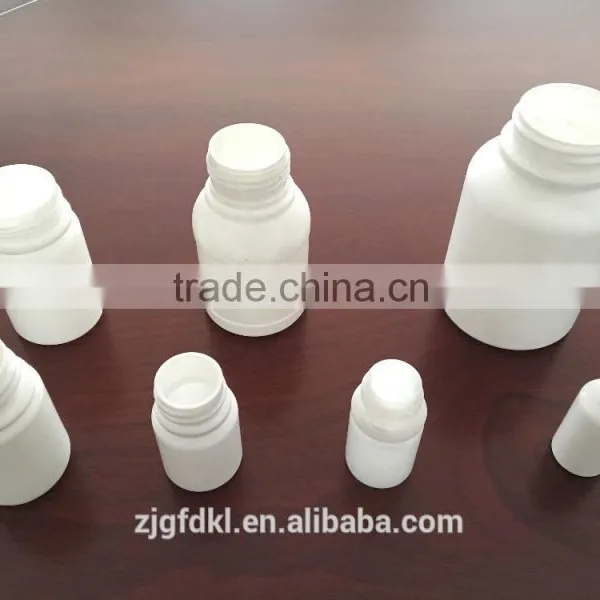

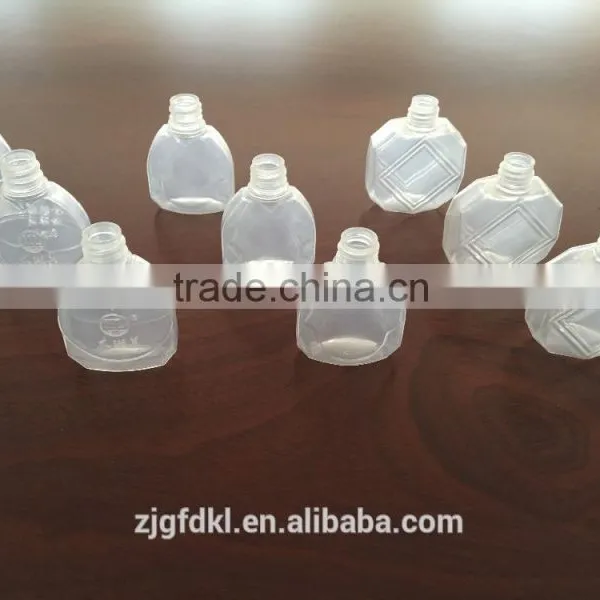

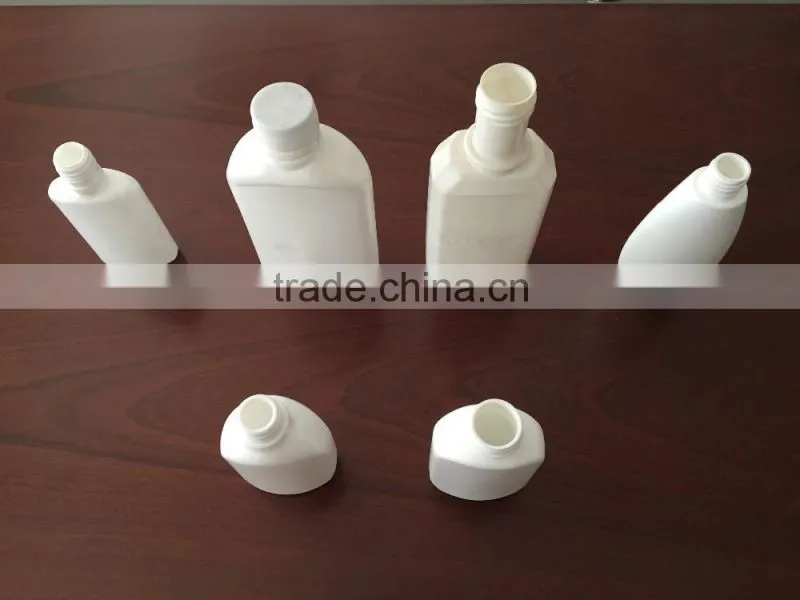

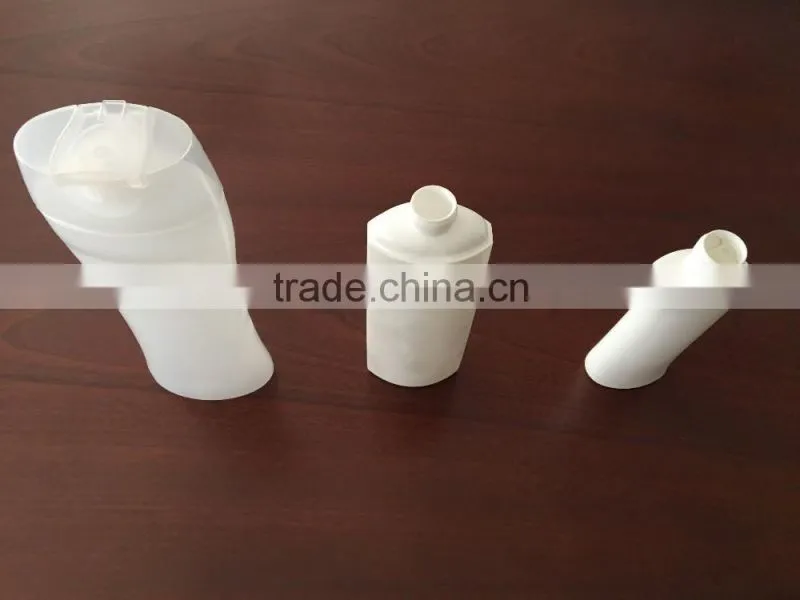

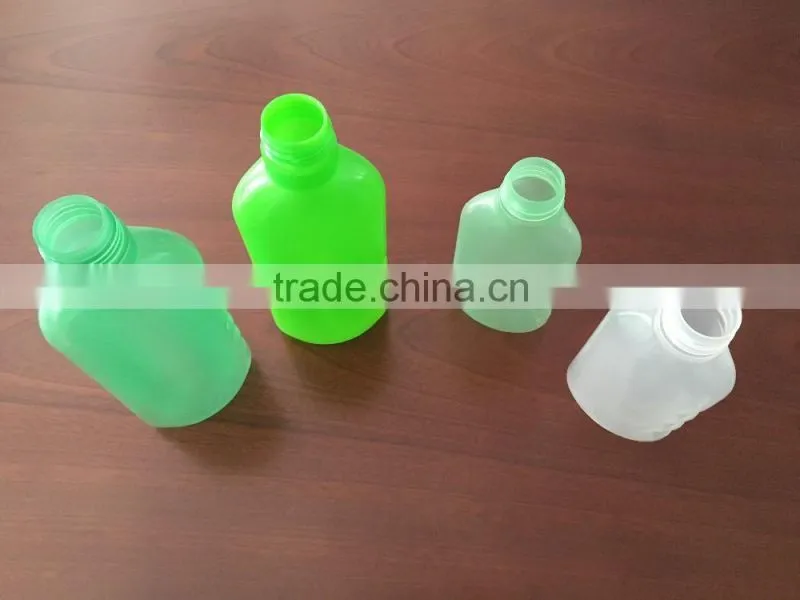

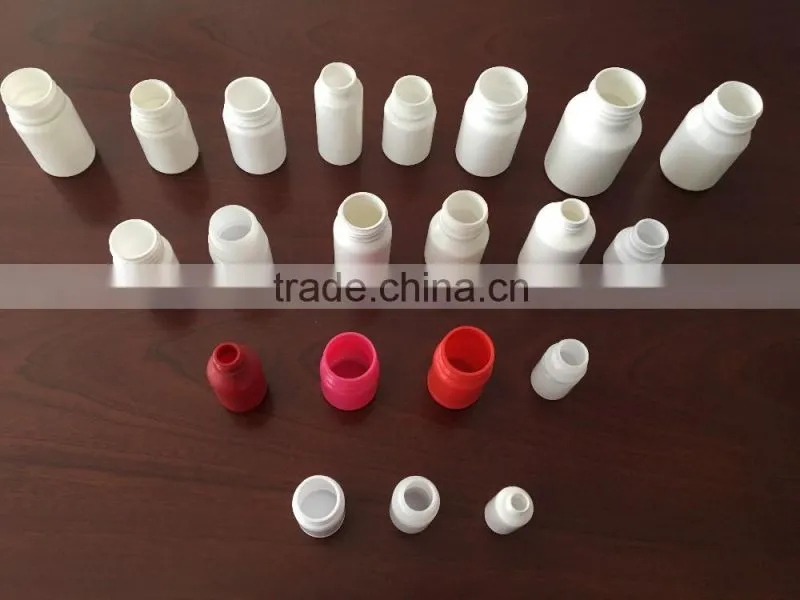

Picture of plastic containers:

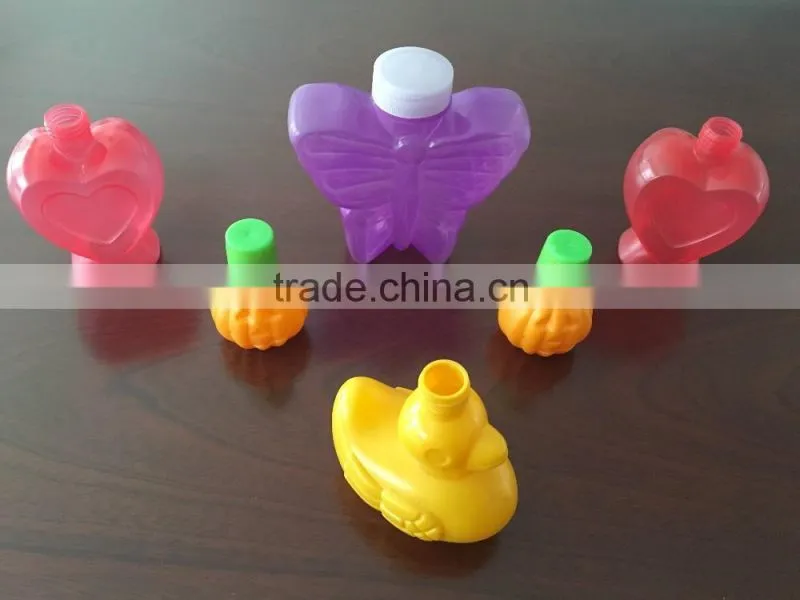

irregular shape plastic container mould

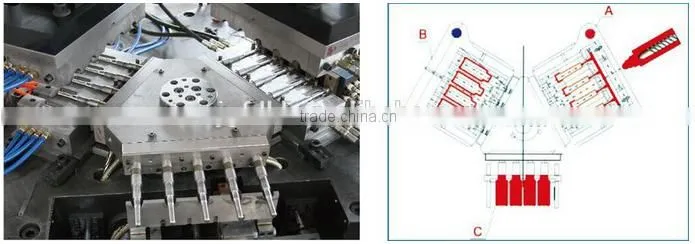

»Operating Principle
Station A:Preform injection
The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity.
Station B:Blow molding
Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles.
Station C:Stripper
The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles.
»Packaging & Shipping
machine packed with film and wooden pallet
mold packed by sea worthy wooden cases.

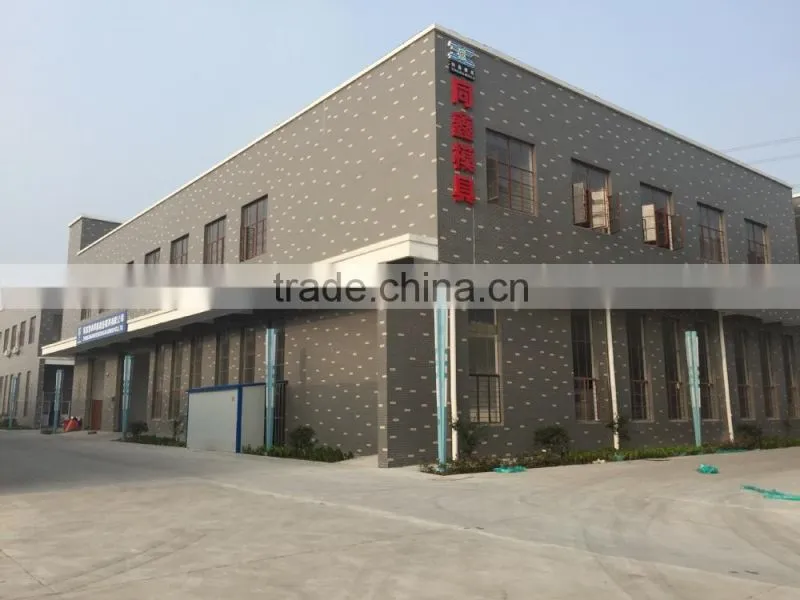

Our factory:
Q1:Are you a trading company or a manufactory?
A1:We own a factory ourselves,and we can assure the quality we manufactured.
Q2:What's your guarantee or the waranty of the quality of we buy your machines?
A2:We offer you high quality machines with high quality after-service.Also we have or one year warranty of the spare parts,free of the spare parts,free of charge.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians your technicians how to run the machines.
